BeFORe uSIng

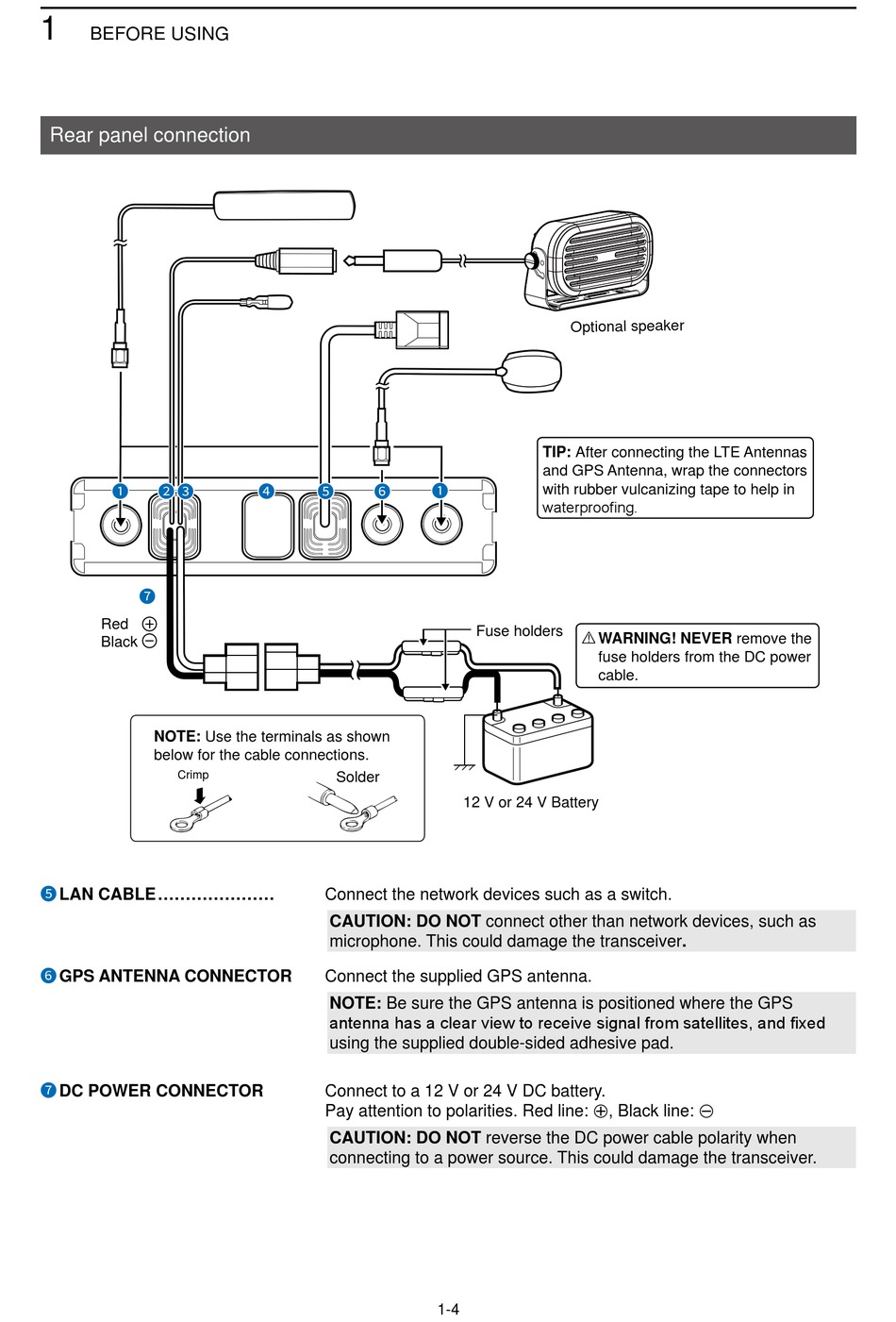

Rear panel connection
1 2 3
7
Red
Black
NOTE: use the terminals as shown
below for the cable connections.
Crimp
5
LAN CABLE .....................
6
GPS ANTENNA CONNECTOR
7
DC POWER CONNECTOR
4 5 6
Solder
Connect the network devices such as a switch.
CAUTION: DO NOT connect other than network devices, such as
microphone. This could damage the transceiver.
Connect the supplied gPS antenna.
NOTE: Be sure the gPS antenna is positioned where the gPS
antenna has a clear view to receive signal from satellites, and fi xed
using the supplied double-sided adhesive pad.
Connect to a 12 V or 24 V DC battery.
Pay attention to polarities. Red line: +, Black line:
CAUTION: DO NOT reverse the DC power cable polarity when
connecting to a power source. This could damage the transceiver.
TIP: After connecting the LTe Antennas
and gPS Antenna, wrap the connectors
with rubber vulcanizing tape to help in
1
waterproofi ng.
Fuse holders
R WARNING! NEVER remove the
fuse holders from the DC power
cable.
12 V or 24 V Battery
