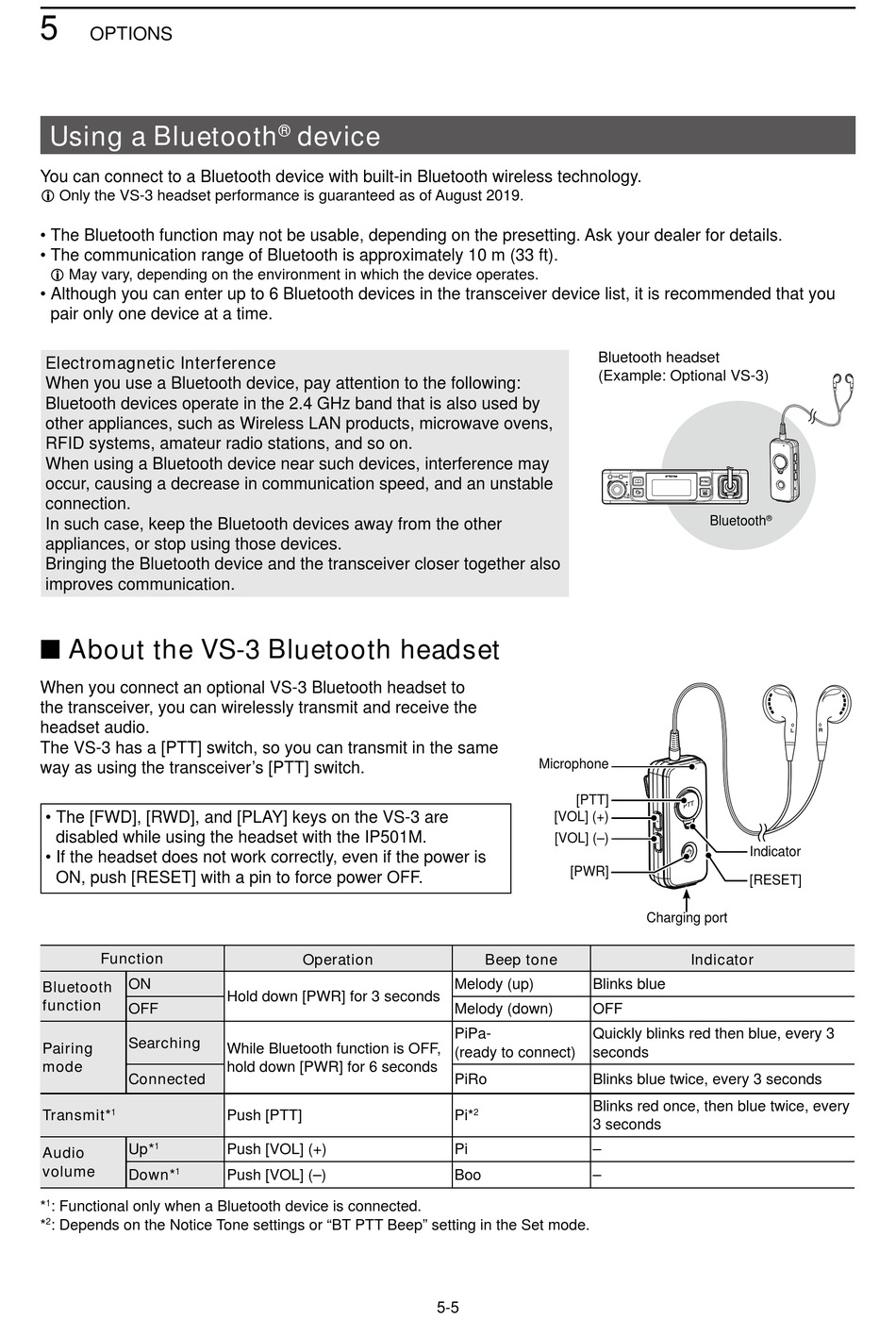

Icom IP501M Operating Manual page 32

5
OPTIONS
Using a Bluetooth
You can connect to a Bluetooth device with built-in Bluetooth wireless technology.
L Only the VS-3 headset performance is guaranteed as of August 2019.
• The Bluetooth function may not be usable, depending on the presetting. Ask your dealer for details.
• The communication range of Bluetooth is approximately 10 m (33 ft).
L May vary, depending on the environment in which the device operates.
• Although you can enter up to 6 Bluetooth devices in the transceiver device list, it is recommended that you
pair only one device at a time.
Electromagnetic Interference
When you use a Bluetooth device, pay attention to the following:
Bluetooth devices operate in the 2.4 GHz band that is also used by
other appliances, such as Wireless LAN products, microwave ovens,
RFID systems, amateur radio stations, and so on.
When using a Bluetooth device near such devices, interference may
occur, causing a decrease in communication speed, and an unstable
connection.
In such case, keep the Bluetooth devices away from the other
appliances, or stop using those devices.
Bringing the Bluetooth device and the transceiver closer together also
improves communication.
■ About the VS-3 Bluetooth headset
When you connect an optional VS-3 Bluetooth headset to
the transceiver, you can wirelessly transmit and receive the
headset audio.
The VS-3 has a [PTT] switch, so you can transmit in the same
way as using the transceiver's [PTT] switch.
• The [FWD], [RWD], and [PLAY] keys on the VS-3 are
disabled while using the headset with the IP501M.
• If the headset does not work correctly, even if the power is
ON, push [RESET] with a pin to force power OFF.
Function
ON
Bluetooth
function
OFF
Searching
Pairing
mode
Connected
Transmit*
1
Up*
1
Audio
volume
Down*
1
* : Functional only when a Bluetooth device is connected.
1
* : Depends on the Notice Tone settings or "BT PTT Beep" setting in the Set mode.
2
device
®
Operation
Hold down [PWR] for 3 seconds
While Bluetooth function is OFF,
hold down [PWR] for 6 seconds
Push [PTT]
Push [VOL] (+)
Push [VOL] (–)
Bluetooth headset
(Example: Optional VS-3)
Microphone
[PTT]
[VOL] (+)
[VOL] (–)
[PWR]
Beep tone
Melody (up) Blinks blue
Melody (down) OFF
PiPa- Quickly blinks red then blue, every 3
(ready to connect) seconds
PiRo Blinks blue twice, every 3 seconds
Blinks red once, then blue twice, every
Pi*
2
3 seconds
Pi –
Boo –
5-5
IP501M
Bluetooth
®
L
Indicator
[RESET]
Charging port
Indicator
