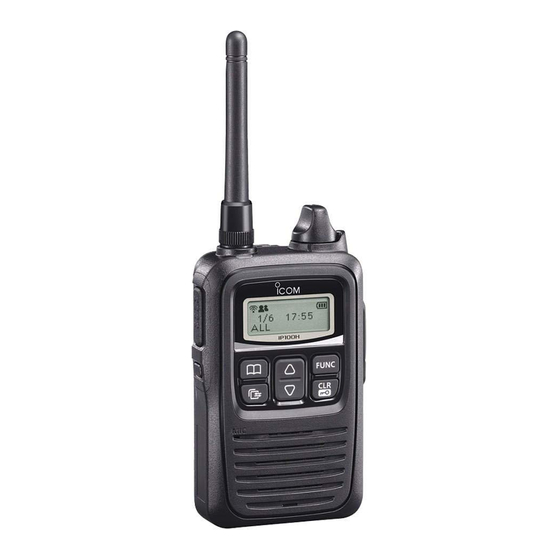

Icom ip100h Quick Manual
  1. Manuals
  2. Brands
  3. Icom Manuals
  4. Receiver
  5. IP100H
  6. Quick manual

Icom ip100h Quick Manual

Ip advanced radio system over an existing wireless lan
Hide thumbs Also See for ip100h:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Instructions
Quick Guide for IP Advanced Radio System over an Existing
Wireless LAN
This application describes all the programming required to configure a working IP Advanced
Radio System that is being connected to an existing customer's office WLAN (Wireless LAN)
Network.
Contents
What You Will Need ........................................................................................................................ 2
Customer's Current IP Settings ....................................................................................................... 2
Programming the IP1000C Controller ............................................................................................. 3
Creating Unit IDs in the IP1000C Web Interface ............................................................................ 5
Entering IP100H Radio information ............................................................................................ 5
Creating Group IDs in the IP1000C Web Interface ......................................................................... 9
Group ID Information .................................................................................................................. 9
Creating a Radio ID List in the IP1000C Web Interface................................................................. 10
ID List Information .................................................................................................................... 10
Talk Back Timer Setting ............................................................................................................. 13
Making a Group Call from your IP100H Radio .............................................................................. 14
©2014 Icom America Inc.
Page 1
Icom America, Inc.
12421 Willows Road NE
Kirkland, WA 98034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ip100h and is the answer not in the manual?

Questions and answers

Related Manuals for Icom ip100h

Summary of Contents for Icom ip100h

  • Page 1: Table Of Contents

    Creating Unit IDs in the IP1000C Web Interface ................5 Entering IP100H Radio information .................... 5 Programming the IP100H Radios with the CS-IP100H Cloning Software ........7 Creating Group IDs in the IP1000C Web Interface ................. 9 Group ID Information ........................9 Creating a Radio ID List in the IP1000C Web Interface..............

  • Page 2: What You Will Need

    • 1 IP1000C controller box • Several IP100H radios • Access point(s) – Either customer’s existing points or supplied by your Icom Dealer (Linksys access point used in this guide) • CS-IP100H cloning software, OPC-478UC (USB only) and the OPC2144 adapter •...

  • Page 3: Programming The Ip1000C Controller

    • A New Network SSID needs to be created that will refer to all devices on the IP Radio System. This SSID is designated to Icom IP Radio System only. We are using “Cisco80915” as the SSID in our example.
  • Page 4 6. Change the IP address for the IP1000C to match the Company’s Network IP Scheme. This will be determined by the Company’s IT Manager. 7. Click the DHCP Server tab and set it to Disable (Company’s Network Controller/Router will be DHCP Server). Click Apply. Page 4 ©2014 Icom America Inc.

  • Page 5: Creating Unit Ids In The Ip1000C Web Interface

    Creating Unit IDs in the IP1000C Web Interface Entering IP100H Radio information The following example shows programming for three IP100H radios. 1. Click on the Transceiver Settings tab and Transceiver Registration. 2. Enter the Transceiver 1 Radio Information as follows and click Apply.
  • Page 6 Icom America, Inc. 12421 Willows Road NE Kirkland, WA 98034 1. Enter the Transceiver 2 Radio Information as follows and Click Apply. Page 6 ©2014 Icom America Inc.

  • Page 7: Programming The Ip100H Radios With The Cs-Ip100H Cloning Software

    Transceiver Setting Entry List. Programming the IP100H Radios with the CS-IP100H Cloning Software 1. Open the CS-IP100H cloning software and connect your IP100H radio using the OPC- 478UC cloning cable and the OPC-2144 plug adapter. 2. Click Wireless LAN settings on the left side on the screen.
  • Page 8 6. Verify that the DHCP Client setting is set to Enable. This will allow the Customer’s controller to assign IP address to the IP100H radio automatically. 7. Click Provisioning Server Settings and enter your IP1000C IP address in IP address field (as assigned by the Company’s IT manager).

  • Page 9: Creating Group Ids In The Ip1000C Web Interface

    12. Click CLONE and Write to upload the file into the Radio. Repeat these steps for any additional radios. After rebooting your IP100H radios, the IP1000C will download all information to the radio and allow it to register. If they do not connect to the network and show “Setting up” or “Failed”, read through the previous steps and verify the information.

  • Page 10: Creating A Radio Id List In The Ip1000C Web Interface

    Radio Display. 1. Click Common Setting tab and then ID List. 1. Verify that the ID List Common Settings Number is set to “1”. This represents an ID profile number. Page 10 ©2014 Icom America Inc.
  • Page 11 All other Groups and Radios information should be entered into the IP1000C controller in a similar way. 8. After adding all Groups and Radio ID information, Verify that ID List Entries (setting Number1) shows all Group and Radios ID’s that you just added. Page 11 ©2014 Icom America Inc.
  • Page 12 9. Click Common Settings under Common Setting tab and Click Edit. 10. Select 1 in ID List box. 11. Click Apply. 12. Verify that ID list Number now shows “1”. 13. Click the Transceiver Settings tab and then Transceiver Settings. Page 12 ©2014 Icom America Inc.

  • Page 13: Talk Back Timer Setting

    Talk Back Timer Setting Important: The radio stays in Talk back mode for 5 seconds as a default. This timer can be changed in Common Settings under Talkback Timer. Page 13 ©2014 Icom America Inc.

  • Page 14: Making A Group Call From Your Ip100H Radio

    Icom America, Inc. 12421 Willows Road NE Kirkland, WA 98034 Important: Each IP100H radios must be REBOOTED after adding/deleting or changing any setting in the IP1000C controller. Making a Group/Individual Call from your IP100H Radio Page 14 ©2014 Icom America Inc.
