Icom IP501M Installation Manual

Precautions When Installing In A Vehicle
When installing this device into a car make sure that place you position the
device does not interfere with driving operations.
Never install it in a place that will obstruct your view.
Do not attach it to the side glass as it may cause injury during a traffic accident.
Do not interfere with the airbag system.
Do not twist or entangle the wires during installation.
We recommend for installation of the LTE antenna and other wiring to consult
your dealership.
Always test to make sure all turn signals, wipers etc work after installing this in
the automobile
Install coaxial cables, at least 20 cm away from radio interference-aware devices
so to not affect the computer (control unit) of the car.
IP ADVANCED RADIO SYSTEM
ip501m

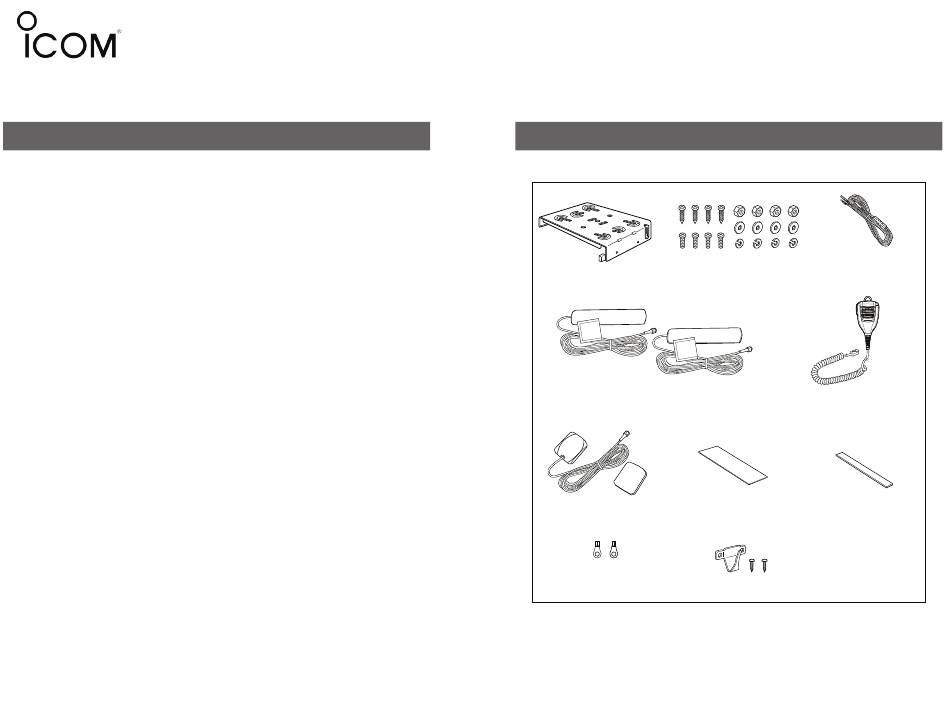

What is Needed for Installation
Screws, nuts, washers
Bracket
for the Bracket
LTE antennas shown with cables
GPS antenna Protective Sheet
(Cable - 5m)
Terminal Crimp
(For DC power cabe: R2-6) Mic Hanger
Antenna Installation Guide
DC Power Cable - 3m
Speaker Mic HM-241
Sponge
(Use with Bracket)
1
