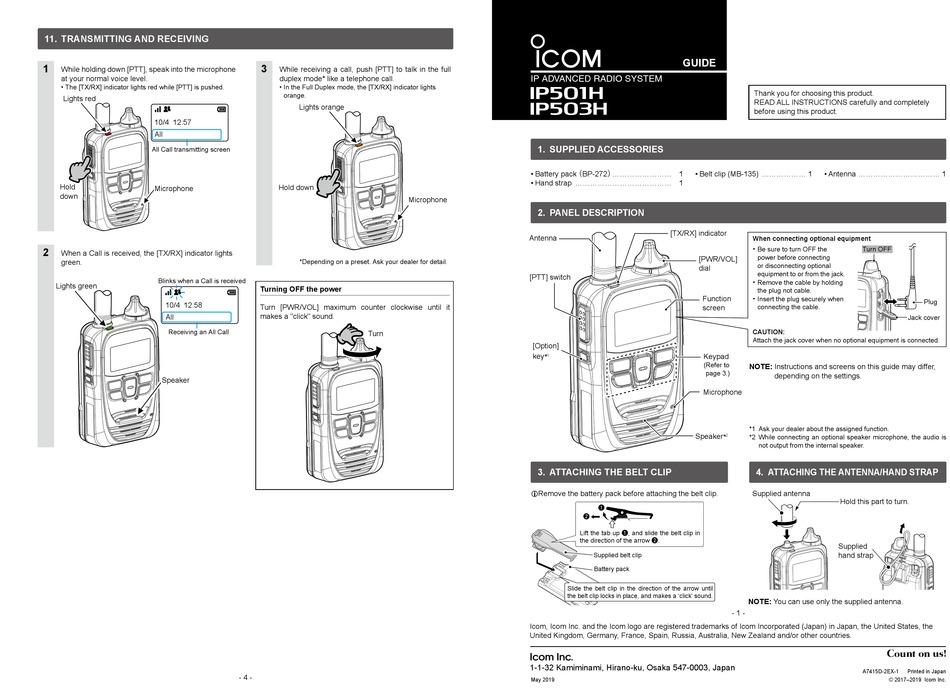

11. TRANSMITTING AND RECEIVING
1
While holding down [PTT], speak into the microphone
at your normal voice level.
• The [TX/RX] indicator lights red while [PTT] is pushed.
Lights red
10/4 12:57
All
All Call transmitting screen
Hold
Microphone
down
2
When a Call is received, the [TX/RX] indicator lights
green.
Blinks when a Call is received
Lights green
10/4 12:58
All
Receiving an All Call
Speaker
3
While receiving a call, push [PTT] to talk in the full
duplex mode* like a telephone call.
• In the Full Duplex mode, the [TX/RX] indicator lights
orange.
Lights orange
Hold down
Microphone
* Depending on a preset. Ask your dealer for detail.
Turning OFF the power
Turn [PWR/VOL] maximum counter clockwise until it
makes a "click" sound.
Turn
- 4 -
GUIDE

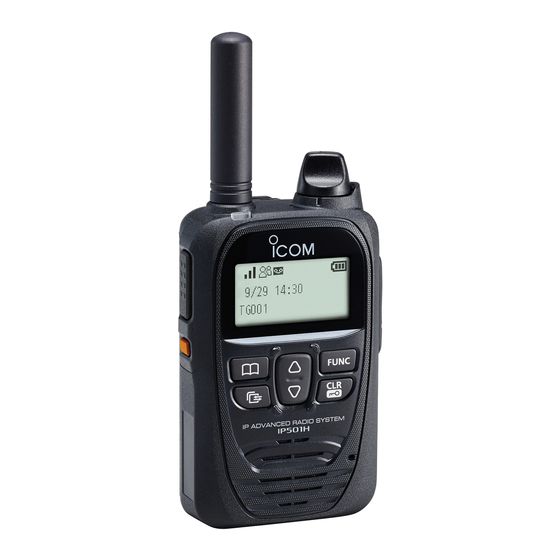

IP ADVANCED RADIO SYSTEM
IP501H
IP503H
1. SUPPLIED ACCESSORIES
• Battery pack （BP-272） ........................ 1
• Belt clip (MB-135) .................. 1
• Hand strap ....................................... 1
2. PANEL DESCRIPTION
[TX/RX] indicator
Antenna
[PWR/VOL]
dial
[PTT] switch
Function
screen
[Option]
key * Keypad
1
( Refer to
page 3.)
Microphone
Speaker *
3. ATTACHING THE BELT CLIP
LRemove the battery pack before attaching the belt clip.
q
w
Lift the tab up q, and slide the belt clip in
the direction of the arrow w.
Supplied belt clip
Battery pack
Slide the belt clip in the direction of the arrow until
the belt clip locks in place, and makes a 'click' sound.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
May 2019
Thank you for choosing this product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.
• Antenna ................................. 1
When connecting optional equipment
• Be sure to turn OFF the
Turn OFF
power before connecting
or disconnecting optional
equipment to or from the jack.
• Remove the cable by holding
the plug not cable.
• Insert the plug securely when
connecting the cable.
Jack cover
CAUTION:
Attach the jack cover when no optional equipment is connected.
NOTE: Instructions and screens on this guide may differ,
depending on the settings.
*1 Ask your dealer about the assigned function.
2 *2 While connecting an optional speaker microphone, the audio is
not output from the internal speaker.
4. ATTACHING THE ANTENNA/HAND STRAP
Supplied antenna
Hold this part to turn.
Supplied
hand strap
NOTE: You can use only the supplied antenna.
- 1 -
A7415D-2EX-1 Printed in Japan
© 2017–2019 Icom Inc.
Plug
