BeFORe uSIng

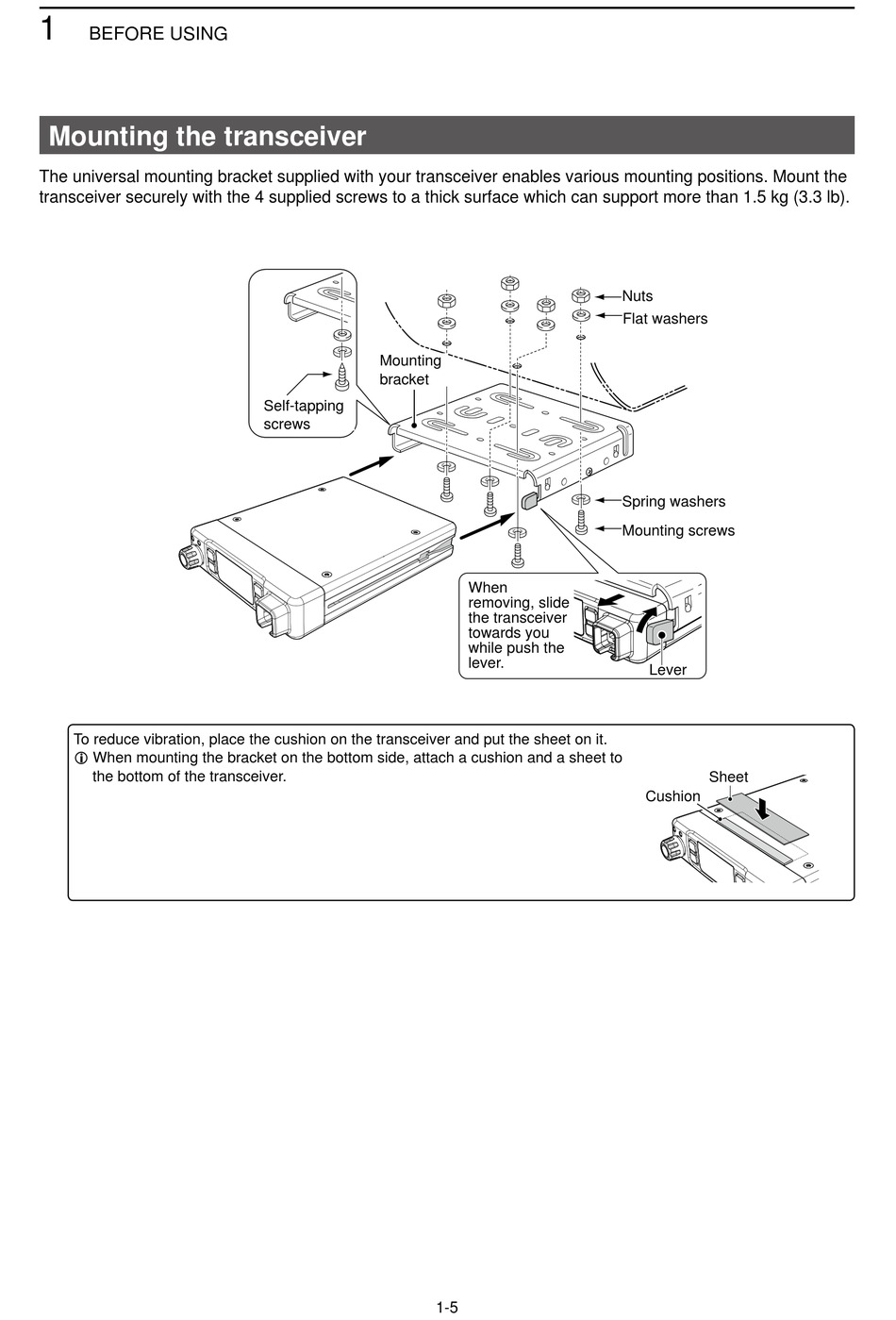

Mounting the transceiver

The universal mounting bracket supplied with your transceiver enables various mounting positions. Mount the
transceiver securely with the 4 supplied screws to a thick surface which can support more than 1.5 kg (3.3 lb).
To reduce vibration, place the cushion on the transceiver and put the sheet on it.
L When mounting the bracket on the bottom side, attach a cushion and a sheet to
the bottom of the transceiver.
Mounting
bracket
Self-tapping
screws
When
removing, slide
the transceiver
towards you
while push the
lever.
1-5
nuts
Flat washers
Spring washers
Mounting screws
Lever
Sheet
Cushion
