5
OPTIONS

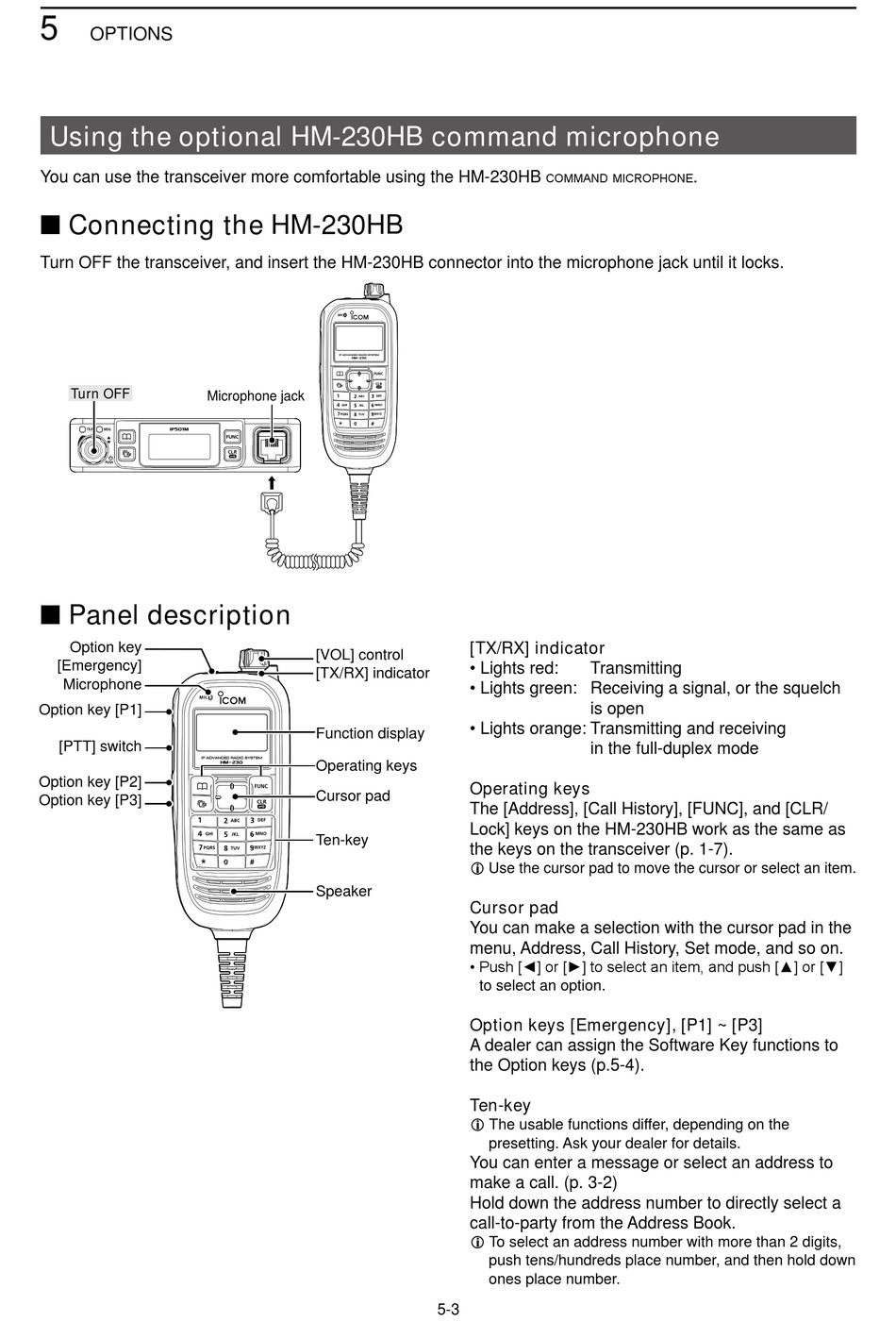

Using the optional HM-230HB command microphone
You can use the transceiver more comfortable using the HM-230HB
■ Connecting the HM-230HB
Turn OFF the transceiver, and insert the HM-230HB connector into the microphone jack until it locks.
Turn OFF
Microphone jack
IP501M
■ Panel description
Option key
[Emergency]
Microphone
Option key [P1]
[PTT] switch
Option key [P2]
Option key [P3]
[TX/RX] indicator
[VOL] control
• Lights red:
[TX/RX] indicator
• Lights green: Receiving a signal, or the squelch
• Lights orange: Transmitting and receiving
Function display
Operating keys
Operating keys
Cursor pad
The [Address], [Call History], [FUNC], and [CLR/
Lock] keys on the HM-230HB work as the same as
Ten-key
the keys on the transceiver (p. 1-7).
L Use the cursor pad to move the cursor or select an item.
Speaker
Cursor pad
You can make a selection with the cursor pad in the
menu, Address, Call History, Set mode, and so on.
• Push [◄] or [►] to select an item, and push [▲] or [▼]
to select an option.
Option keys [Emergency], [P1] ~ [P3]
A dealer can assign the Software Key functions to
the Option keys (p.5-4).
Ten-key
L The usable functions differ, depending on the
You can enter a message or select an address to
make a call. (p. 3-2)
Hold down the address number to directly select a
call-to-party from the Address Book.
L To select an address number with more than 2 digits,
5-3
command microphone
Transmitting
is open
in the full-duplex mode
presetting. Ask your dealer for details.
push tens/hundreds place number, and then hold down
ones place number.
.
