Move the Plates right and left until the Plates are in the
2.
desired position.
When the Plates are in the desired position, turn the Thumb
3.
Screws at the bottom of the plates clockwise to lock the
Plates in place.
To move the Plates up or down, turn the Thumb Screws at
4.
the top of the Plates counterclockwise or clockwise.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

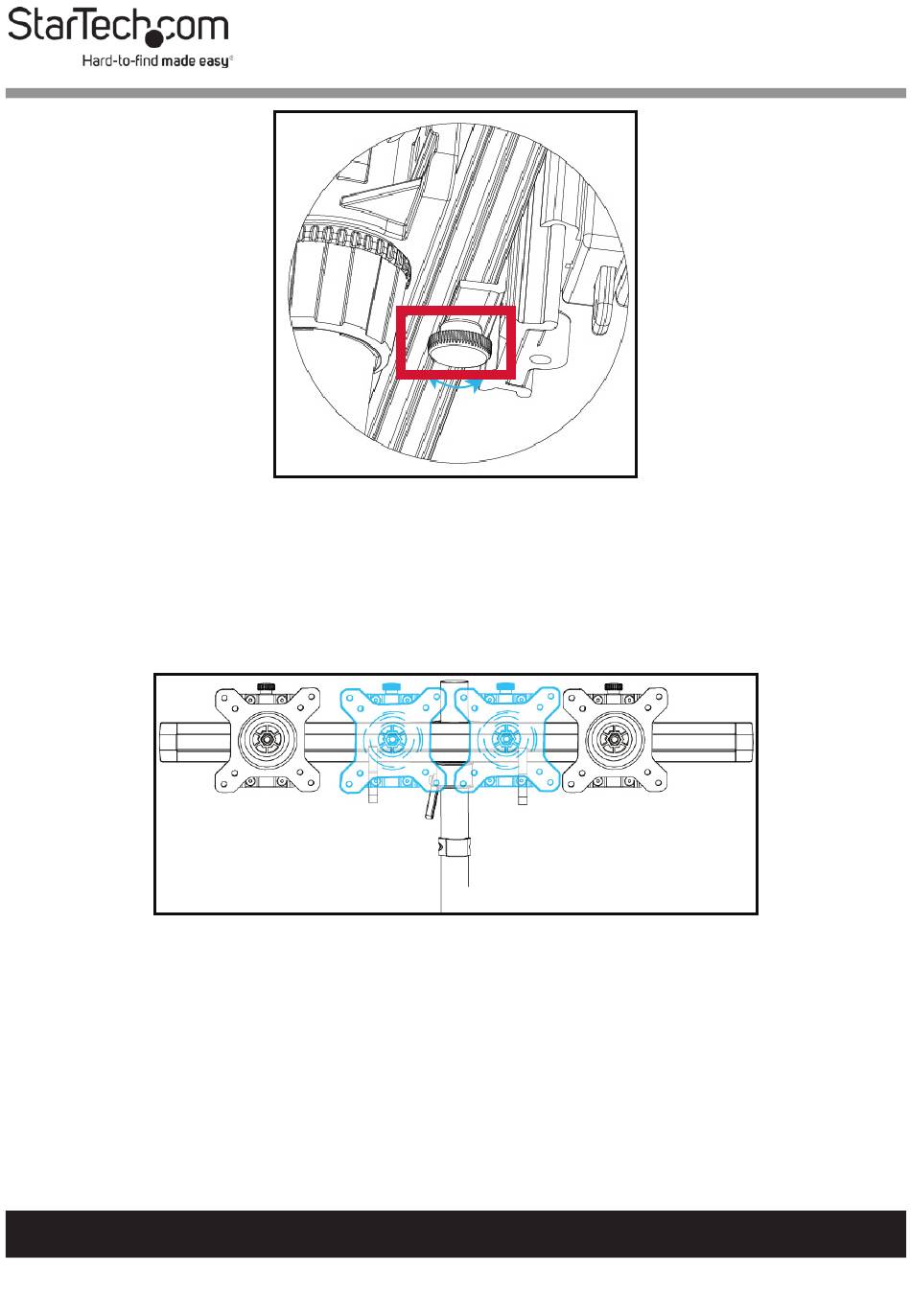

Loosening the Plates
Moving the Plates Left and Right
15
