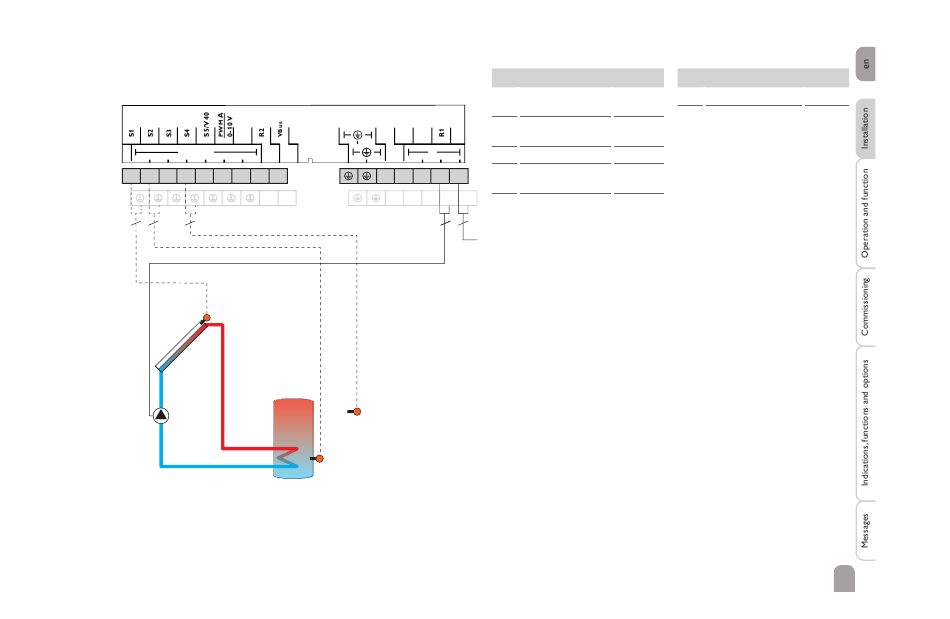

System 3: Standard solar system with 1 store
Sensors
GND R2
VBus
1 2 3 4 5 6 7 8 9
10 11
2 2 2
S1
R1
S2
S1
Relais
S2
L
N
S3
S4
R1 L
N N N N
V40
3 3
Mains
The controller calculates the temperature difference between collector sensor
S1 and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference, the pump (R1) will be switched on and the store
will be loaded until the switch-off temperature difference or the maximum store
temperature is reached.
Preheating of the washing machine inlet (R2) can be carried out with a thermostat
function. If the value at S4 reaches the switch-on temperature for the washing
machine function, the function will be switched on and the temperature will be
maintained at the desired value for the adjusted time by means of the valve. After
the adjusted time has elapsed, the relay will be deactivated for the same duration.
S4
Sensors
Temperature 1 / GND R1
collector
R2
Temperature store 2 / GND
base
Free 3 / GND
Temperature washing 4 / GND
machine inlet
Free V40 / GND
Relay
Solar pump R1 / N / PE
Valve washing machine R2 / R2
