Balance Values; Commissioning - Resol BASIC controller Manual For The Specialised Craftsman

6

Balance values

The balance value menu indicates the balance values.
Display Description
h R1 Operating hours relay 1
h R2 Operating hours relay 2
DAYS Operating days of the controller (cannot be set back to zero)
MAXS1 Maximum temperature sensor 1
MINS1 Minimum temperature sensor 1
MAXS2 Maximum temperature sensor 2
MINS2 Minimum temperature sensor 2
MAXS3 Maximum temperature sensor 3
MINS3 Minimum temperature sensor 3
MAXS4 Maximum temperature sensor 4
MIN S4 Maximum temperature sensor 4
7

Commissioning

When the hydraulic system is filled and ready for operation, connect the controller
to the mains.
The controller runs an initialisation phase in which all symbols are indicated in the
display. The Lightwheel ® flashes red.
When the controller is commissioned or when it is reset, it will run a commis-
sioning menu after the initialisation phase. The commissioning menu leads the user
through the most important adjustment channels needed for operating the system.

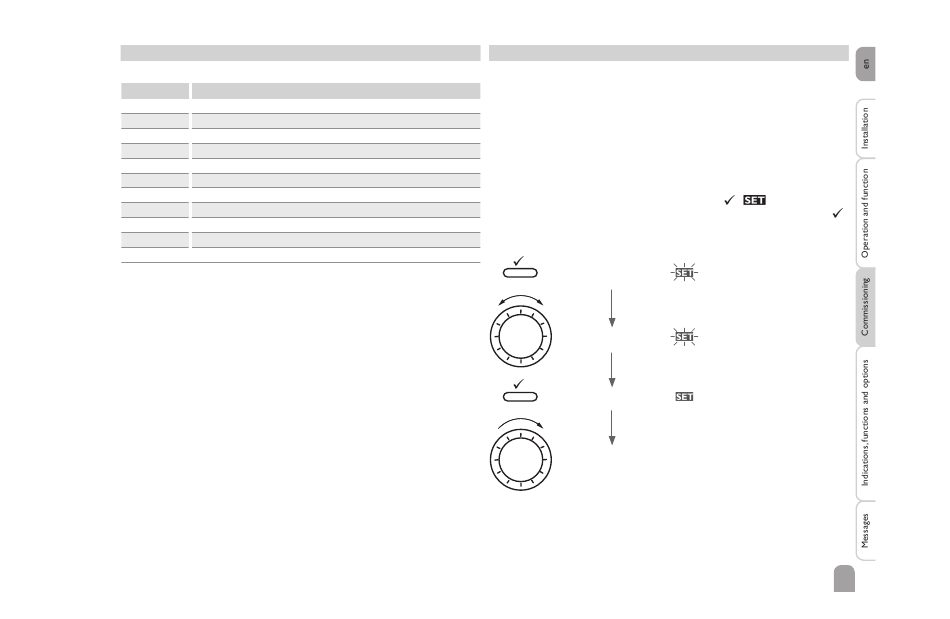

Commissioning menu
The commissioning menu consists of the channels described in the following. In
order to make an adjustment, press the right button (
the adjustment can be made. Confirm the adjustment with the right button (
Turn the Lightwheel ® , the next channel will appear on the screen.
Operation
Adjustment mode
Changing a value
Confirming a value
to the next parameter
). starts flashing and
).
flashing
flashing
not flashing
15
