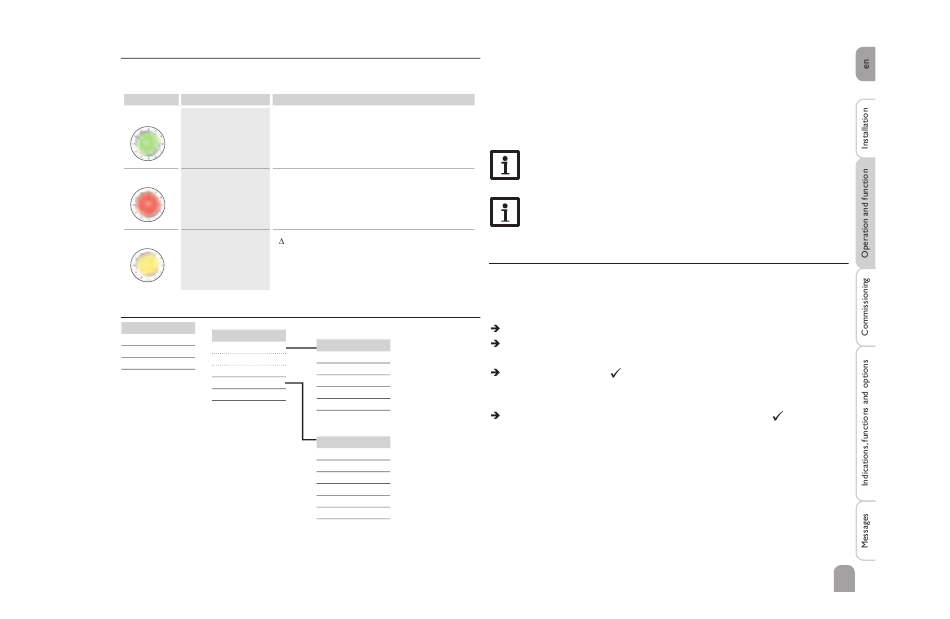

3.3 Control lamp

The controller is equipped with a multicolour LED in the centre of the Lightwheel
indicating the following states:
Colour Permanently shown Flashing
Green Everything OK Manual mode: at least one relay HAND ON / min-
imum speed / maximum speed
Red Sensor line break, sensor short circuit, fl ow rate
monitoring, overpressure, low pressure
Yellow Holiday function T too high, night circulation, FL/RE interchanged,
active store emergency temperature exceeded

3.4 Menu structure

Status level
Menu level
TCOL
BALAN
TSTB
Adjustment level
TSTT
SYS
...
LOAD
COL
...
The menu structure of the controller consists of 2 levels: the status level and the
menu level.
® , The status level consists of different display channels which indicate display values
and messages.
The menu level consists of the balance value menu and several menu items each of
which consist of sub-menus and adjustment channels.In order to activate or deac-
tivate a function, it must be selected in the menu level. The display changes to the
adjustment menu in which all adjustments required can be carried out.

3.5 Selecting menu points and adjusting values

During normal operation of the controller, the display shows the status level with
the indication channels. If no button is pressed for 1 min, the display illumination
goes out. If no button is pressed for further 3 min, the display indicates the status
level.
Balance values
h R1 Accessing the adjustment level:
h R2
DAYS
The display changes to the adjustment level. All menus contain adjustment channels
MAXS1
and are marked with PUSH below the the menu item.
MINS1
...
Confi guration
DT O
DT F
DT S
S SET
S MAX
SMAXS
...
Note
Some of the menu items depend on the selected system and the adjusted
options. Therefore, they are only displayed if they are available.
Note
The abstract from the menu structure is for information on the structure
of the controller menu and is therefore not complete.
Press any key to reactivate the display illumination.
In order to scroll through the display channels, turn the Lightwheel
Press the right button ( ) for approx. 3 s.
In order to access the desired menu, press the right button (
®
.
).
