Resol BASIC controller Manual For The Specialised Craftsman page 8

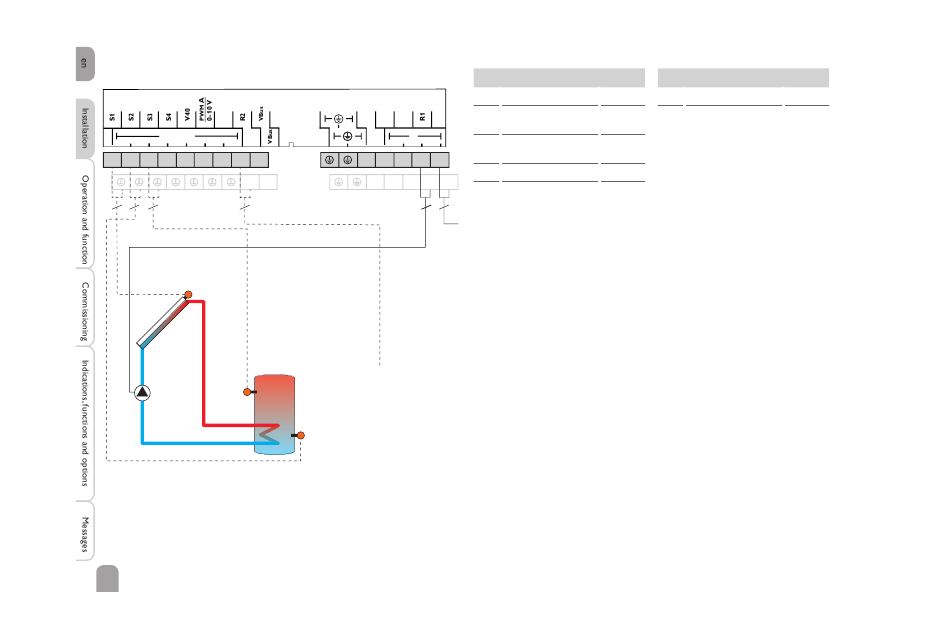

System 2: Solar system with 1 store and afterheating
Sensors
GND R2
1 2 3 4 5 6 7 8 9
10 11
2 2 2 2
S1
S3
R1
8
S1
Relais
S2
L
N
S3
R1 L
S4
N N N N
V40
3 3
Mains
The controller calculates the temperature difference between collector sensor
S1 and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference, the pump (R1) will be switched on and the store
will be loaded until the switch-off temperature difference or the maximum store
temperature is reached.
Afterheating (R2) can be carried out with a thermostat function (S3). If the value
at S3 reaches the switch-on temperature for the afterheating, the relay is switched
on. If the value exceeds the switch-off temperature for the afterheating, the relay
is switched off again.
R2
S2
Sensors
Temperature collector 1 / GND R1
Temperature store 2 / GND R2
base
Temperature 3 / GND
afterheating
Free 4 / GND
Free 5 / GND
Relay
Solar pump R1 / N / PE
Afterheating R2 / R2
