4.1 System screen

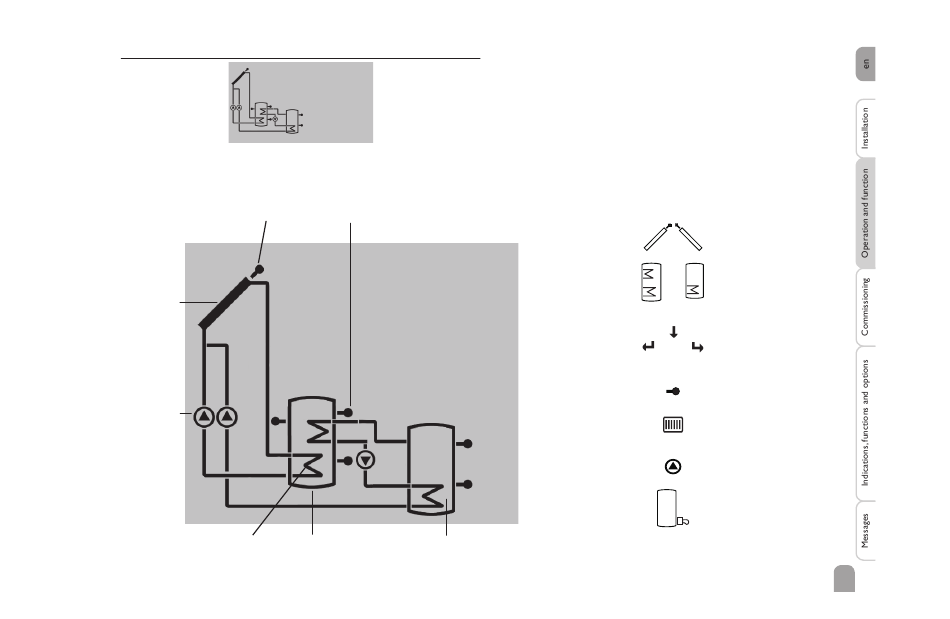

The system selected is indicated in the System-Monitoring-Display. It consists of
several system component symbols which are – depending on the current status of
the system – either flashing, permanently shown or hidden.
Sensor
Collector 1
Pumps
Store heat exchanger Store
Sensor
Store 2
Collectors
with collector sensor
Store 1 and 2
with heat exchanger
3-port valve
Only the flow direction or
current switching position
is indicated.
Temperature sensor
Heating circuit
(return preheating)
Pump
Afterheating
with burner symbol
