2.5 Systems

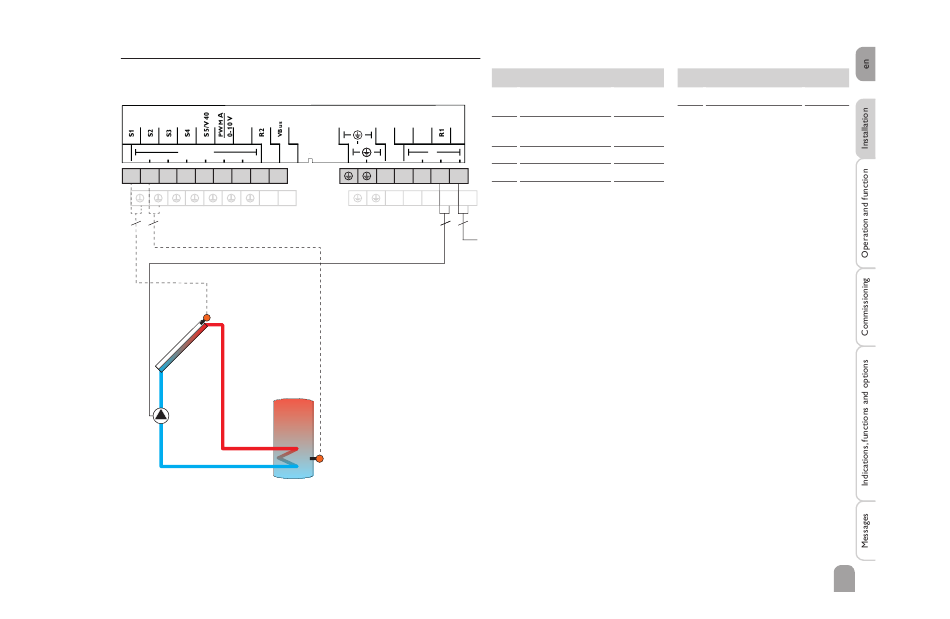

System 1: Standard solar system with 1 store
Sensors
GND R2
VBus
1 2 3 4 5 6 7 8 9
10 11
2 2
S1
R1
S2
Sensors
S1 Temperature
collector
Relais
S2 Temperature store
L
base
N
S3 Free
S4 Free
R1 L
V40 Free
N N N N
3 3
Mains
The controller calculates the temperature difference between collector sensor
S1 and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference, the pump (R1) will be switched on and the store
will be loaded until the switch-off temperature difference or the maximum store
temperature is reached.
Relay
1 / GND R1 Solar pump
R2 Free
2 / GND
3 / GND
4 / GND
V40 / GND
R1 / N / PE
R2 / R2
