Figure 22 shows the AKD WorkBench parameters page.
11. Activate the software enable on the drive by clicking the Enable button on the AKD
Overview page or on the toolbar. Figure 17 shows the location of the Enable button.
12. Save all configuration changes to the drive by clicking the Save to Drive toolbar button
shown in Figure 17.

Step 6: Enable and Test the Drive using LabVIEW

Use the Interactive Test Panel to test and debug your motion system and configuration settings
on the selected axis. With the Interactive Test Panel you can perform a simple straight-line
move, monitor feedback position and position error information, I/O and move status
information, change move constraints, get information about software errors and faults,
and view position or velocity plots of the move.
Caution
revolutions as described in the preceeding step. If the motor is already connected to
a mechanical system, ensure that moving the motor shaft for 10 revolutions at
1 revolution per second will not damage any components.
Getting Started with NI 9514/16 Modules and AKD Servo Drives | © National Instruments | 27

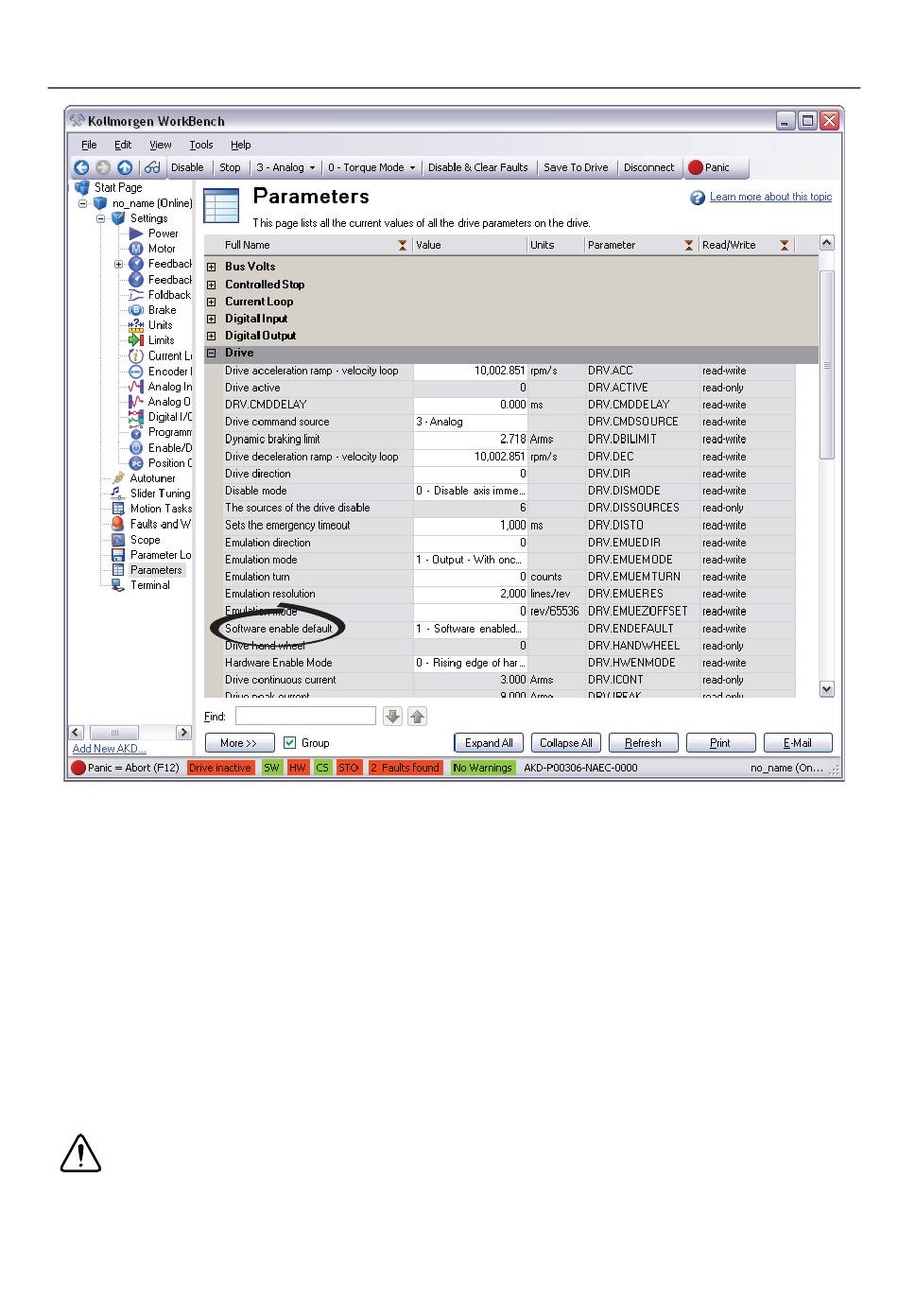

Figure 22. AKD WorkBench Parameters Page
The test parameters in this steps assume that the units have been scaled to
