accuracy. If you select a different value for Resolution, remember to update the

Counts Per revolution setting in the Axis Configuration dialog box.

Set the Index Offset to 0.

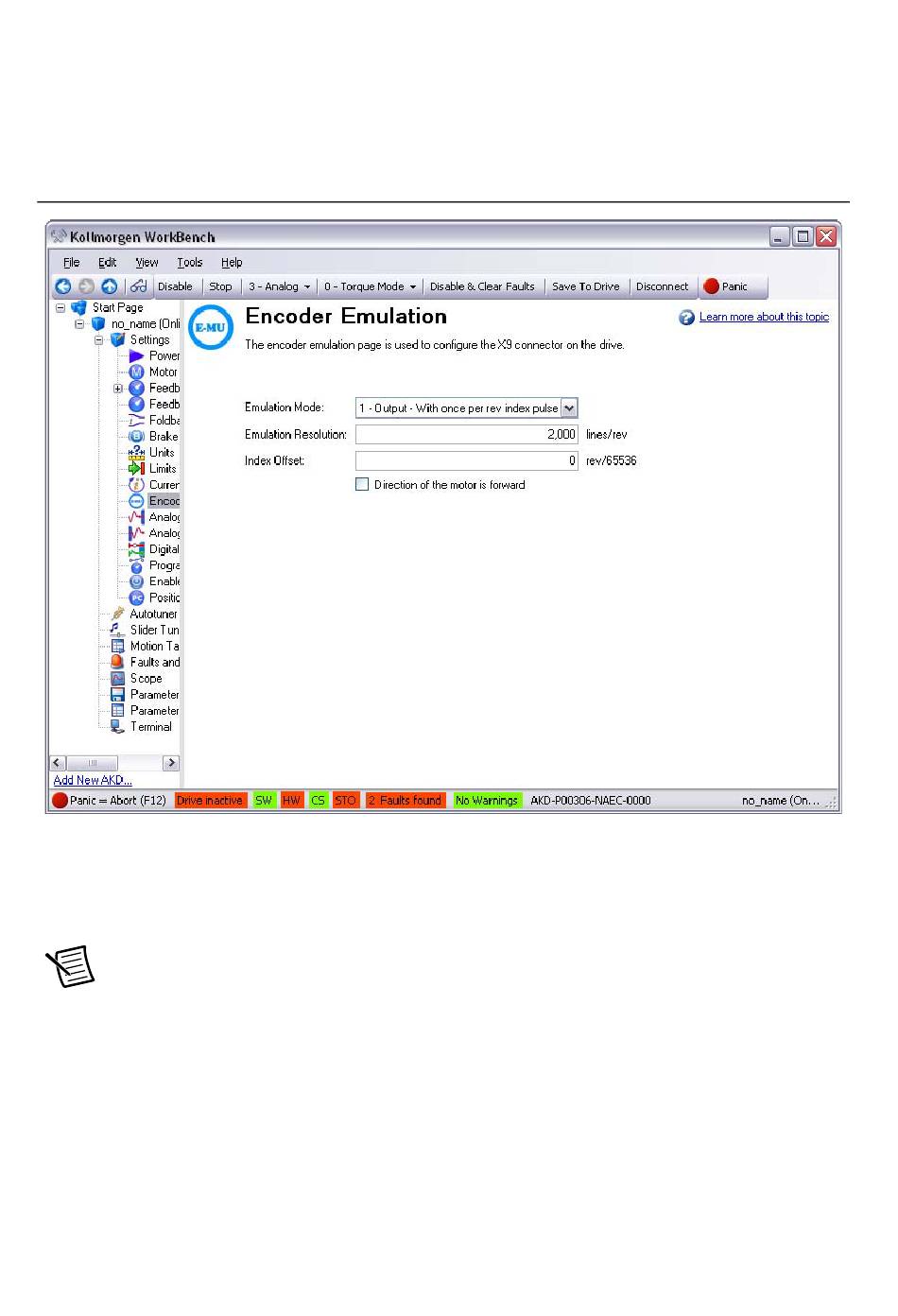

Figure 19 shows the AKD WorkBench Encoder Emulation page.

Figure 19. AKD WorkBench Encoder Emulation Page

Configure the analog input command scaling.

Expand the Settings tree item and open the Motor page.

Write down the motor Continuous Current value.

Motor continuous current is in Arms.

Note

24 | ni.com | Getting Started with NI 9514/16 Modules and AKD Servo Drives
