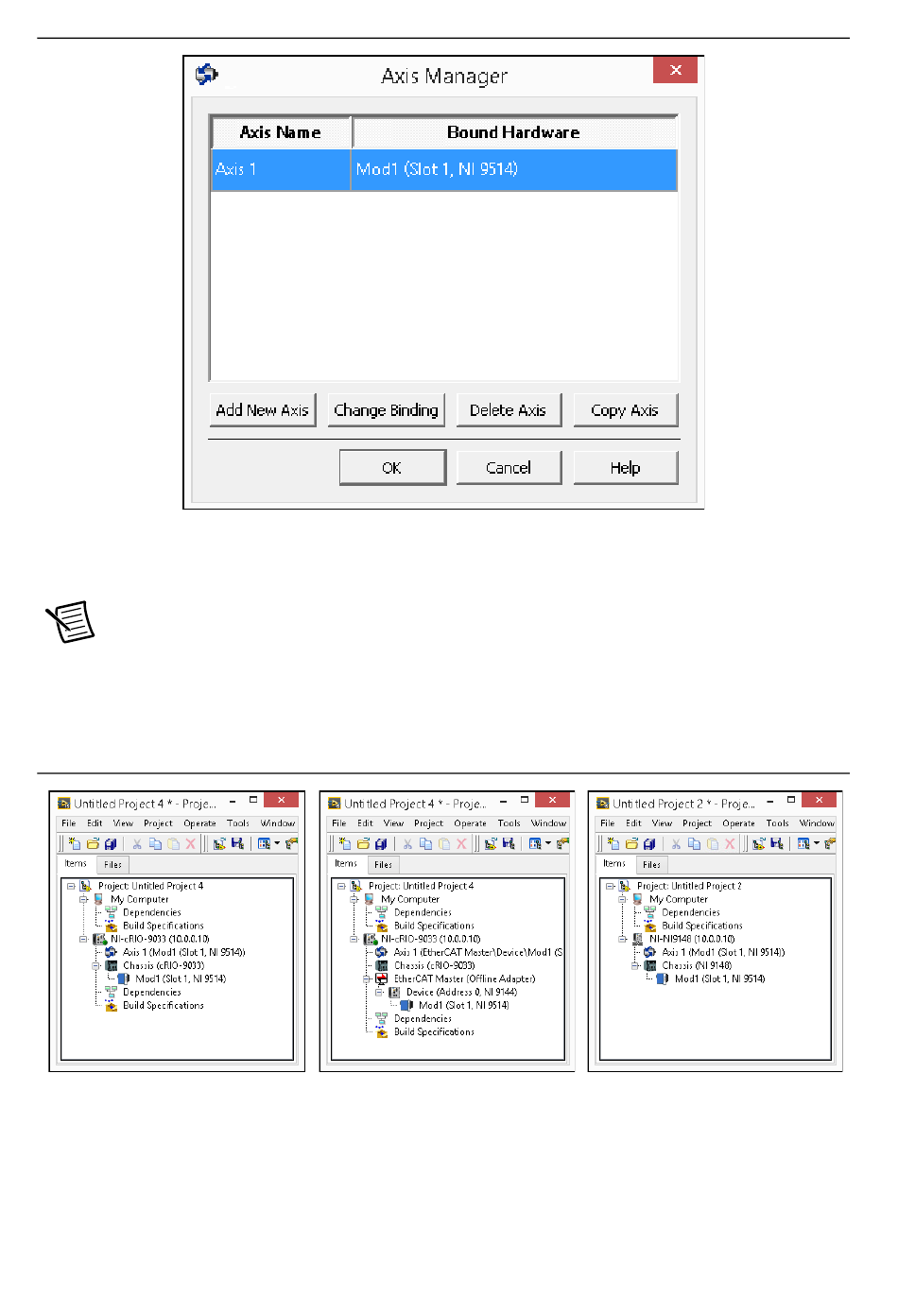

Figure 12. Axis Manager Dialog Box

Click OK to close the Axis Manager dialog box. The new axis is added to the Project

Explorer window.

You cannot associate more than one axis with the same C Series module.

Note

When you have finished these steps your LabVIEW project should look similar to the

image in Figure 13.

Figure 13. Project Explorer Windows with Modules in Scan Interface Mode

16 | ni.com | Getting Started with NI 9514/16 Modules and AKD Servo Drives
