National Instruments C Series Getting Started page 19

elements of the system, use the Gain Tuning Panel to tune the control loop settings
and determine the relative stability of the servo axis. Refer to the Using the Gain
Tuning Panel topic in the NI SoftMotion Module book of the LabVIEW Help for
detailed information about the Gain Tuning Panel and servo system tuning
instructions.
6. Open the Encoder page.
In the Active State section set the Line State for A, B, and Index to High.
•
In the Index Reference Criteria section set the Line State for A and B to
•
Active.
Type revolution in the Units text box.
•
• Set the Counts per Unit to 8,000. This setting is the encoder resolution in
quadrature counts per revolution and must correspond to the AKD WorkBench
emulated encoder output Resolution setting in lines per revolution multiplied
by four. You may want to choose a different resolution depending on your
application needs. Changing this setting allows moves to be commanded in units
of revolutions per second.
You configure the emulated encoder output Resolution setting in
Note
Install AKD WorkBench and Configure the Drive
When you are finished the Encoder Settings page will look similar to Figure 15.
7. Configure any additional I/O settings according to your system requirements.
8. Click OK to close the Axis Configuration dialog box.
Right-click the controller item in the Project Explorer window and select Deploy All to
9.
deploy the axis information.
10. Select File»Save Project to save the project.
Getting Started with NI 9514/16 Modules and AKD Servo Drives | © National Instruments | 19

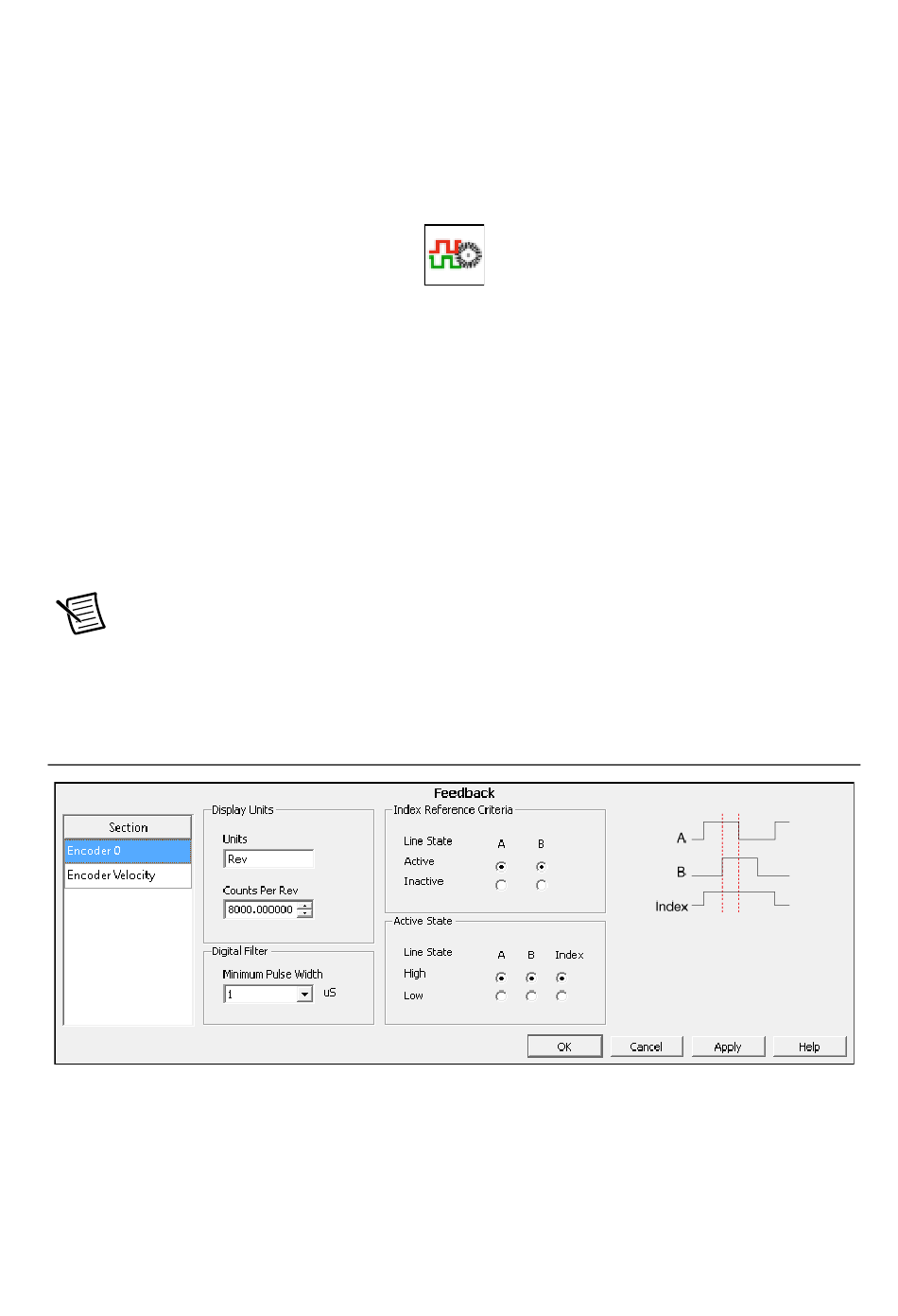

Figure 15. Axis Configuration Encoder Page
section.
Step 5:
