GETTING STARTED GUIDE

NI 9997

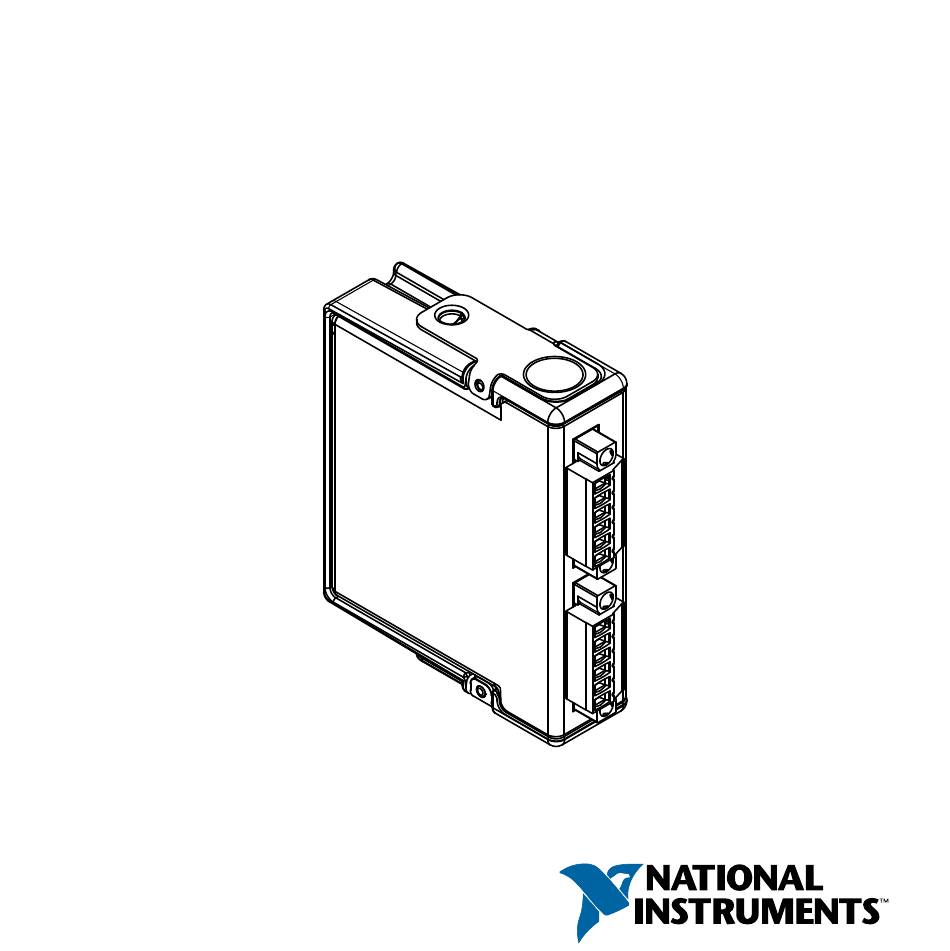

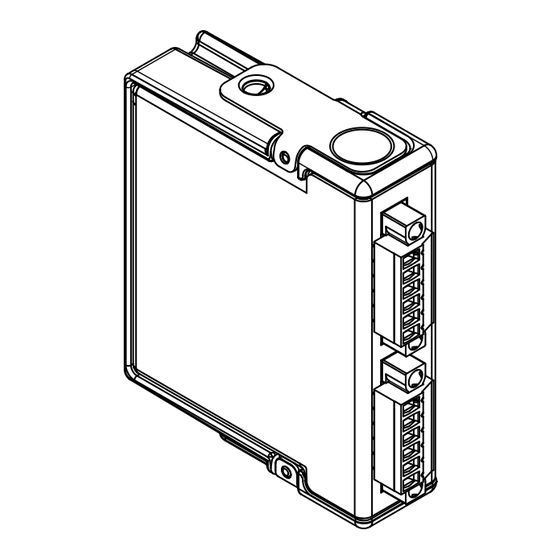

2-Channel, 11 A, C Series Busbar Module

Table of Contents

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments C Series

Page 1 GETTING STARTED GUIDE NI 9997 2-Channel, 11 A, C Series Busbar Module...
Page 2: Safety Guidelines
This document explains how to connect to the NI 9997. Before you begin, complete the software and Note hardware installation procedures in your chassis documentation. The guidelines in this document are specific to Note the NI 9997. The other components in the system might not meet the same safety ratings.
Page 3: Safety Guidelines For Hazardous Voltages
LIVE (>42.4 Vpk/60 VDC), you must ensure that devices and circuits connected to the module are properly insulated from human contact. You must use the 6-position connector backshell kit (783804-01) NI 9997 Getting Started Guide | © National Instruments | 3...
Page 4: Safety Guidelines For Hazardous Locations
connector backshell kit to ensure that the terminals are not accessible. Safety Guidelines for Hazardous Locations The NI 9997 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations;...
Page 5 Pollution Degree 2, as defined in IEC 60664-1. The system shall be mounted in an Caution ATEX/IECEx-certified enclosure with a minimum ingress protection rating of at least IP54 as defined in IEC/EN 60079-15. NI 9997 Getting Started Guide | © National Instruments | 5...
Page 6: Electromagnetic Compatibility Guidelines
Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. 6 | ni.com | NI 9997 Getting Started Guide...
Page 7: Special Conditions For Marine Applications
In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9997 Getting Started Guide | © National Instruments | 7...
Page 8: Preparing The Environment
Preparing the Environment Ensure that the environment in which you are using the NI 9997 meets the following specifications. Operating temperature -40 °C to 70 °C (IEC 60068-2-1, IEC 60068-2-2) Operating humidity 10% RH to 90% RH, (IEC 60068-2-78) noncondensing Pollution Degree Maximum altitude 3,000 m...
Page 10: High-Vibration Application Connections
High-Vibration Application Connections If your application is subject to high vibration, NI recommends that you follow these guidelines to protect connections to the NI 9997: • Use ferrules to terminate wires to the detachable connector. • Use the 6-position connector backshell kit (783804-01). Busbar Configurations The following sections illustrate typical busbar configurations.
Page 11 C Series Thermocouple Channel 0 Isolation NI 9997 • Attach the ground of the separate C Series module to a terminal on a channel of the NI 9997. • Connect the shields to the remaining terminals on the channel. NI 9997 Getting Started Guide | © National Instruments | 11...
Page 12 Connecting Multiple Modules to Device Common Device Device C Series Modules Channel 0 Isolation NI 9997 12 | ni.com | NI 9997 Getting Started Guide...
Page 13 • Attach the C Series Modules COM to a terminal of the NI 9997 channel. • Connect the common connection of the device(s) to the remaining terminals on the channel. Connecting Multiple Devices to One External Power Supply Device 1...
Page 14 • Connect the positive line of the PS to Channel 0 on the NI 9997. • Connect the negative line of the PS to Channel 1 on the NI 9997. • Connect the positive line of the device(s) to Channel 0 on the NI 9997.
Page 15: Physical Characteristics
0.22 N · m to 0.25 N · m terminals (1.95 lb · in. to 2.21 lb · in.) Wires per screw One wire per screw terminal; terminal two wires per screw terminal using a 2-wire ferrule NI 9997 Getting Started Guide | © National Instruments | 15...
Page 16 Connector securement Securement type Screw flanges provided Torque for screw 0.2 N · m (1.80 lb · in.) flanges Ferrules Single wire 0.25 mm to 1.50 mm (24 AWG to 16 AWG) Double wire 0.823 mm (18 AWG) maximum Weight 137 g (4.8 oz) 16 | ni.com | NI 9997 Getting Started Guide...
Page 17: Safety Voltages
Category II Withstand 3,000 Vrms, verified by a 5 s dielectric withstand test Measurement Category II is for measurements performed on circuits directly connected to the electrical distribution system. NI 9997 Getting Started Guide | © National Instruments | 17...
Page 18: Hazardous Locations
This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9997 to signals or use Caution for measurements within Measurement Categories III or IV.
Page 19: Safety And Hazardous Locations Standards
UL 60079-0; Ed 5, UL 60079-15; Ed 3 • CSA 60079-0:2011, CSA 60079-15:2012 For UL and other safety certifications, refer to Note the product label or the Online Product Certification section. NI 9997 Getting Started Guide | © National Instruments | 19...
Page 20: Online Product Certification
CE Compliance This product meets the essential requirements of applicable European Directives, as follows: • 2014/35/EU; Low-Voltage Directive (safety) • 2014/30/EU; Electromagnetic Compatibility Directive (EMC) • 94/9/EC; Potentially Explosive Atmospheres (ATEX) Online Product Certification Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance information.
Page 21: Shock And Vibration
Refer to the manual for the chassis you are using for more information about meeting these specifications. Operating temperature -40 °C to 70 °C (IEC 60068-2-1, IEC 60068-2-2) Storage temperature -40 °C to 85 °C (IEC 60068-2-1, IEC 60068-2-2) NI 9997 Getting Started Guide | © National Instruments | 21...
Page 22: Environmental Management
Ingress protection IP40 Operating humidity 10% RH to 90% RH, (IEC 60068-2-78) noncondensing Storage humidity 5% RH to 95% RH, (IEC 60068-2-78) noncondensing Pollution Degree Maximum altitude 3,000 m Indoor use only. Environmental Management NI is committed to designing and manufacturing products in an environmentally responsible manner.
Page 23: Worldwide Support And Services
China RoHS compliance, go to ni.com/environment/rohs_china Worldwide Support and Services The NI website is your complete resource for technical support. At ni.com/support, you have access to everything from NI 9997 Getting Started Guide | © National Instruments | 23...
Page 24 troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and other services. Visit ni.com/register to register your NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI.
Page 26 U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2014—2017 National Instruments. All rights reserved. 376997D-01 November 13, 2017...
