Step 4: Configure the NI 9514 or NI 9516 C Series
Modules
Complete the following steps to configure the axis I/O settings for use with the AKD servo drive.
1.
Right-click the axis in the Project Explorer window and select Properties from the
shortcut menu to open the Axis Configuration dialog box.

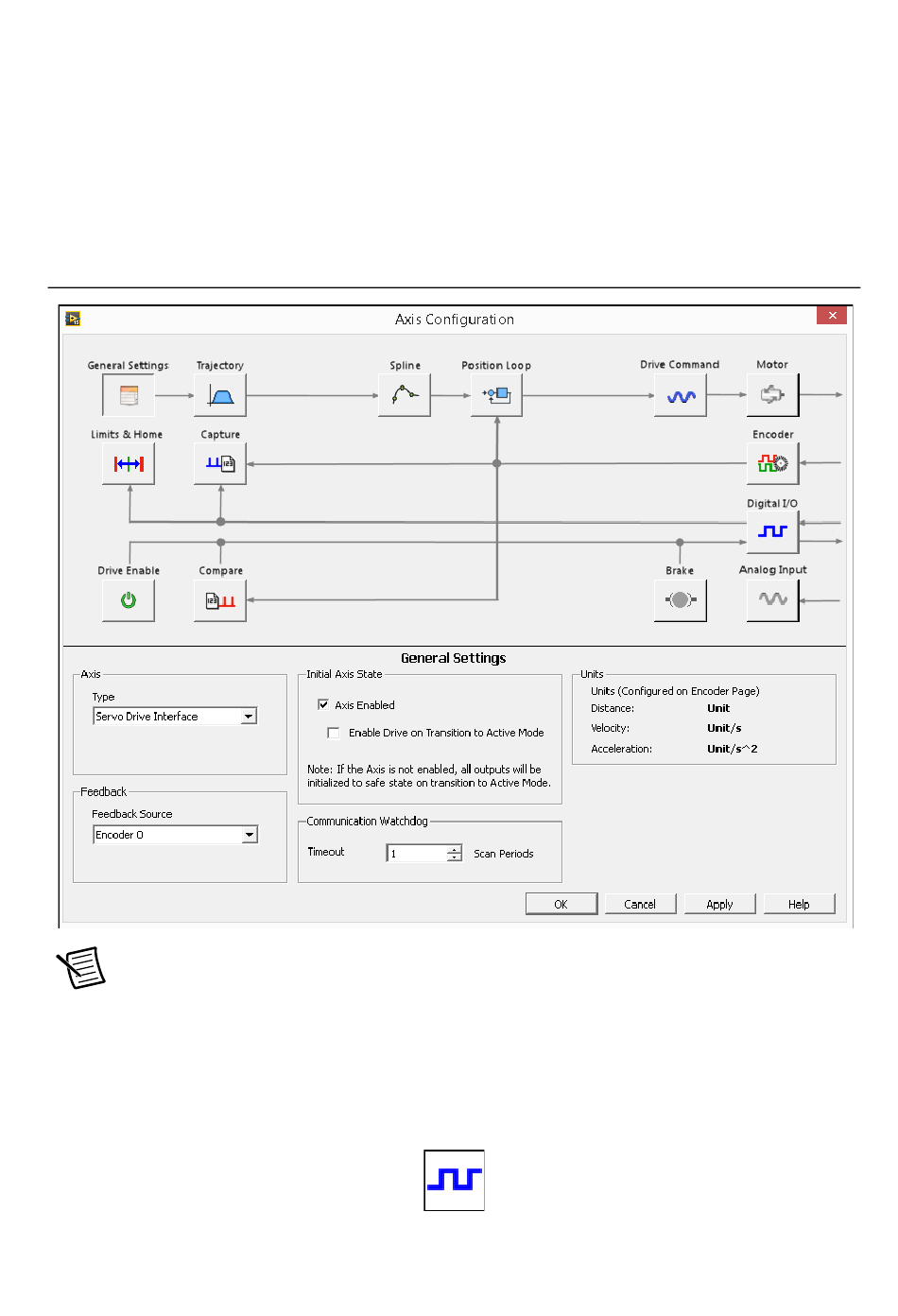

Figure 14 shows the parts of the Axis Configuration dialog box for NI 9514 and NI 9516
C Series modules.
The Axis Configuration dialog box user interface may not match this image
Note
exactly depending on which version of the LabVIEW NI SoftMotion Module you are
using.
2.
Click the Digital I/O button to open the Digital I/O page and map DI 1 to Drive
Fault/Alarm.
Getting Started with NI 9514/16 Modules and AKD Servo Drives | © National Instruments | 17
Figure 14. Axis Configuration Dialog Box
