- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...

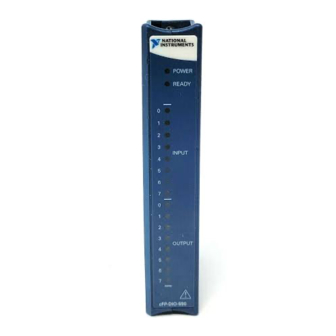

- Page 2 Eight-Channel Digital Input, Eight-Channel Digital Output Module These operating instructions describe how to install and use the National Instruments FP-DIO-550 and cFP-DIO-550 digital I/O modules, referred to inclusively as the [c]FP-DIO-550. For information about configuring and accessing the [c]FP-DIO-550 over a network, refer to the user manual for the FieldPoint network module you are using.
- Page 3 To install the FP-DIO-550, refer to Figure 1 and complete the following steps: 1. Slide the terminal base key to position X. 2. Align the FP-DIO-550 alignment slots with the guide rails on the terminal base. 3. Press firmly to seat the FP-DIO-550 on the terminal base. When the module is firmly seated, the terminal base latch locks it into place.
- Page 4 V terminals and the negative lead to both C terminals. Ensure that the current through each V terminal can never exceed 2 A. © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 5 Install a 2 A maximum, fast-acting fuse between the external power supply and the V terminals. The wiring diagrams in this document show fuses where appropriate. Table 1. Input Terminal Assignments Terminal Numbers IN– Channel In 0 In 1 In 2 In 3 In 4 In 5...
-
Page 6: Digital Input Filter
The filter rejects pulses that are 1 μs or more shorter than the length you select. If you select 0 μs, the filter is disabled. © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 7 Input Latching In MAX, you can configure each input channel to operate in either standard mode or latch mode. In standard mode, the channel returns a value of TRUE when the input is high and FALSE when the input is low. In latch mode, the channel latches to one value when it detects a specific input signal state and retains that value until you reset the channel.
- Page 8 Device (30 V Max) (PNP) [c]FP-DIO-550 Figure 6. Connecting an Externally Powered Sourcing-Output Device to One Channel of the [c]FP-DIO-550 © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 9: Digital Output Circuit
Digital Output Circuit The [c]FP-DIO-550 digital output channels are optically isolated from the rest of the FieldPoint bank. The channels are sourcing outputs, which means that the output terminal provides a path to a voltage supply. In the ON state, a transistor is turned on between the V terminal and the V terminal. - Page 10 Also, you can configure each output channel to latch on or off until it is reset or to update continually based on the input pattern. © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 11 The following table shows the four pattern match modes. Table 4. Pattern Match Modes and How They Affect Channel Behavior Pattern Match Mode Behavior Set High During Match The output turns on when the input pattern is detected and turns off when the pattern is not detected.
- Page 12 Inductive Load Figure 8. Digital Output Circuit (External Power Supply Not Shown) The [c]FP-DIO-550 contains flyback diodes to prevent excessively high voltage from damaging the module. National Instruments still recommends using an external protection circuit across any inductive load.
-
Page 13: Status Indicators
Status Indicators The [c]FP-DIO-550 has two green status LEDs, POWER and READY. After you insert the FP-DIO-550 into a terminal base or the cFP-DIO-550 into a backplane and apply power to the connected network module, the green POWER indicator lights and the [c]FP-DIO-550 informs the network module of its presence. - Page 14 This category refers to local-level distribution, such as that provided by a standard wall outlet. © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 15: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The [c]FP-DIO-550 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. -
Page 16: Specifications
Indicators .......... Green POWER and READY indicators, 16 green ON/OFF indicators Weight FP-DIO-550........ 141 g (5.0 oz) cFP-DIO-550......111 g (4.0 oz) © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 17: Power Requirements
Power Requirements Power from network module .... 600 mW Isolation Voltage Channel-to-ground isolation Continuous ......... 250 V , Measurement Category II Dielectric withstand....2,300 V , 5 s Channel-to-channel isolation .... None Environmental FieldPoint modules are intended for indoor use only. For outdoor use, they must be mounted inside a sealed enclosure. -
Page 18: Electromagnetic Compatibility
WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/ environment/weee.htm © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 19: Mechanical Dimensions
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United... - Page 20 Switzerland 41 56 200 51 51, Taiwan 886 02 2377 2222, Thailand 662 278 6777, United Kingdom 44 0 1635 523545 © National Instruments Corp. FP-DIO-550 and cFP-DIO-550 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 21 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
