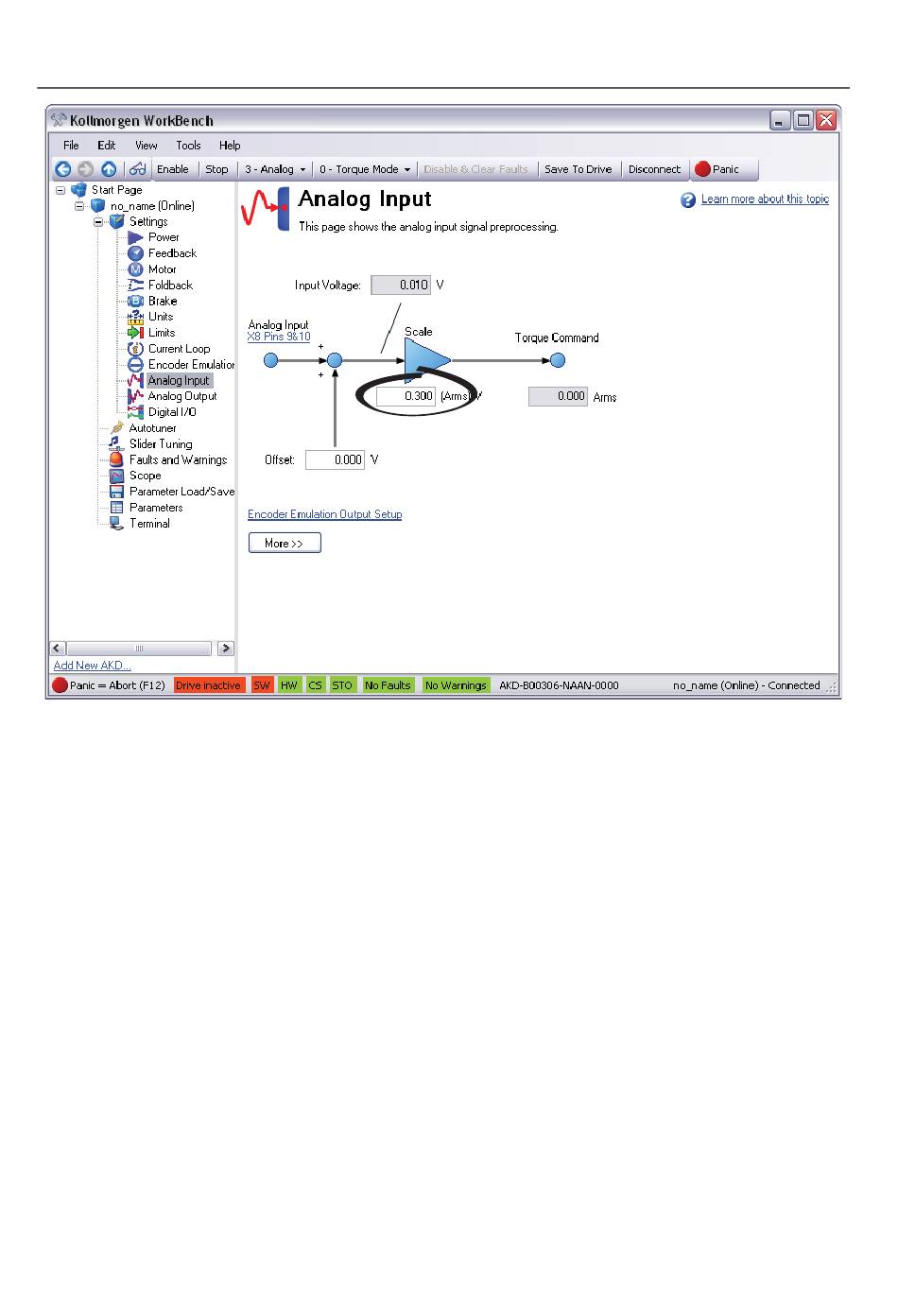

Figure 21 shows the analog input scaling setting.
Figure 21. AKD WorkBench Analog Input Scale Setting
10. Configure the software enable signal:
Click the Parameters tree icon to list all configurable drive parameters.
a.
b.
Expand the Drive section.
c.
Set the Software enable default parameter to 1.
26 | ni.com | Getting Started with NI 9514/16 Modules and AKD Servo Drives
