Figure 20 shows the AKD WorkBench Motor page.

Expand the Settings tree item and open the Analog Input page.

Set the Scale to the appropriate Arms/V value based on the following equation:

For example, if you have a motor with a maximum current of 3.00 Arms set Scale to

0.3 Arms/V.

Getting Started with NI 9514/16 Modules and AKD Servo Drives | © National Instruments | 25

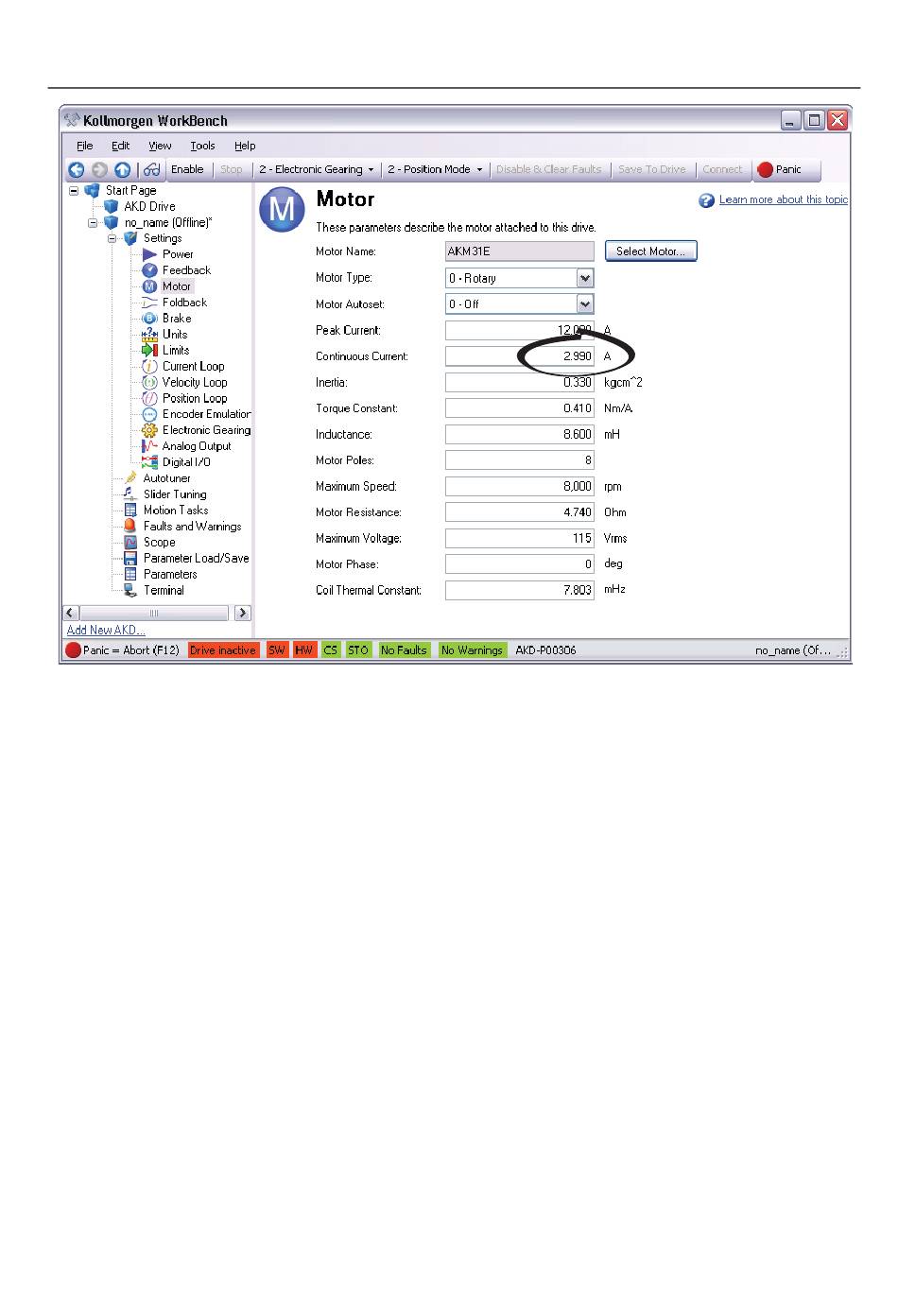

Figure 20. AKD WorkBench Motor Page

Scale = Motor continuous current / 10
