VAA-4E4A-G20-ZEJ/M2L-P7-GEB
Installation
Figure 3.2
Flat Cable Inserted Incorrectly

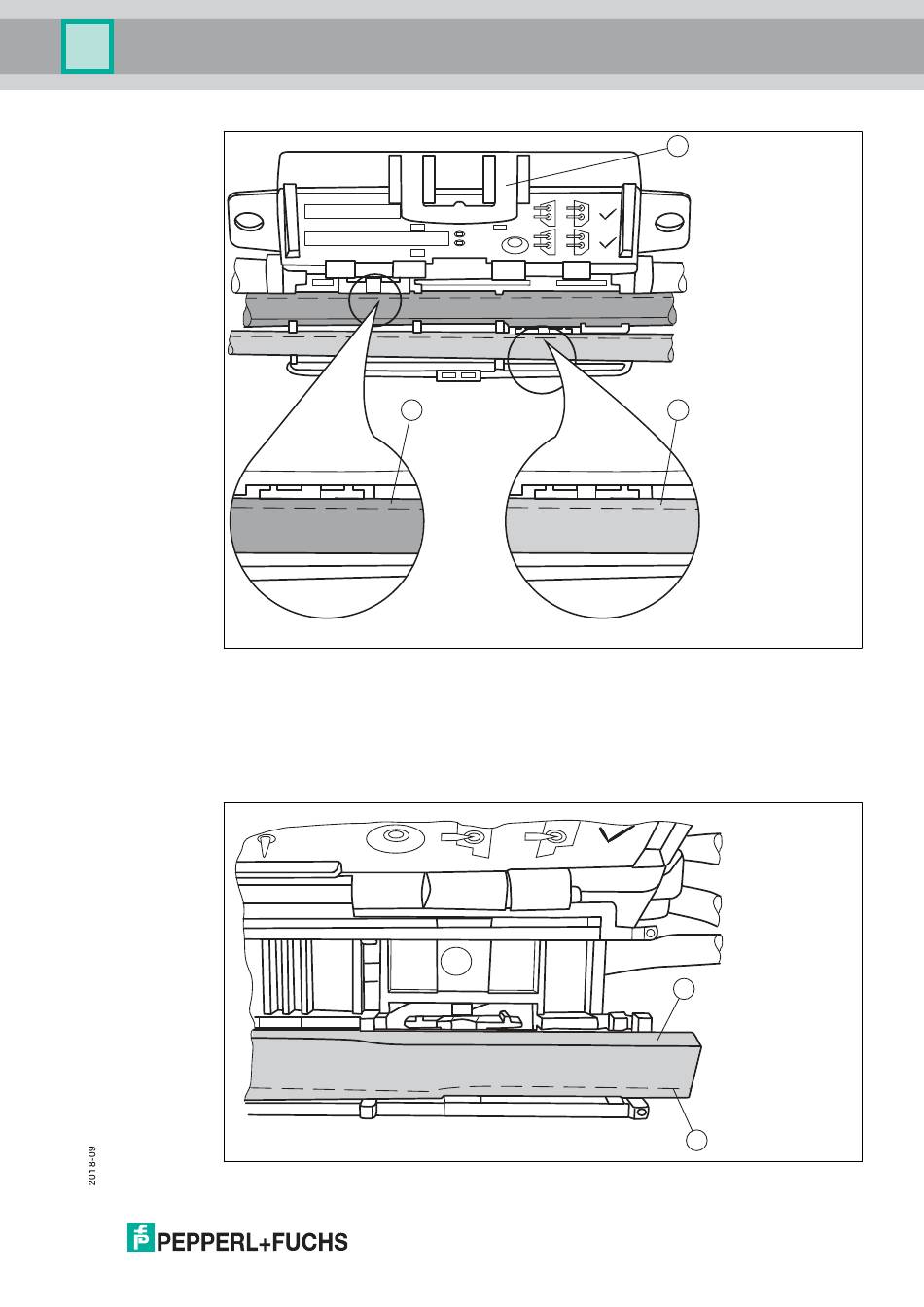

The figure below shows an incorrectly inserted flat cable. The profile edge (2) does not point to
the motor control module; the flat cable is therefore inserted with reverse polarity. The flat cable
is located on the reverse polarity protection (1) with a curvature, which means that the cable
guide cannot be closed completely (mechanical reverse polarity protection).
Figure 3.3
YELLOW
BLACK AUX
3
Connecting flat cables on the wide side (profile edge as dotted line)
Flat cable inserted incorrectly (profile edge as dotted line)
1
2
1
2
