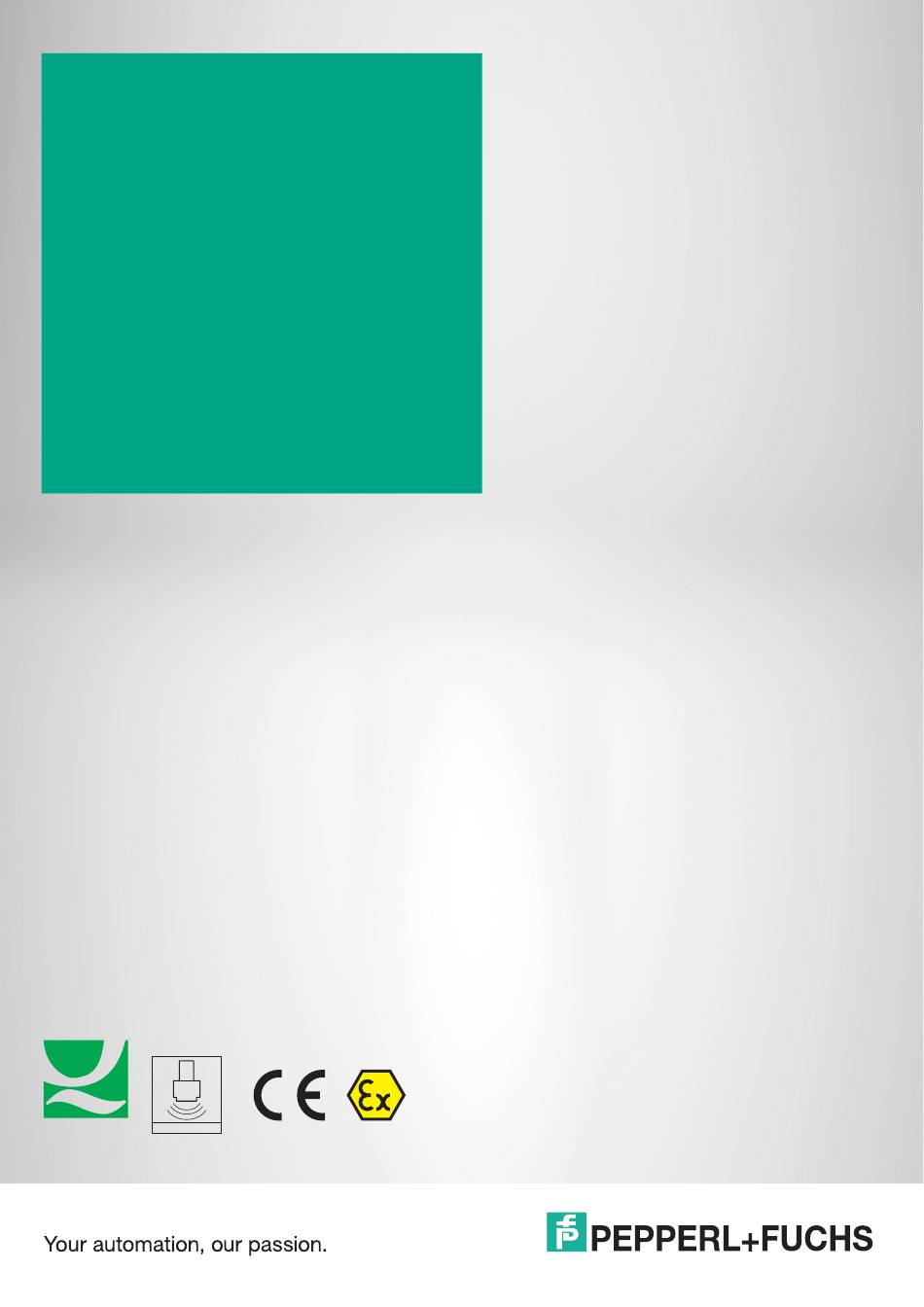

- Page 1 VU121 ® Bluetooth Module ® Remote Operation via Bluetooth Wireless Technology Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
® Bluetooth Module VU121 Contents Introduction ............5 Content of this Document . - Page 4 ® Bluetooth Module VU121 Contents...
-
Page 5: Introduction
® Bluetooth Module VU121 Introduction Introduction Content of this Document This document contains information that you need in order to use your product throughout the applicable stages of the product life cycle. These can include the following: • Product identification •... -
Page 6: Safety Information
® Bluetooth Module VU121 Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. The personnel must have read and understood the instruction manual and the further documentation. -
Page 7: Registered Trademarks
Bluetooth ® ® The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Pepperl+Fuchs is under license. Other trademarks and trade names are those of their respective owners. -
Page 8: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Under different operating conditions than those described here, protection may be compromised and the correct functioning of the device cannot be guaranteed. Declaration of Conformity ® The Bluetooth module VU121 meets all the applicable EC Directives. -
Page 9: Radio Approvals
This device must accept any interference received, including interference that may cause undesired operation. Note Changes or modifications made to this equipment not expressly approved by Pepperl+Fuchs may void the FCC authorization to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 10: Other Countries
Les changements ou modifications apportés à cet appareil non expressément approuvés par Pepperl+Fuchs peuvent annuler l'autorisation FCC d'utiliser cet appareil. Déclaration d'exposition aux radiations Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. -
Page 11: Operation Options
® Bluetooth Module VU121 Operation Options Operation Options ® Bluetooth Wireless Technology ® Access via Bluetooth wireless technology ® Figure 4.1 Remote operation via Bluetooth wireless technology Mobile phone or tablet with P+F Level app ® Device with optional Bluetooth... -
Page 12: Technical Data
® Bluetooth Module VU121 Operation Options Technical Data • Maximum free-field range 50 m (165 foot) • Operation radius with intervisibility 10 m (33 foot) around the device • Supply voltage: 3 VDC with max. 5.5 VDC and min. 2.7 VDC •... -
Page 13: Commissioning
® Bluetooth Module VU121 Commissioning Commissioning Requirements Device Requirements ® Commissioning via P+F Level app is only possible if a Bluetooth module is installed in the device. System Requirements The P+F Level app is available for download for mobile smartphone or tablet devices in the Google Play Store for Android, and in the App Store for iOS. -
Page 14: Establishing A Connection Via P+F Level App
® Bluetooth Module VU121 Commissioning Establishing a Connection via P+F Level App Downloading and Installing P+F Level App Enter P+F Level in the search field of the app store. Figure 5.1 App-Stores Install the P+F Level app. Start the P+F Level app. -
Page 15: Disposal
WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Pepperl+Fuchs for disposal under the applicable conditions. - Page 16 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality SD02389O/98/EN/03.20 www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany / DOCT-8342...
