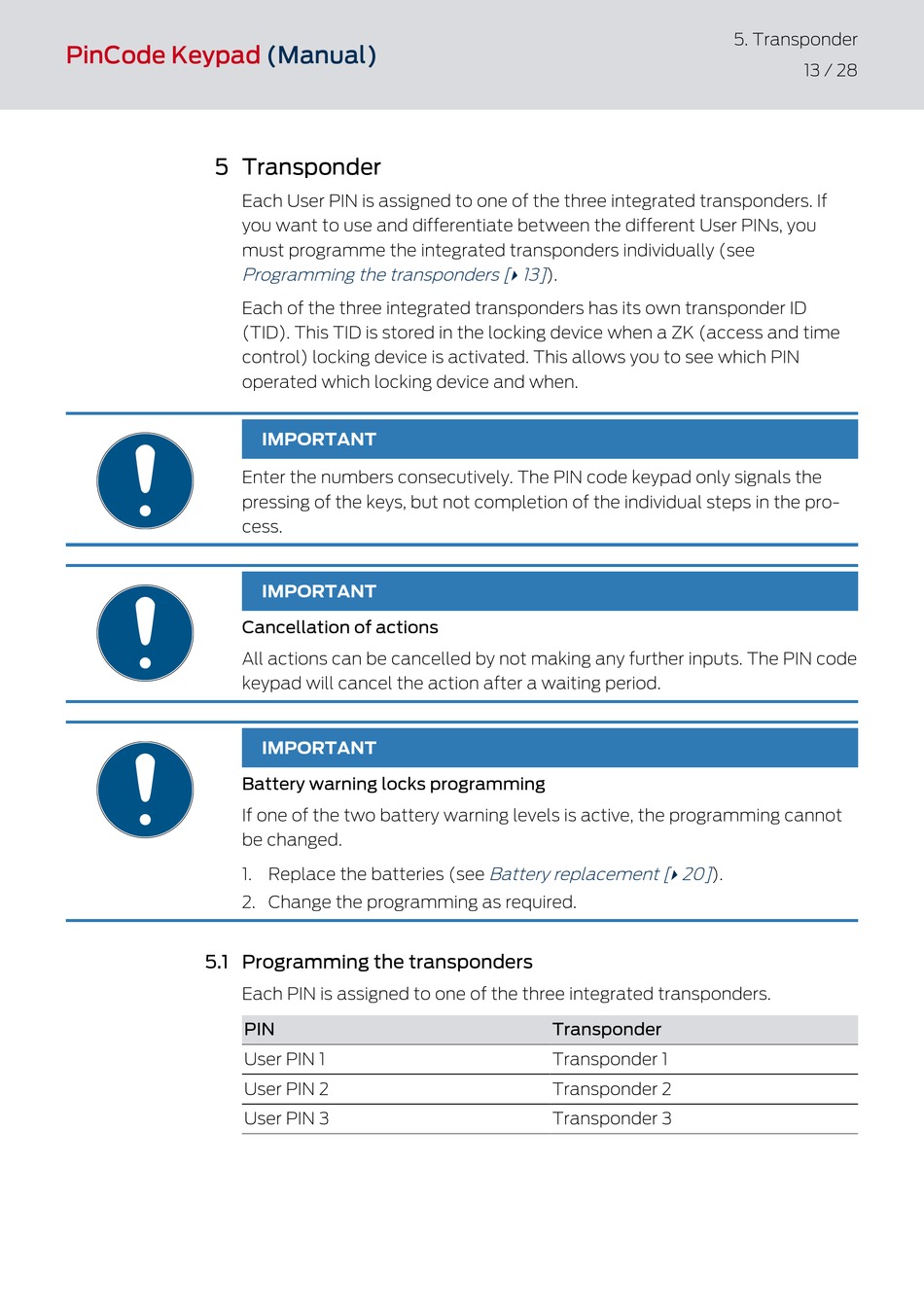

Transponder; Programming The Transponders - Simons Voss Technologies PinCode Keypad Manual

PinCode Keypad

5 Transponder

5.1 Programming the transponders

(Manual)
Each User PIN is assigned to one of the three integrated transponders. If
you want to use and differentiate between the different User PINs, you
must programme the integrated transponders individually (see
Programming the transponders [
Each of the three integrated transponders has its own transponder ID
(TID). This TID is stored in the locking device when a ZK (access and time
control) locking device is activated. This allows you to see which PIN
operated which locking device and when.
IMPORTANT
Enter the numbers consecutively. The PIN code keypad only signals the
pressing of the keys, but not completion of the individual steps in the pro-
cess.
IMPORTANT
Cancellation of actions
All actions can be cancelled by not making any further inputs. The PIN code
keypad will cancel the action after a waiting period.
IMPORTANT
Battery warning locks programming
If one of the two battery warning levels is active, the programming cannot
be changed.
1. Replace the batteries (see
2. Change the programming as required.
Each PIN is assigned to one of the three integrated transponders.
PIN
User PIN 1
User PIN 2
User PIN 3
13] ).
}
Battery replacement [
Transponder
Transponder 1
Transponder 2
Transponder 3
5. Transponder
13 / 28
20] ).
}
