Chapter 3
KB Power ON Password:
If POWER ON Function is set to [Password], then you can set a password
in the field for the PS/2 keyboard to power on the system.
Hot Key Power ON:
If POWER ON Function is set to [Hot KEY], you can assign a hot key
combination in the field for the PS/2 keyboard to power on the system.
Settings: [Ctrl-F1] through [Ctrl-F12].
3.6 PNP/PCI Configurations
This section provides IRQ and DMA setting information. By choosing the
PNP/PCI Configuration option from the CMOS Setup Utility menu (Figure 3-1),
the screen below is displayed. This screen contains the manufacturer's default
values for the motherboard.
Reset Configuration Data:
If you want to reset CMOS IRQ divide hardware device, please selected to
[Enabled].
Resources Controlled By:
When set to Manual the system BIOS will not refer to the ESCD for IRQ &
DMA information. Instead, it will refer to the items in the setup menu for
assigning IRQ & DMA. When set to Auto the system BIOS will refer to the
ESCD for all legacy information.
ESCD (Extended System Configuration Data) provides a detailed format of
the configuration data structures stored in flash memory. Each data structure
46

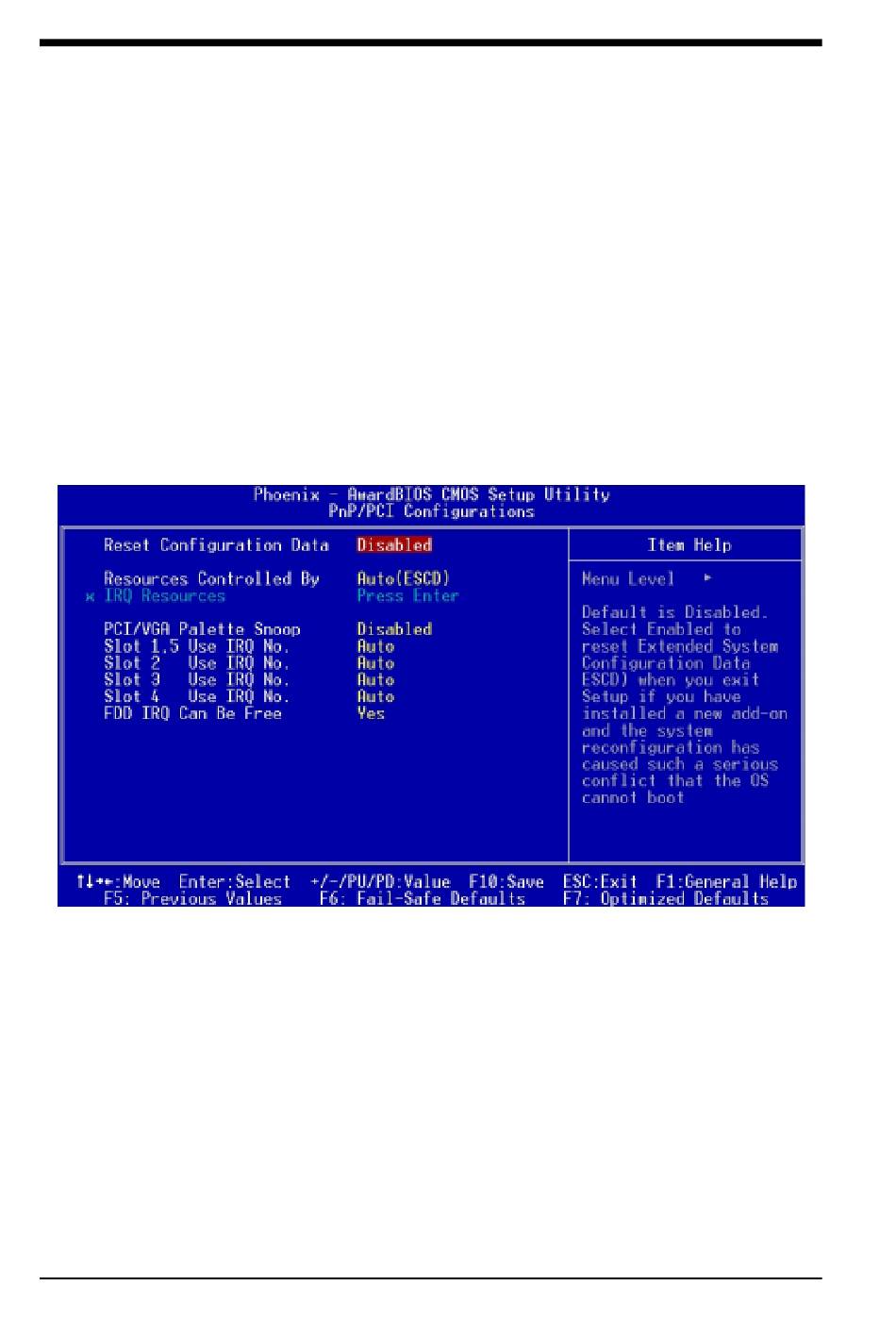

Figure 3-7 PNP/PCI Configurations
