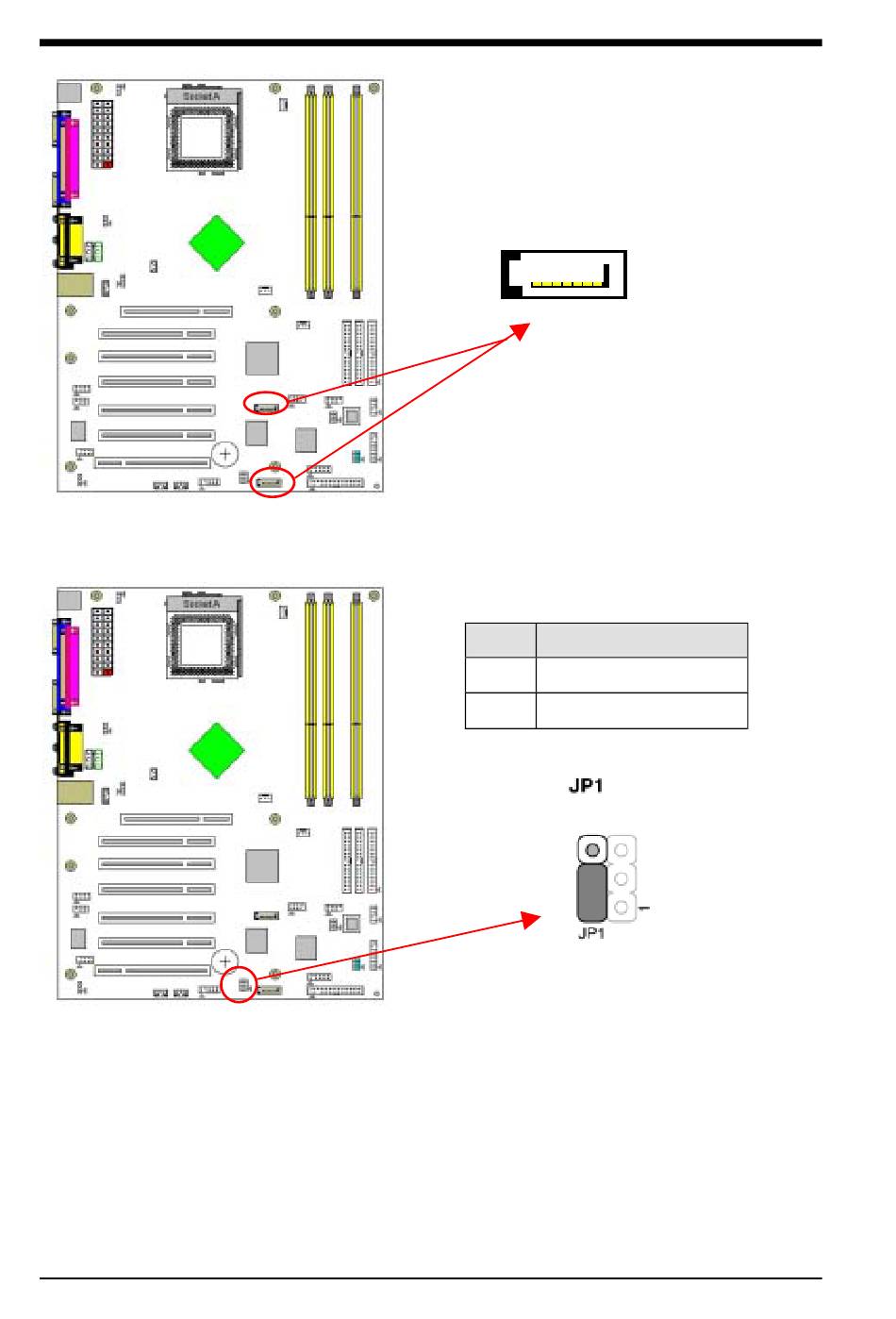

J1 /J2 (Serial ATA Connector):
This can connect to new IDE device, it support ATA 150MB/sec.
Notes: Setup problem, please refer to
JP1 (Clear CMOS Data):
To clear the contents of the CMOS, please follow the steps below.
1. Disconnect the system power supply from the power source.
2. Set the jumper cap at location [2-3] for <5 seconds>, and then set it back to
the default position.
3. Connect the system's power and then start the system.
4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type
[Y] and press [enter].
5. Set the system configuration in the Standard CMOS Setup menu.
18
Appendix Serial ATA/IDE RAID
Pin
7NJS Ultra User's Guide
Definition
1-2 Normal (default)
2-3 Clear CMOS Data
.
