Establishing the Configuration Environment

Establishing the Configuration Environment
Connect the PC to the console port of the switch through the console cable, as shown in 0.

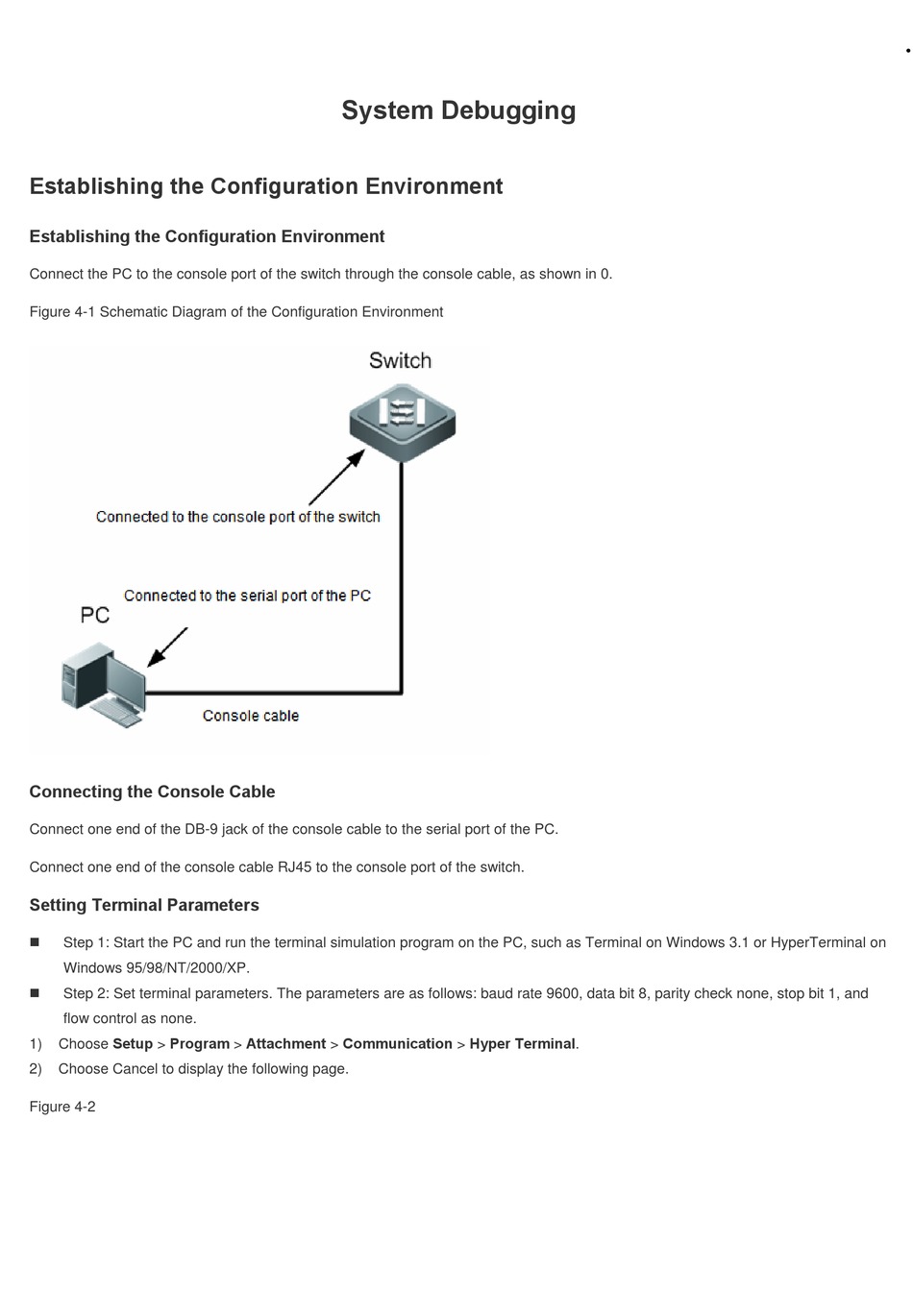

Figure 4-1 Schematic Diagram of the Configuration Environment
Connecting the Console Cable
Connect one end of the DB-9 jack of the console cable to the serial port of the PC.
Connect one end of the console cable RJ45 to the console port of the switch.
Setting Terminal Parameters

Step 1: Start the PC and run the terminal simulation program on the PC, such as Terminal on Windows 3.1 or HyperTerminal on
Windows 95/98/NT/2000/XP.

Step 2: Set terminal parameters. The parameters are as follows: baud rate 9600, data bit 8, parity check none, stop bit 1, and
flow control as none.
Choose Setup > Program > Attachment > Communication > Hyper Terminal.
1)
2) Choose Cancel to display the following page.
Figure 4-2

System Debugging

·
