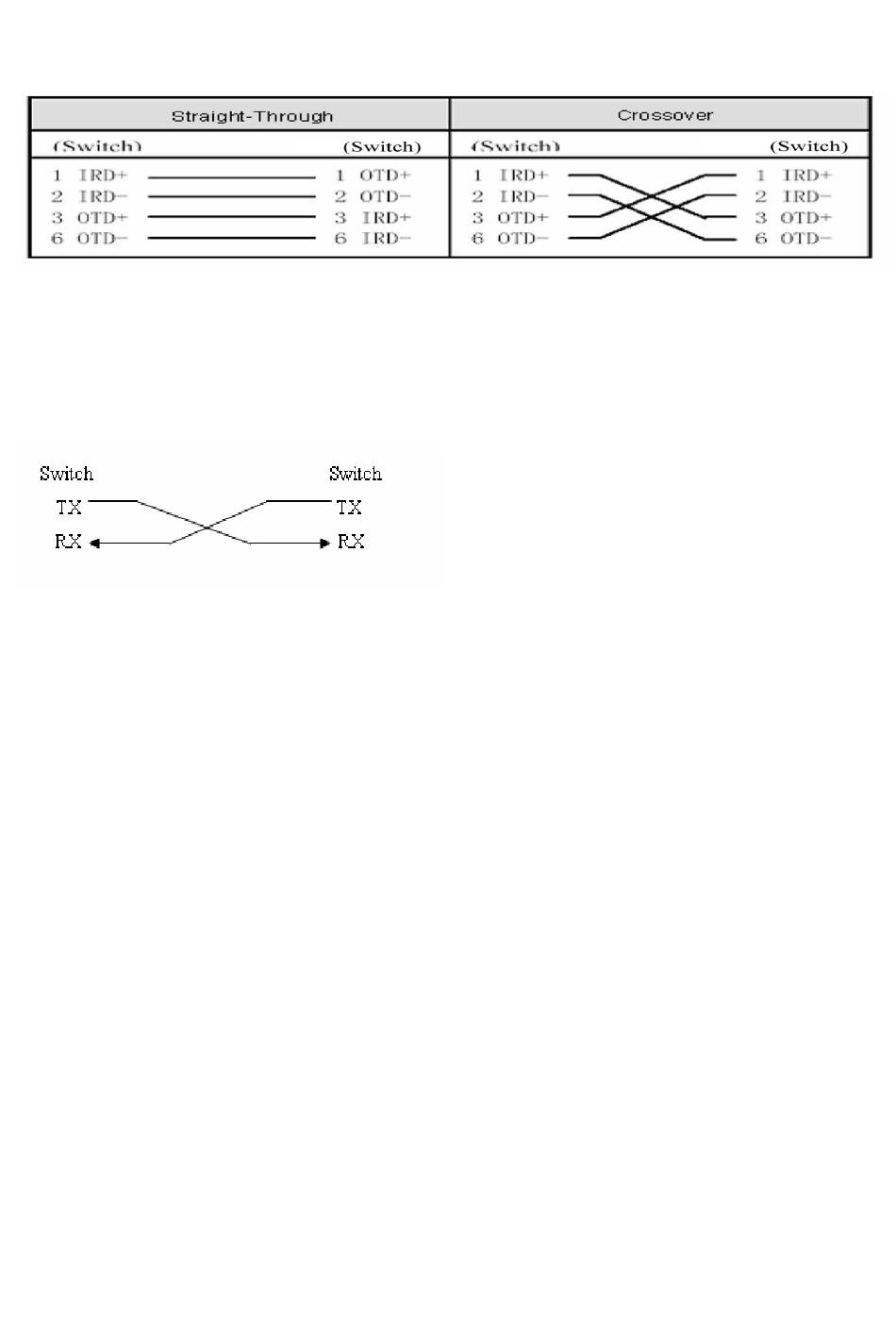

Figure A-3 Connections of the Twisted Pairs of the 100BASE-TX/10BASE-T

2. Optical Fiber Connection

For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module
connected. The connection schematic diagram is shown in 0.
Figure A-4 Schematic Diagram for Optical Fiber Connection
