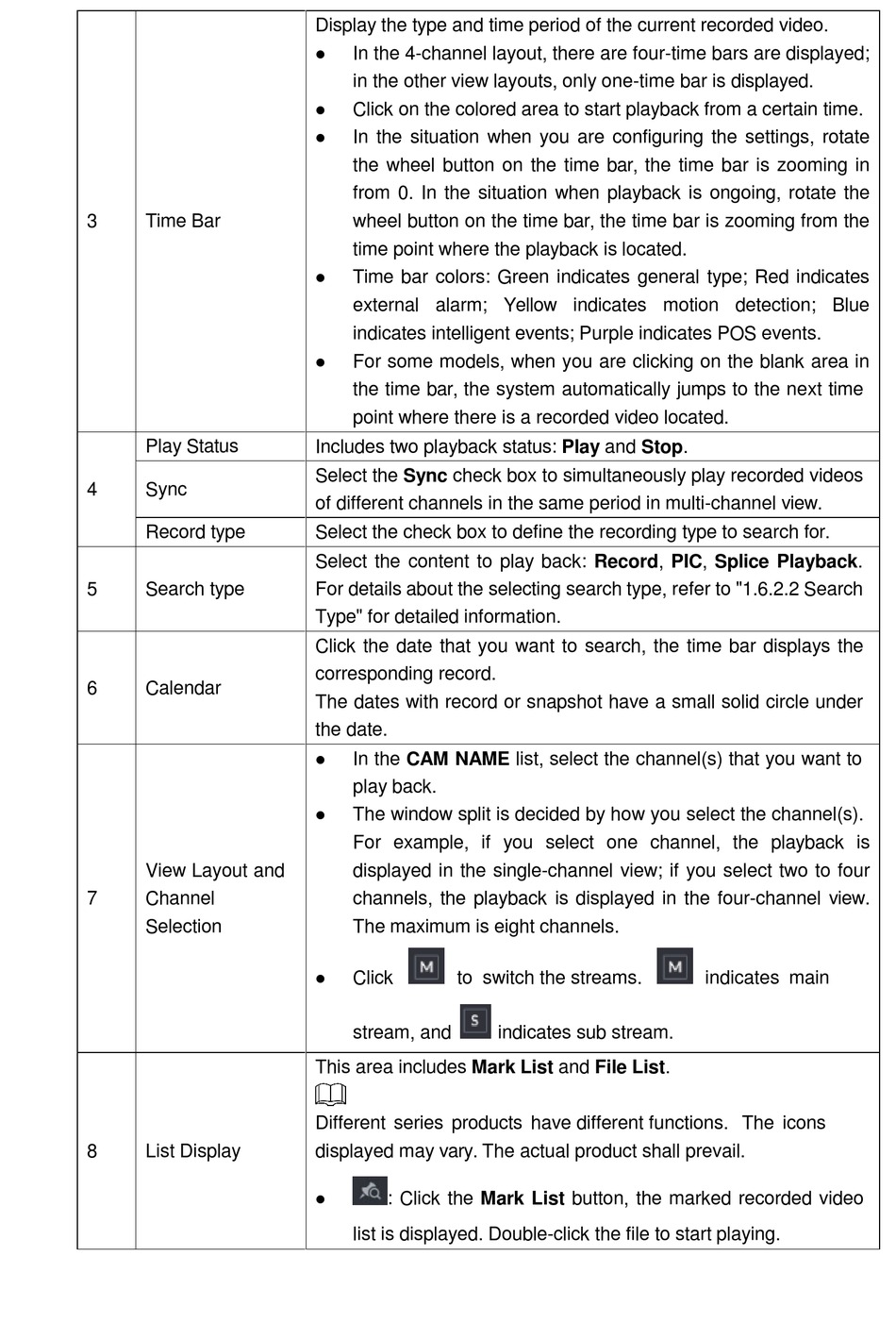

CP Plus Orange User Manual page 89

3 Time Bar
Play Status
4 Sync
Record type
5 Search type
6 Calendar
View Layout and
7
Channel
Selection
8 List Display
Display the type and time period of the current recorded video.
⚫ In the 4-channel layout, there are four-time bars are displayed;
in the other view layouts, only one-time bar is displayed.
Click on the colored area to start playback from a certain time.
⚫
In the situation when you are configuring the settings, rotate
⚫
the wheel button on the time bar, the time bar is zooming in
from 0. In the situation when playback is ongoing, rotate the
wheel button on the time bar, the time bar is zooming from the
time point where the playback is located.
Time bar colors: Green indicates general type; Red indicates
⚫
external alarm; Yellow indicates motion detection; Blue
indicates intelligent events; Purple indicates POS events.
For some models, when you are clicking on the blank area in
⚫
the time bar, the system automatically jumps to the next time
point where there is a recorded video located.
Includes two playback status: Play and Stop.
Select the Sync check box to simultaneously play recorded videos
of different channels in the same period in multi-channel view.
Select the check box to define the recording type to search for.
Select the content to play back: Record, PIC, Splice Playback.
For details about the selecting search type, refer to "1.6.2.2 Search
Type" for detailed information.
Click the date that you want to search, the time bar displays the
corresponding record.
The dates with record or snapshot have a small solid circle under
the date.
In the CAM NAME list, select the channel(s) that you want to
⚫
play back.
The window split is decided by how you select the channel(s).
⚫
For example, if you select one channel, the playback is
displayed in the single-channel view; if you select two to four
channels, the playback is displayed in the four-channel view.
The maximum is eight channels.
⚫ Click to switch the streams.
stream, and
This area includes Mark List and File List.
Different series products have different functions. The icons
displayed may vary. The actual product shall prevail.
: Click the Mark List button, the marked recorded video
⚫
list is displayed. Double-click the file to start playing.
indicates sub stream.
indicates main
