CP Plus Orange User Manual page 130

Tour
Log
Voice
Prompts
Buzzer
⚫
Step 3 Click Apply to complete the setup.
⚫
⚫

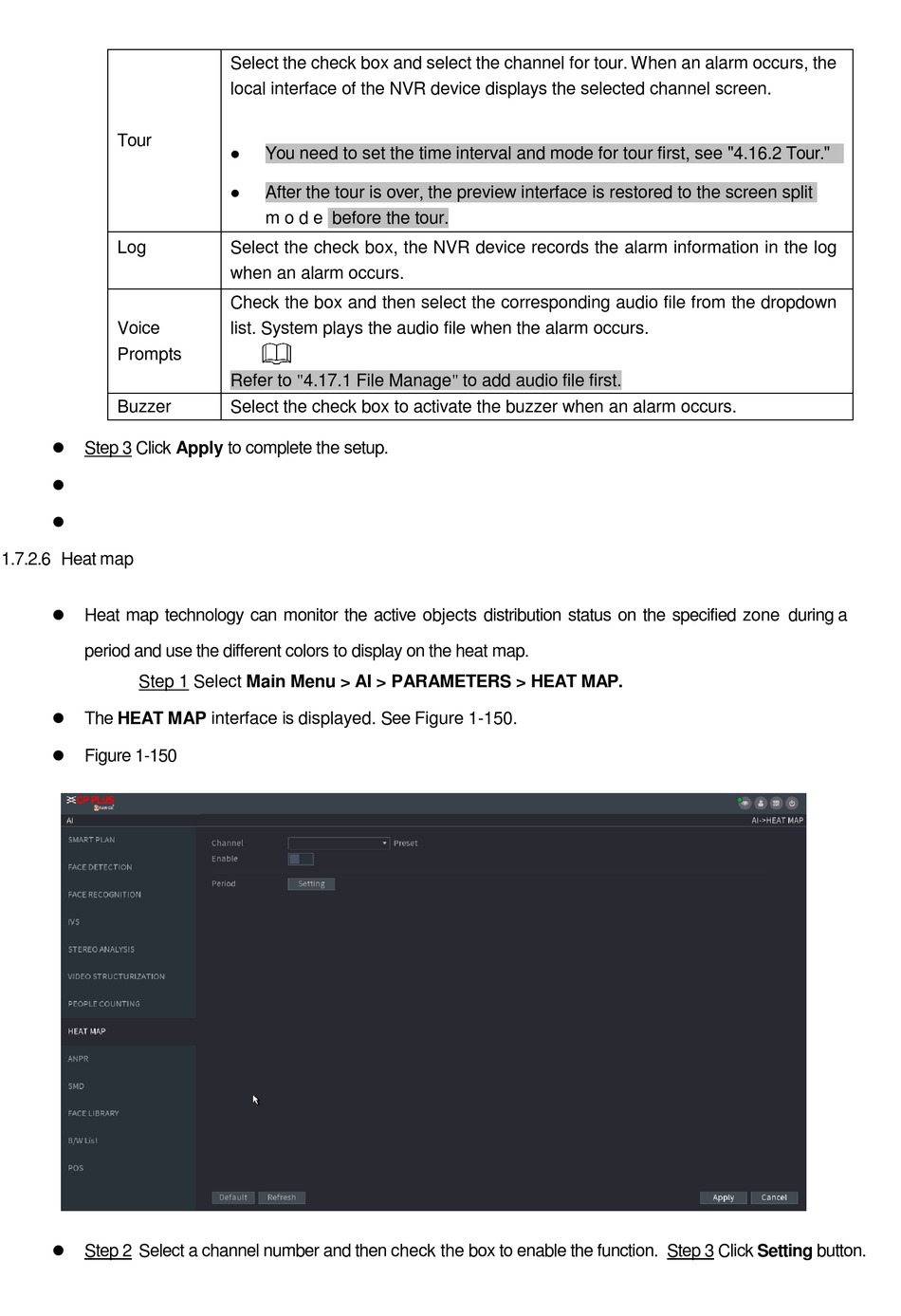

1.7.2.6 Heat map
⚫
Heat map technology can monitor the active objects distribution status on the specified zone during a
period and use the different colors to display on the heat map.
Step 1 Select Main Menu > AI > PARAMETERS > HEAT MAP.
⚫
The HEAT MAP interface is displayed. See Figure 1-150.
⚫
Figure 1-150
⚫
Step 2 Select a channel number and then check the box to enable the function. Step 3 Click Setting button.
Select the check box and select the channel for tour. When an alarm occurs, the
local interface of the NVR device displays the selected channel screen.
⚫ You need to set the time interval and mode for tour first, see "4.16.2 Tour."
After the tour is over, the preview interface is restored to the screen split
⚫
m o d e before the tour.
Select the check box, the NVR device records the alarm information in the log
when an alarm occurs.
Check the box and then select the corresponding audio file from the dropdown
list. System plays the audio file when the alarm occurs.
Refer to "4.17.1 File Manage" to add audio file first.
Select the check box to activate the buzzer when an alarm occurs.
