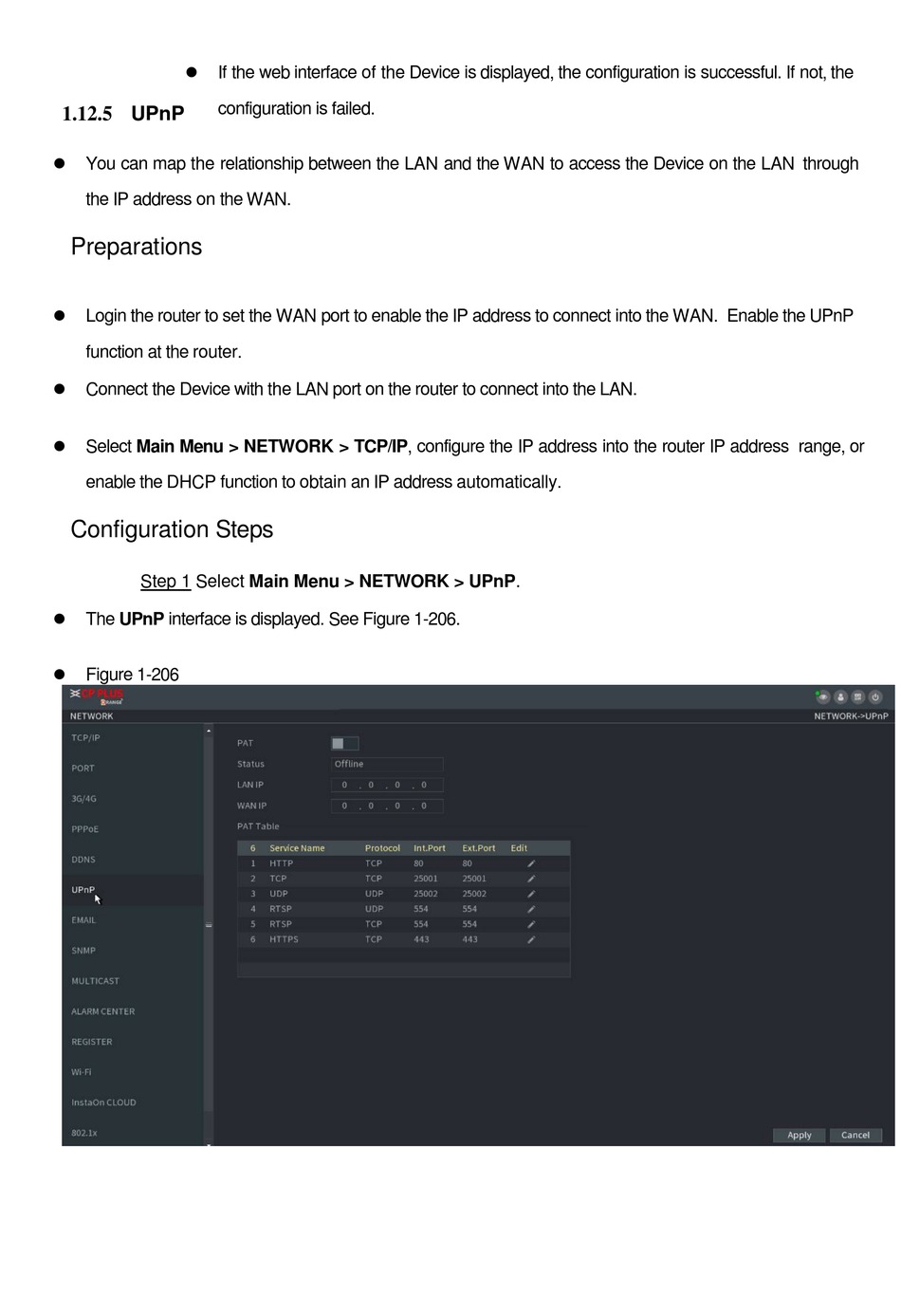

CP Plus Orange User Manual page 186

⚫
If the web interface of the Device is displayed, the configuration is successful. If not, the
configuration is failed.
1.12.5 UPnP
⚫
You can map the relationship between the LAN and the WAN to access the Device on the LAN through
the IP address on the WAN.
Preparations
⚫
Login the router to set the WAN port to enable the IP address to connect into the WAN. Enable the UPnP
function at the router.
⚫
Connect the Device with the LAN port on the router to connect into the LAN.
⚫
Select Main Menu > NETWORK > TCP/IP, configure the IP address into the router IP address range, or
enable the DHCP function to obtain an IP address automatically.
Configuration Steps
Step 1 Select Main Menu > NETWORK > UPnP.
⚫
The UPnP interface is displayed. See Figure 1-206.
⚫
Figure 1-206
