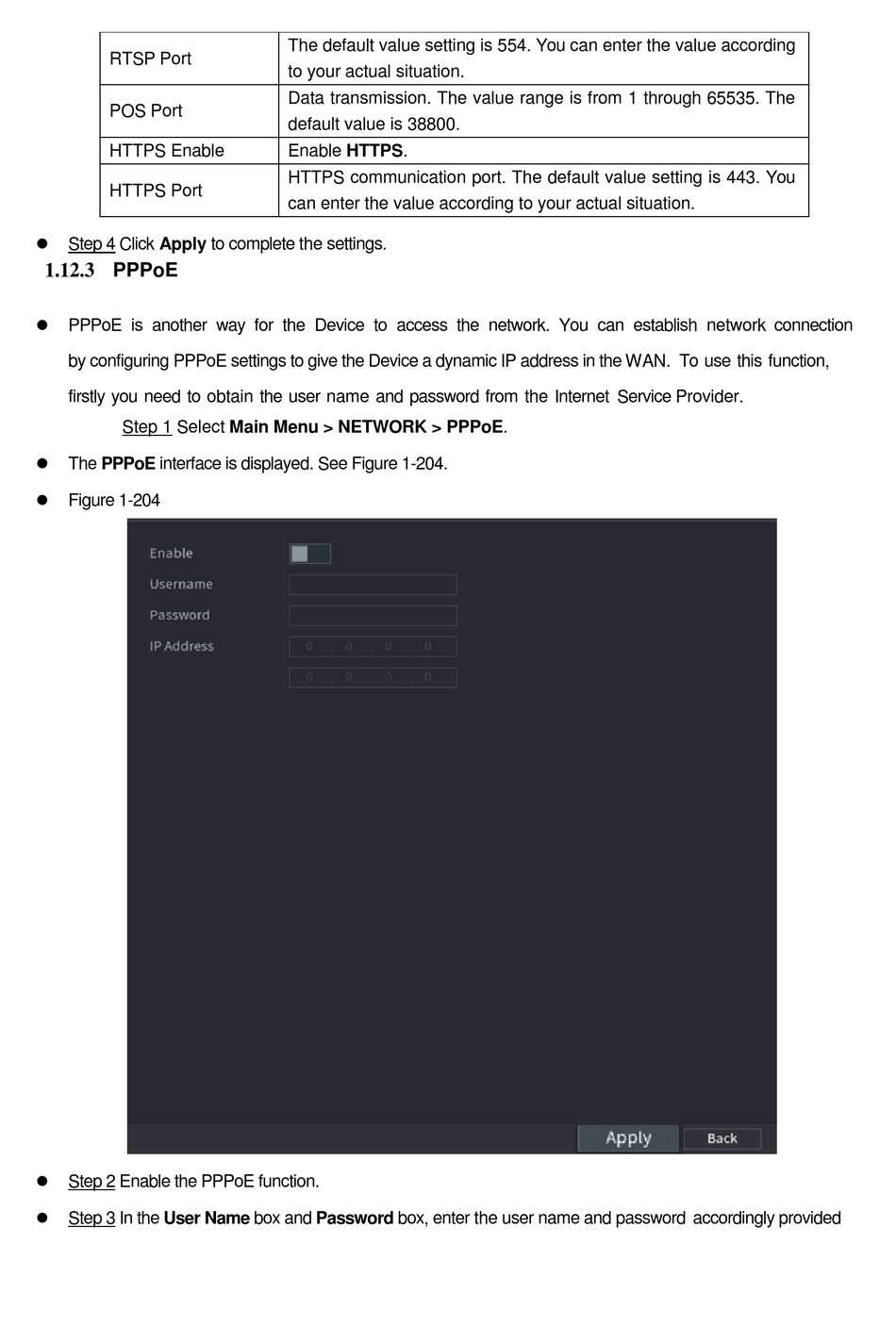

CP Plus Orange User Manual page 183

RTSP Port
POS Port
HTTPS Enable
HTTPS Port
⚫
Step 4 Click Apply to complete the settings.
1.12.3 PPPoE
⚫
PPPoE is another way for the Device to access the network. You can establish network connection
by configuring PPPoE settings to give the Device a dynamic IP address in the WAN. To use this function,
firstly you need to obtain the user name and password from the Internet Service Provider.
Step 1 Select Main Menu > NETWORK > PPPoE.
⚫
The PPPoE interface is displayed. See Figure 1-204.
⚫
Figure 1-204
⚫
Step 2 Enable the PPPoE function.
⚫
Step 3 In the User Name box and Password box, enter the user name and password accordingly provided
The default value setting is 554. You can enter the value according
to your actual situation.
Data transmission. The value range is from 1 through 65535. The
default value is 38800.
Enable HTTPS.
HTTPS communication port. The default value setting is 443. You
can enter the value according to your actual situation.
