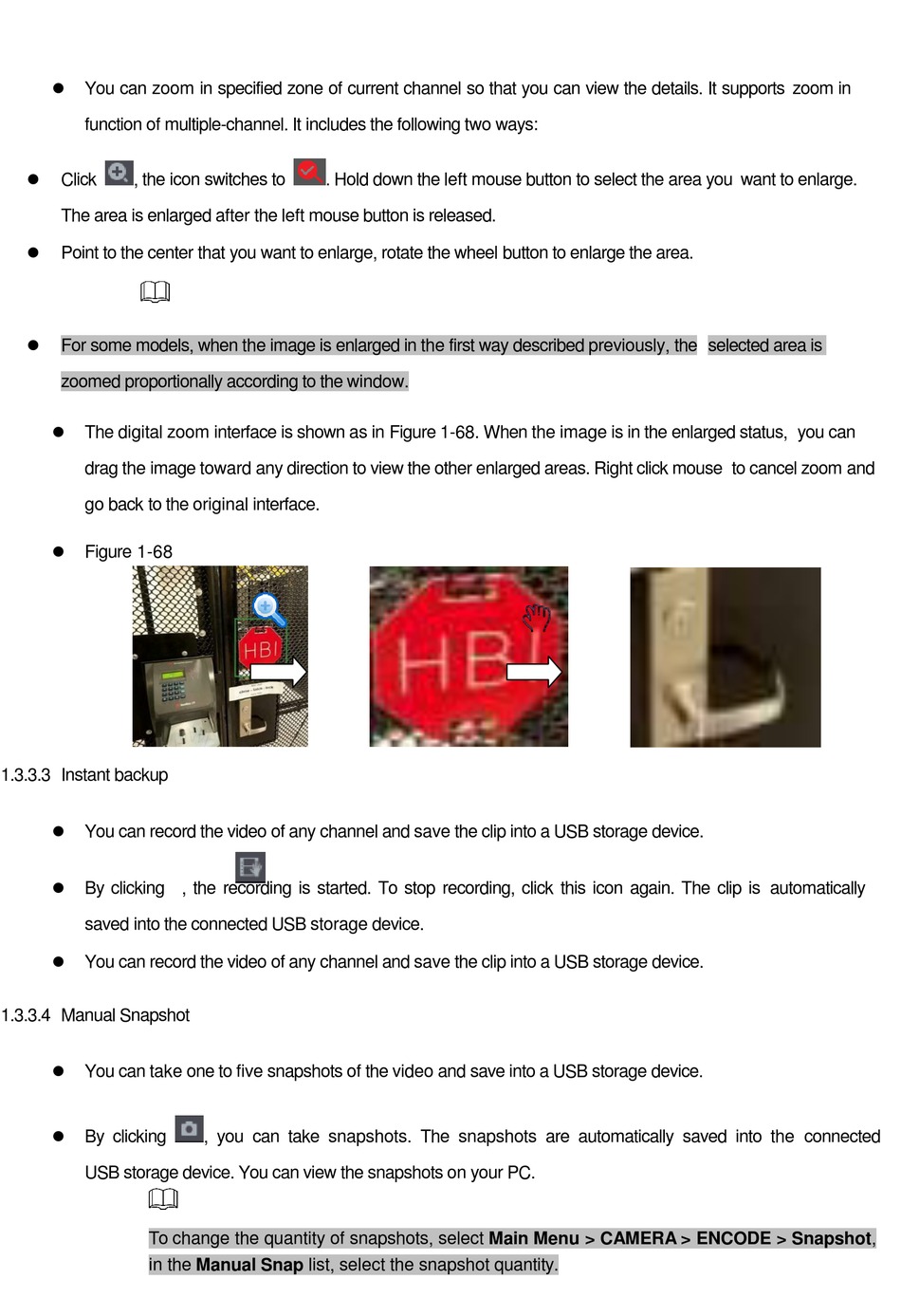

CP Plus Orange User Manual page 73

⚫
You can zoom in specified zone of current channel so that you can view the details. It supports zoom in
function of multiple-channel. It includes the following two ways:
⚫
Click , the icon switches to
The area is enlarged after the left mouse button is released.
⚫
Point to the center that you want to enlarge, rotate the wheel button to enlarge the area.
⚫
For some models, when the image is enlarged in the first way described previously, the selected area is
zoomed proportionally according to the window.
⚫
The digital zoom interface is shown as in Figure 1-68. When the image is in the enlarged status, you can
drag the image toward any direction to view the other enlarged areas. Right click mouse to cancel zoom and
go back to the original interface.
⚫
Figure 1-68
1.3.3.3 Instant backup
⚫
You can record the video of any channel and save the clip into a USB storage device.
⚫
By clicking , the recording is started. To stop recording, click this icon again. The clip is automatically
saved into the connected USB storage device.
⚫
You can record the video of any channel and save the clip into a USB storage device.
1.3.3.4 Manual Snapshot
⚫
You can take one to five snapshots of the video and save into a USB storage device.
⚫
By clicking
USB storage device. You can view the snapshots on your PC.
To change the quantity of snapshots, select Main Menu > CAMERA > ENCODE > Snapshot,
in the Manual Snap list, select the snapshot quantity.
. Hold down the left mouse button to select the area you want to enlarge.
, you can take snapshots. The snapshots are automatically saved into the connected
