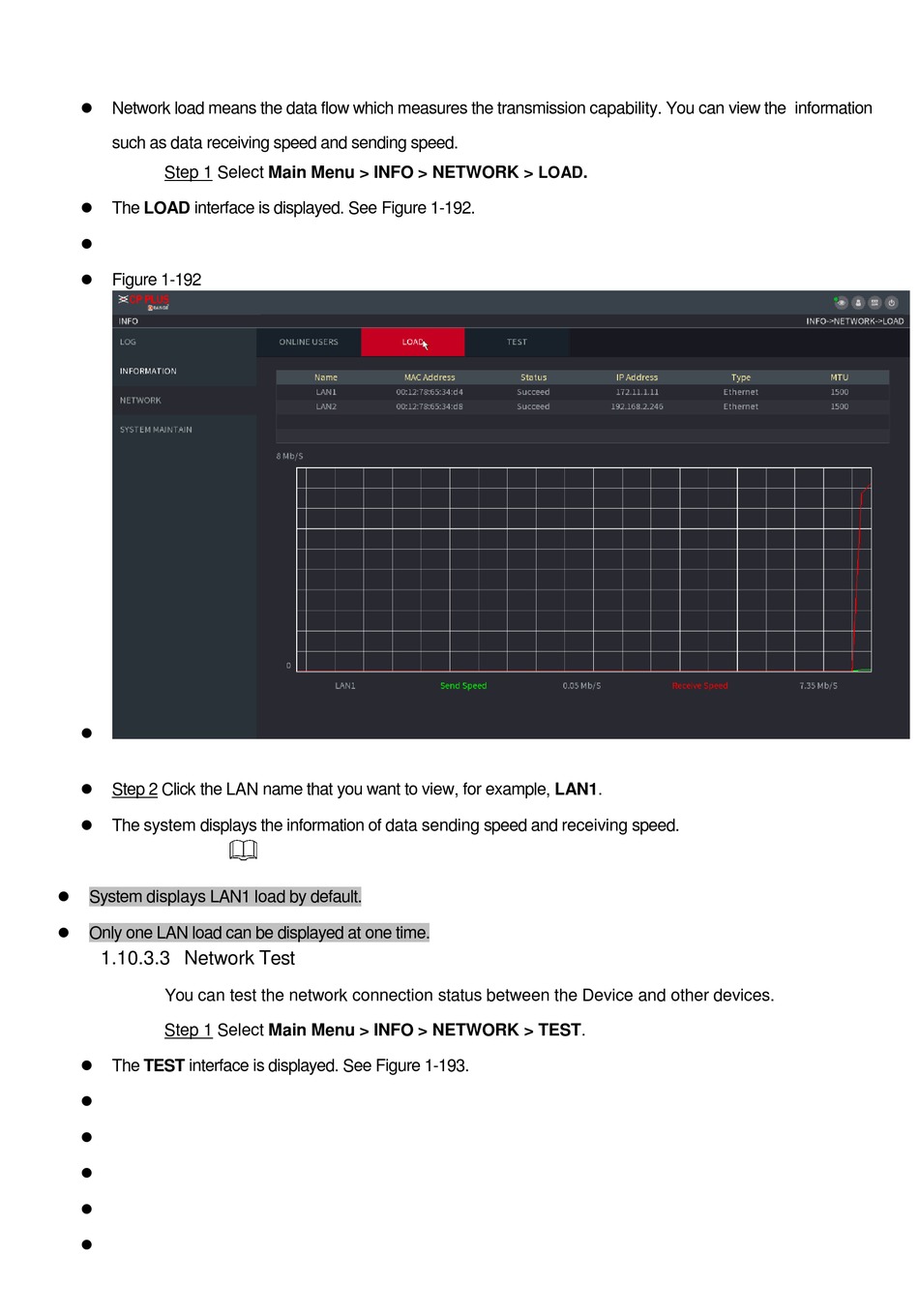

CP Plus Orange User Manual page 169

⚫
Network load means the data flow which measures the transmission capability. You can view the information
such as data receiving speed and sending speed.
Step 1 Select Main Menu > INFO > NETWORK >
⚫
The LOAD interface is displayed. See Figure 1-192.
⚫
⚫
Figure 1-192
⚫
⚫
Step 2 Click the LAN name that you want to view, for example, LAN1.
⚫
The system displays the information of data sending speed and receiving speed.
⚫
System displays LAN1 load by default.
⚫
Only one LAN load can be displayed at one time.
1.10.3.3 Network Test
You can test the network connection status between the Device and other devices.
Step 1 Select Main Menu > INFO > NETWORK > TEST.
⚫
The TEST interface is displayed. See Figure 1-193.
⚫
⚫
⚫
⚫
⚫
.
LOAD
