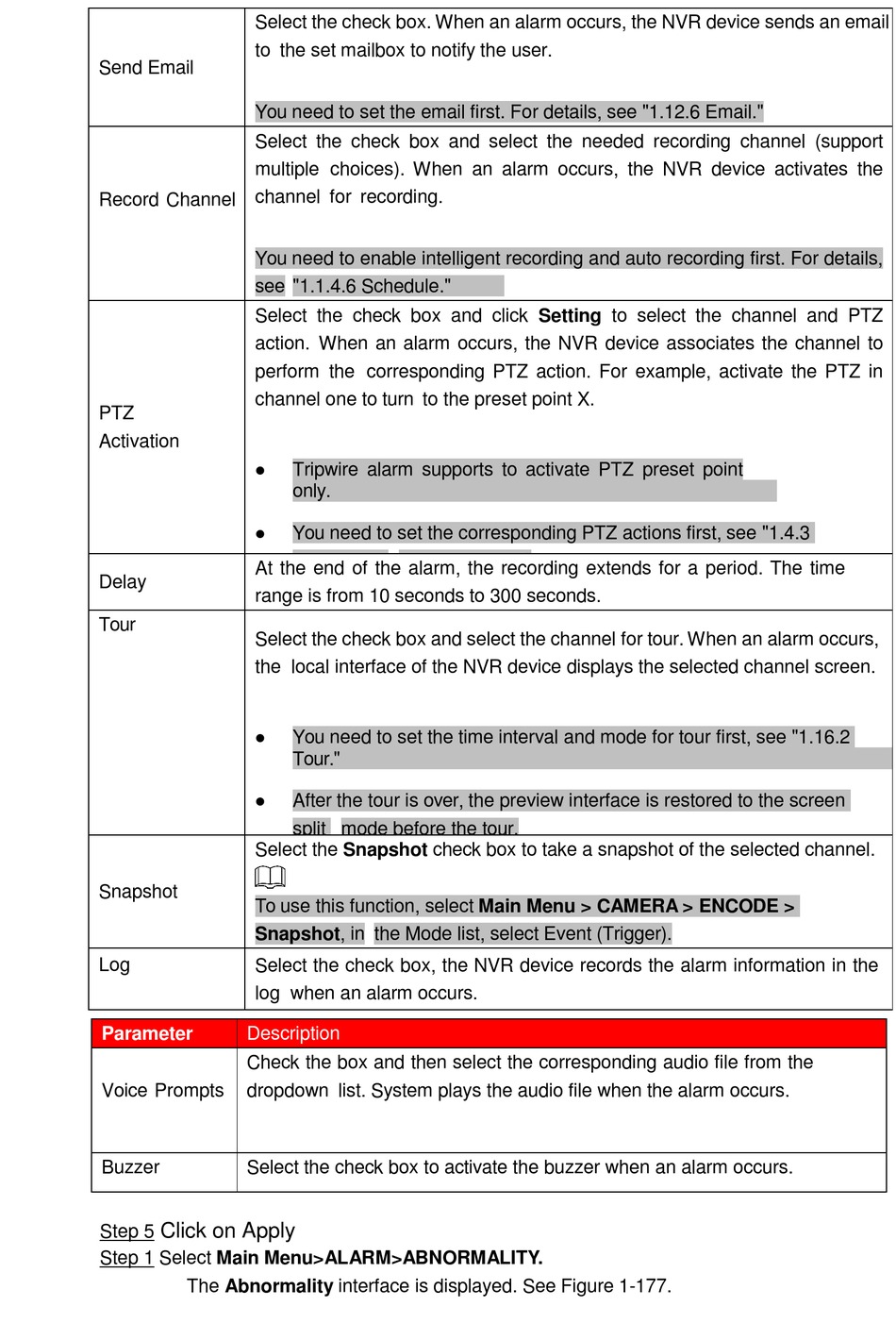

CP Plus Orange User Manual page 154

Select the check box. When an alarm occurs, the NVR device sends an email
to the set mailbox to notify the user.
Send Email
You need to set the email first. For details, see "1.12.6 Email."
Select the check box and select the needed recording channel (support
multiple choices). When an alarm occurs, the NVR device activates the
channel for recording.
Record Channel
You need to enable intelligent recording and auto recording first. For details,
see "1.1.4.6 Schedule."
Select the check box and click Setting to select the channel and PTZ
action. When an alarm occurs, the NVR device associates the channel to
perform the corresponding PTZ action. For example, activate the PTZ in
channel one to turn to the preset point X.
PTZ
Activation
⚫
⚫
At the end of the alarm, the recording extends for a period. The time
Delay
range is from 10 seconds to 300 seconds.
Tour
Select the check box and select the channel for tour. When an alarm occurs,
the local interface of the NVR device displays the selected channel screen.
⚫
⚫
Select the Snapshot check box to take a snapshot of the selected channel.
Snapshot
To use this function, select Main Menu > CAMERA > ENCODE >
Snapshot, in the Mode list, select Event (Trigger).
Log Select the check box, the NVR device records the alarm information in the
log when an alarm occurs.
Parameter Description
Check the box and then select the corresponding audio file from the
Voice Prompts dropdown list. System plays the audio file when the alarm occurs.
Buzzer Select the check box to activate the buzzer when an alarm occurs.
Refer to "1.17.1 File Manage" to add audio file first.
Click on Apply
Step 5
Step 1 Select Main Menu>ALARM>ABNORMALITY.
The Abnormality interface is displayed. See Figure 1-177.
Tripwire alarm supports to activate PTZ preset point
only.
You need to set the corresponding PTZ actions first, see "1.4.3
Configuring PTZ Functions."
You need to set the time interval and mode for tour first, see "1.16.2
Tour."
After the tour is over, the preview interface is restored to the screen
split mode before the tour.
