CP Plus Orange User Manual page 143

⚫

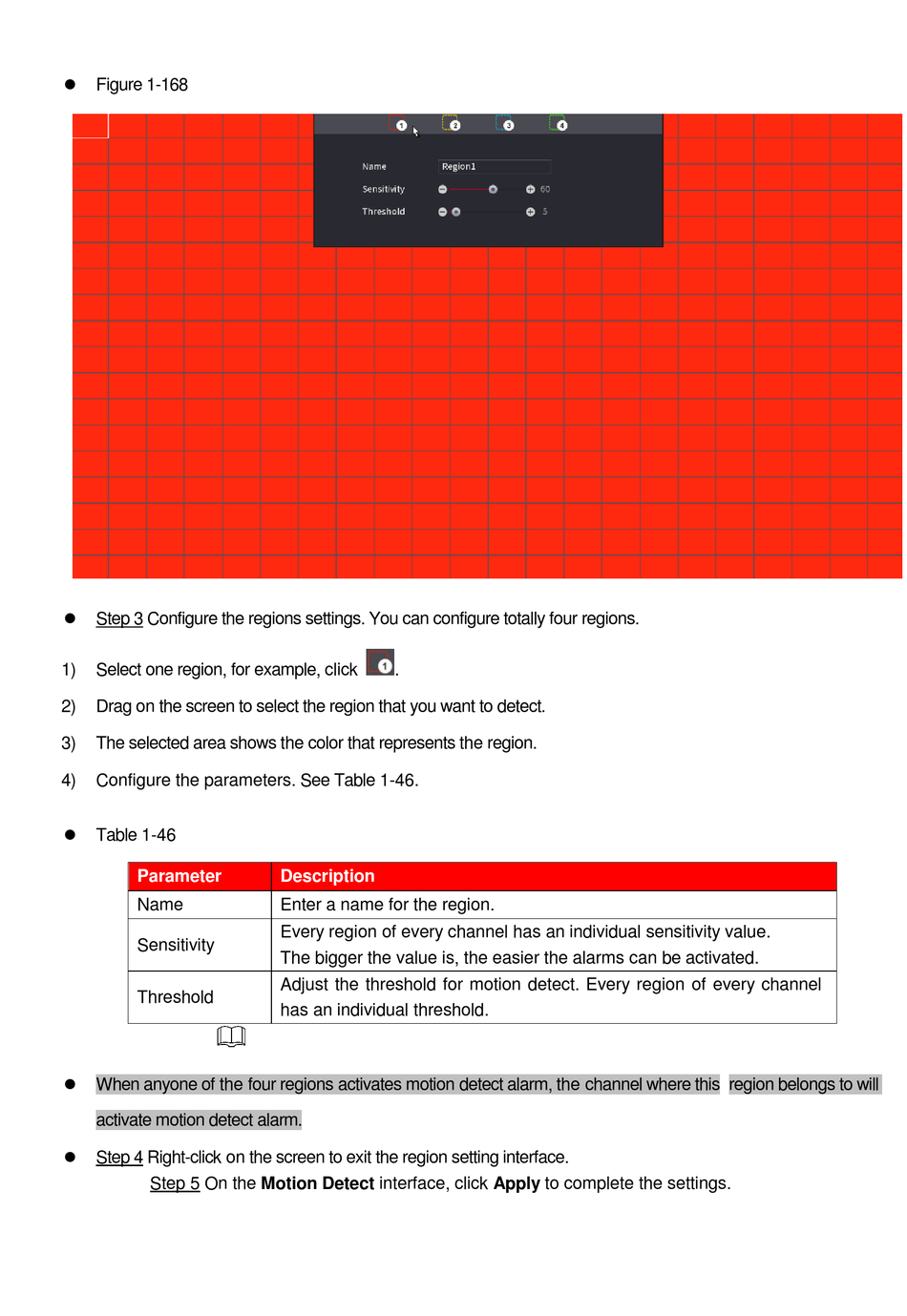

Figure 1-168
⚫
Step 3 Configure the regions settings. You can configure totally four regions.
1) Select one region, for example, click
2) Drag on the screen to select the region that you want to detect.
3) The selected area shows the color that represents the region.
4) Configure the parameters. See Table 1-46.
⚫
Table 1-46
Parameter
Name
Sensitivity
Threshold
⚫
When anyone of the four regions activates motion detect alarm, the channel where this region belongs to will
activate motion detect alarm.
⚫
Step 4 Right-click on the screen to exit the region setting interface.
Step 5 On the Motion Detect interface, click Apply to complete the settings.
.
Description
Enter a name for the region.
Every region of every channel has an individual sensitivity value.
The bigger the value is, the easier the alarms can be activated.
Adjust the threshold for motion detect. Every region of every channel
has an individual threshold.
