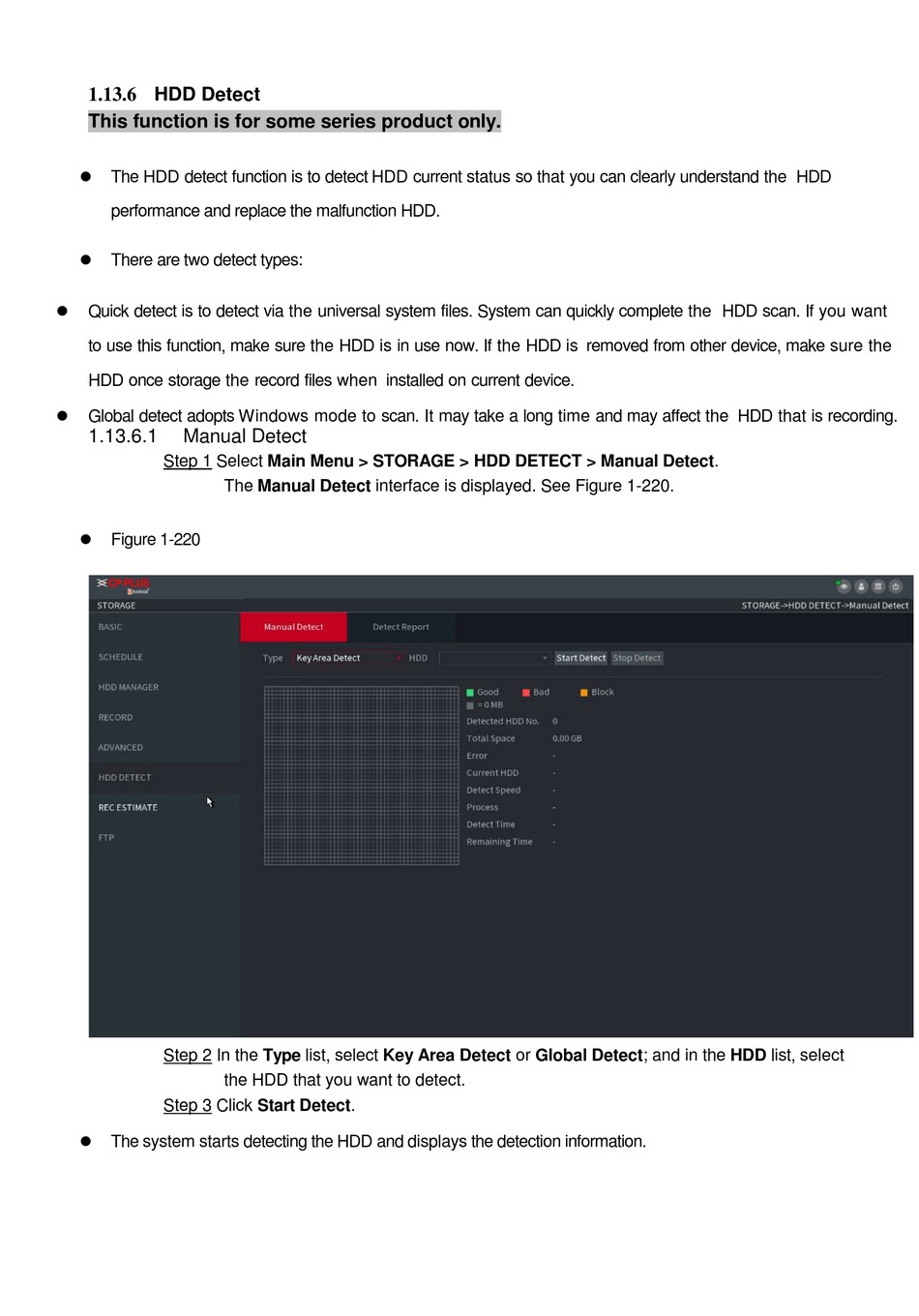

CP Plus Orange User Manual page 202

1.13.6 HDD Detect
This function is for some series product only.
⚫
The HDD detect function is to detect HDD current status so that you can clearly understand the HDD
performance and replace the malfunction HDD.
⚫
There are two detect types:
⚫
Quick detect is to detect via the universal system files. System can quickly complete the HDD scan. If you want
to use this function, make sure the HDD is in use now. If the HDD is removed from other device, make sure the
HDD once storage the record files when installed on current device.
⚫
Global detect adopts Windows mode to scan. It may take a long time and may affect the HDD that is recording.
1.13.6.1 Manual Detect
Step 1 Select Main Menu > STORAGE > HDD DETECT > Manual Detect.
The Manual Detect interface is displayed. See Figure 1-220.
⚫
Figure 1-220
Step 2 In the Type list, select Key Area Detect or Global Detect; and in the HDD list, select
the HDD that you want to detect.
Step 3 Click Start Detect.
⚫
The system starts detecting the HDD and displays the detection information.
