Panel Mounting the System
To mount the flat bezel panel PC into a panel, follow the
steps below.
1. Cut out a panel corresponding to the size,
PPC-3100 panel cutout dimension 265 x 210 mm
(10.43 x 8.26 in),
PPC-3120 panel cutout dimensions 311 x 240 mm
(12.24 x 9.44 in).
2. Install the panel PC in the cabinet, retrieve 8pcs hook
brackets and 8pcs M6 x 21 screws from the accessory
box.

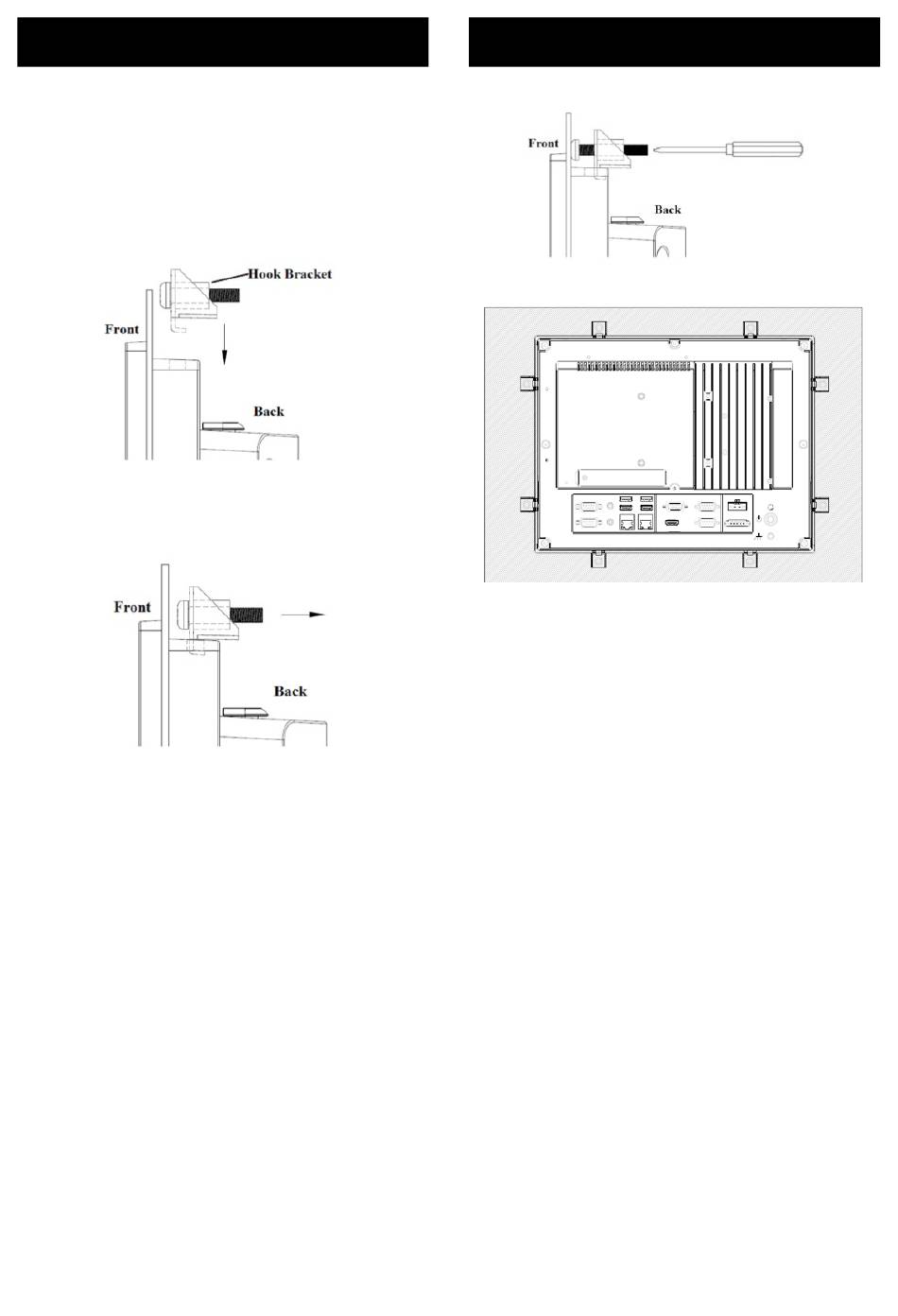

Hook brackets for panel mounting
3. Insert the hook brackets into the holes following the
direction of the arrows shown in Figure and hang the
panel PC.
Hook brackets location
Panel Mounting the System (Cont.)
4. Tighten the screws to affix the panel PC in place.
Fasten the hook bracket
PPC-3100/3120 Startup Manual 3
