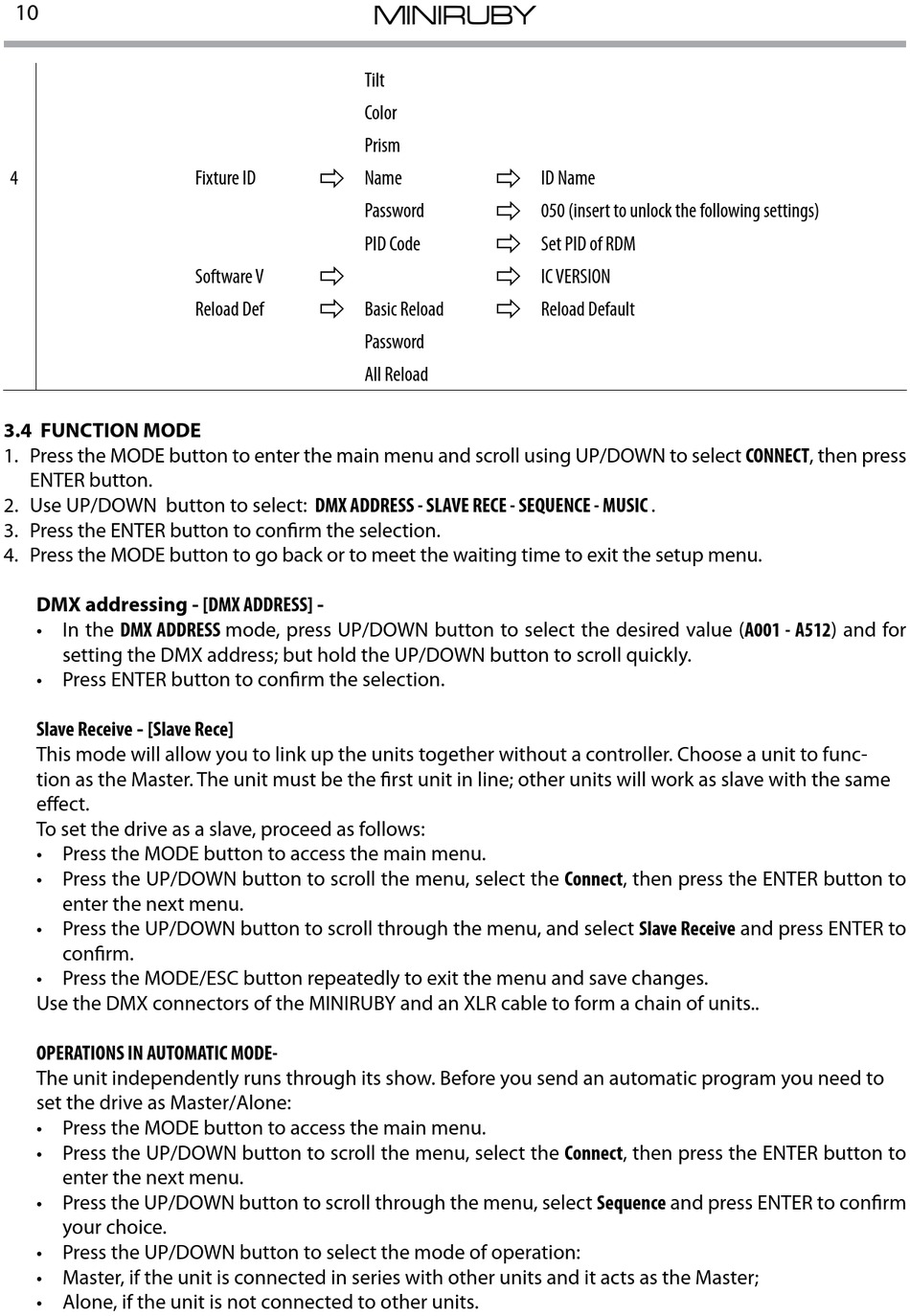

3.4 FUNCTION MODE

1. Press the MODE button to enter the main menu and scroll using UP/DOWN to select CONNECT, then press
ENTER button.
2. Use UP/DOWN button to select: DMX ADDRESS - SLAVE RECE - SEQUENCE - MUSIC .
3. Press the ENTER button to confirm the selection.
4. Press the MODE button to go back or to meet the waiting time to exit the setup menu.
DMX addressing - [DMX ADDRESS] -
• In the DMX ADDRESS mode, press UP/DOWN button to select the desired value (A001 - A512) and for
setting the DMX address; but hold the UP/DOWN button to scroll quickly.
• Press ENTER button to confirm the selection.
Slave Receive - [Slave Rece]
This mode will allow you to link up the units together without a controller. Choose a unit to func-
tion as the Master. The unit must be the first unit in line; other units will work as slave with the same
effect.
To set the drive as a slave, proceed as follows:
• Press the MODE button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, and select Slave Receive and press ENTER to
confirm.
• Press the MODE/ESC button repeatedly to exit the menu and save changes.
Use the DMX connectors of the MINIRUBY and an XLR cable to form a chain of units..
OPERATIONS IN AUTOMATIC MODE-
The unit independently runs through its show. Before you send an automatic program you need to
set the drive as Master/Alone:
• Press the MODE button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Sequence and press ENTER to confirm
your choice.
• Press the UP/DOWN button to select the mode of operation:
• Master, if the unit is connected in series with other units and it acts as the Master;
• Alone, if the unit is not connected to other units.
Tilt
Color
Prism
ð
Fixture ID Name
Password
PID Code
ð
Software V
ð
Reload Def Basic Reload
Password
All Reload
MINIRUBY
ð
ID Name
ð
050 (insert to unlock the following settings)
ð
Set PID of RDM
ð
IC VERSION
ð
Reload Default
