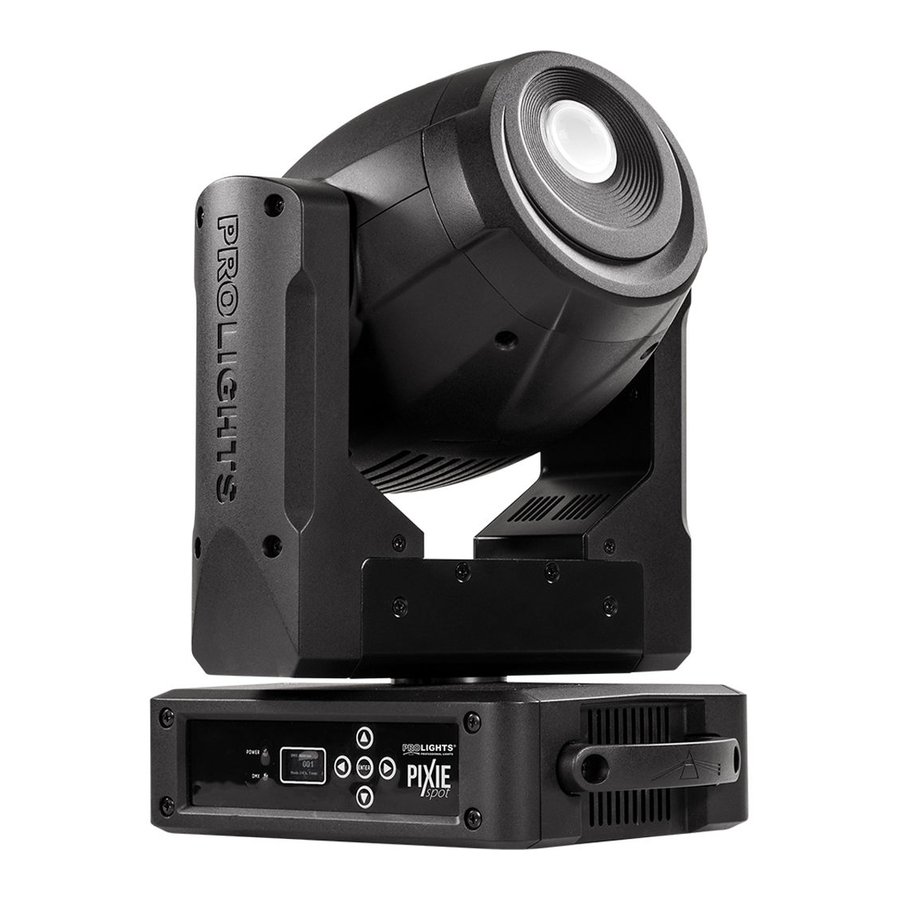

ProLights PIXIESPOT User Manual

Spot moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PIXIESPOT
SPOT MOVING HEAD
USER MANUAL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXIESPOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights PIXIESPOT

Summary of Contents for ProLights PIXIESPOT

  • Page 1 PIXIESPOT SPOT MOVING HEAD USER MANUAL...
  • Page 2 In order to improve the quality of products, PROLIGHTS reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.

  • Page 3: Table Of Contents

    3. 16 Fixture informations 4 Maintenance 4. 1 Maintenance and cleaning the unit 4. 2 Fuse replacement 4. 3 Trouble shooting • PIXIESPOT Packing content • Mount bracket • Power supply cable and signal cable • Safety rope • User manual...

  • Page 4: Pixiespot

    PIXIESPOT WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .

  • Page 5: Introduction

    60W RGBW/FC LED light source to perform limitless bright, intense and saturated colors, as well as proper whites. PIXIESPOT can be also controlled wireless through the optional USB Wi-Fi receiver in com- bination with Wifibox and the smartphone App SmartColor.
  • Page 6 PIXIESPOT ELECTRONICS • Dimmer: Linear 0~100% electronic dimmer • Dimmer Curves: Different dimming curves available • Strobe/Shutter:1/28 Hz, electronic • Operating Temperature: -10° ~ +45° • Flicker: Flicker free operation ELECTRICAL • Power Supply: 100-240V – 50/60Hz • Power Consumption (at 230V):118 W •...

  • Page 7: Operating Elements And Connections

    PIXIESPOT 1.3 OPERATING ELEMENTS AND CONNECTIONS 1. MOVING HEAD. 2. REVOLVING ARM. 3. HANDLE. 4. LED INDICATOR "POWER". 5. LED INDICATOR "DMX". 6. CONTROL PANEL with OLED display and 5 button used to access the control panel functions and manage them.

  • Page 8: Installation

    2.1 MOUNTING The PIXIESPOT may be set up on a solid and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a cross arm. The base plate is shown in fig.3. For fixing, stable mounting clips are required.

  • Page 9: Functions And Settings

    Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to reset all motors to their home position. Shortly after that the PIXIESPOT is ready for operation. To switch off, disconnect the mains plug from the socket. For a more convenient operation it is recommended to connect the unit to a socket which can be switched on and off via light switch.

  • Page 10: Menu Structure

    PIXIESPOT 3.3 MENU STRUCTURE MENU ð ð DMX Functions DMX Address Value (1-512) ð DMX Channels 15 CH 18 CH 23 CH ð ð Show setup Show Mode Show 1 Show 2 Show 3 Show 4 ð Focus Adjust 000 - 255 ð...
  • Page 11 PIXIESPOT ð Back Light ð Warn Cue ð Test Setup Auto Test ð ð ð Manual Test 000 - 255 ð Pan Fine 000 - 255 ð Tilt 000 - 255 ð Tilt Fine 000 - 255 ð Pan/Tilt Speed 000 - 255 ð...
  • Page 12 PIXIESPOT ð ð Information Fixture Time 0 - 9999 ð Software Version DISP V 1.0 CTR - XY V 1.0 CTR - LED V 1.0 ð LED Temperature 58°C...

  • Page 13: Dmx Addressing

    • Press repeatedly the button LEFT to return the menu mode. To able to operate the PIXIESPOT with a light controller, adjust the DMX start address for the first a DMX channel. If e. g. address 33 on the controller is provided for controlling the function of the first DMX channel, adjust the start address 33 on the PIXIESPOT.

  • Page 14: Connection Of The Dmx Line

    PIXIESPOT 3.5 CONNECTION OF THE DMX LINE DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped- ance and low capacity. The following diagram shows the connection mode: DMX - INPUT DMX - OUTPUT XLR plug XLR socket...

  • Page 15: Dmx Channels

    PIXIESPOT 3.7 DMX CHANNELS MODE MODE MODE FUNCTION Value 15 Ch 18 Ch 23 Ch 0~100% 000 - 255 PAN FINE 0~100% 000 - 255 TILT 0~100% 000 - 255 TILT FINE 0~100% 000 - 255 PAN/TILT SPEED Fast to slow...
  • Page 16 PIXIESPOT MODE MODE MODE FUNCTION Value 15 Ch 18 Ch 23 Ch Gobo 5 040 - 047 Gobo 6 048 - 055 Gobo 7 056 - 063 Gobo 1 Shaking 064 - 073 Gobo 2 Shaking 074 - 082 Gobo 3 Shaking...
  • Page 17 PIXIESPOT MODE MODE MODE FUNCTION Value 15 Ch 18 Ch 23 Ch R:0~100% / G:0 / B:100% / W:0 091 - 110 R:100% / G:0 / B:100%~0 / W:0 111 - 130 R:100% / G:0~100% / B:0~100% / W:0 131 - 150...

  • Page 18: Dmx Configuration

    • Press the buttons UP/DOWN to select the desired configuration 15CH - 18CH - 23CH. ; Then press the button ENTER to save. • Press repeatedly the button LEFT to return the menu mode. The tables on page 14 indicate the operating mode and DMX value. The PIXIESPOT is equipped with 3-pole XLR connections. 3.9 AUTOSHOW...

  • Page 19: Fixture Settings

    • Press the buttons UP/DOWN to select the desired option item and press the button ENTER to confirm: - Master/Slave - This configuration allows to connect many units PIXIESPOT. The first will be set as Master and the others will work as Slave with the same effect. Press the buttons UP/DOWN to set the units as master or slave.

  • Page 20: Reset Functions

    PIXIESPOT • Press the button LEFT to enter the menu mode. • Use the buttons UP/DOWN to select the Test Setup item. Press the button ENTER to confirm. • Press the buttons UP/DOWN to select the Auto Test item. • To confirm and start the automatic test press the ENTER button.

  • Page 21: Maintenance

    PIXIESPOT - 4 - MAINTENANCE 4.1 MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • Switch off the unit, unplug the main cable and wait until the unit has cooled down.

  • Page 22: Troubleshooting

    PIXIESPOT 4.3 TROUBLESHOOTING Problems Possible causes Checks and remedies No mains supply Check the power supply voltage • • Dimmer fader set to 0 Increase the value of the dimmer channels • • All color faders set to 0 Increase the value of the color channels •...
  • Page 23 Note...
