DIN Rail Mount Applications

To mount the FEU26 on a DIN rail:
1. Securely mount a 20.3 cm (8 in.) (or longer) section of DIN rail horizontally and centered in the required space.

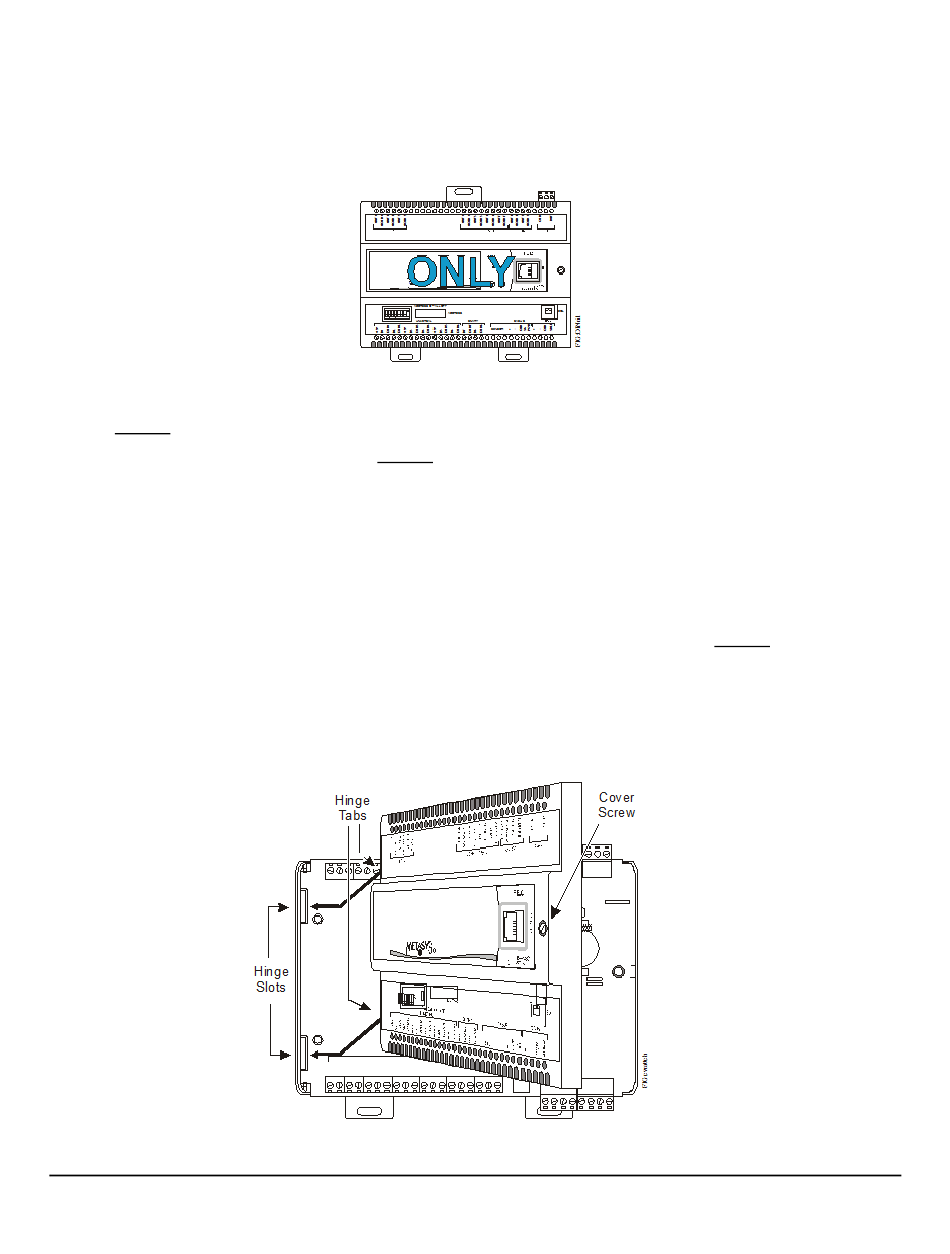

Figure 4: Required Orientation for DIN Rail Mount Applications
2. Ensure that the bottom two mounting clips are pulled outward and snapped firmly into the extended position.
See .
Figure 2
3. Hang the FEU26 by the DIN rail hooks (
rail channel snugly against the tracks of the DIN rail.
4. Push the bottom mounting clips up to secure the FEU26 on the DIN rail tracks.
To remove the FEU26 from the DIN rail, snap the bottom DIN clips to the extended position, and carefully lift the
FEU26 off the DIN rail.

Attaching the Cover

You may attach the cover before or after wiring the FEU26.
1. Place the hinge tabs (cover) onto the top of the hinge slots (the mounting base). See
Note: Do not fully insert the tabs into the slots. If the tabs are fully inserted into the slots, the cover may not close.
2. Close the cover and tighten the cover screw to secure the cover to the base.
Figure 2
Figure 5: Attaching the Cover to the Mounting Base
FEU2610 Field Equipment Controller Installation Instructions
) on the top track of the DIN rail, and position the FEU26 DIN
5
.
