F4-DLK0350 Local Controller Display
The F4-DLK0350 Local Controller Display is a stand-alone
local display that provides enhanced local monitoring of
controlled field equipment. The F4-DLK0350 features a 3.5
in. (8.9 cm), 320 x 240 pixel resolution color display, and
navigation keypad. The display provides an intuitive local
interface for users to monitor point values and status,
view alarms, view trends, override outputs, and adjust
setpoints and parameters. The F4-DLK0350 can be panel
or surface mounted. You can also use it as a portable
device by plugging it into a compatible controller while on-
site. You can connect the F4-DLK0350 to the SA Bus of a
controller that does not have an on-board display.
The F4-DLK0350 local display can be connected to the
following compatible controller devices:
• F4-CG series General Purpose Application Equipment
Controllers
• F4-CV series VAV Box Controllers
• PCA series Advanced Application Field Equipment
Controllers
• PCG series Field Equipment Controllers
• PCV16, PCV18, and PCV19 series VAV box controllers
• VAV17 series VAV box controllers
• F4-SNC series Network Control Engines

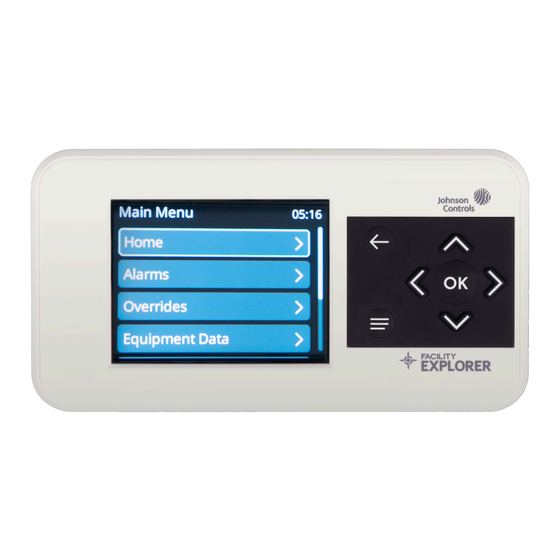

Figure 1: F4-DLK0350 Local Controller Display
F4-DLK0350 Product Bulletin
Features and benefits
At-a-glance system status
Provides quick access to view the current status of
monitored points without logging in.
Sleek and modern packaging and styling
Provides a modern, aesthetically pleasing industrial
design.
Local access to operating parameters, setpoints,
alarms, and trends
Provides end users and field technicians the ability to
quickly troubleshoot issues and restore control while
being in close proximity to the associated mechanical
equipment.
Menu-based screen design
Provides an intuitive user interface through the use of a
simple keypad.
Tactile keypad
Provides haptic feedback to the user upon interaction.
Back-lit LCD
Provides constant backlight that activates during user
interaction to ensure excellent readability in low-light
environments.
Customized user preferences
Use to specify settings such as password timeout,
backlight intensity, time and date format, and many more.
Password protection (Optional)
Secures the display from unauthorized users.
