Steps

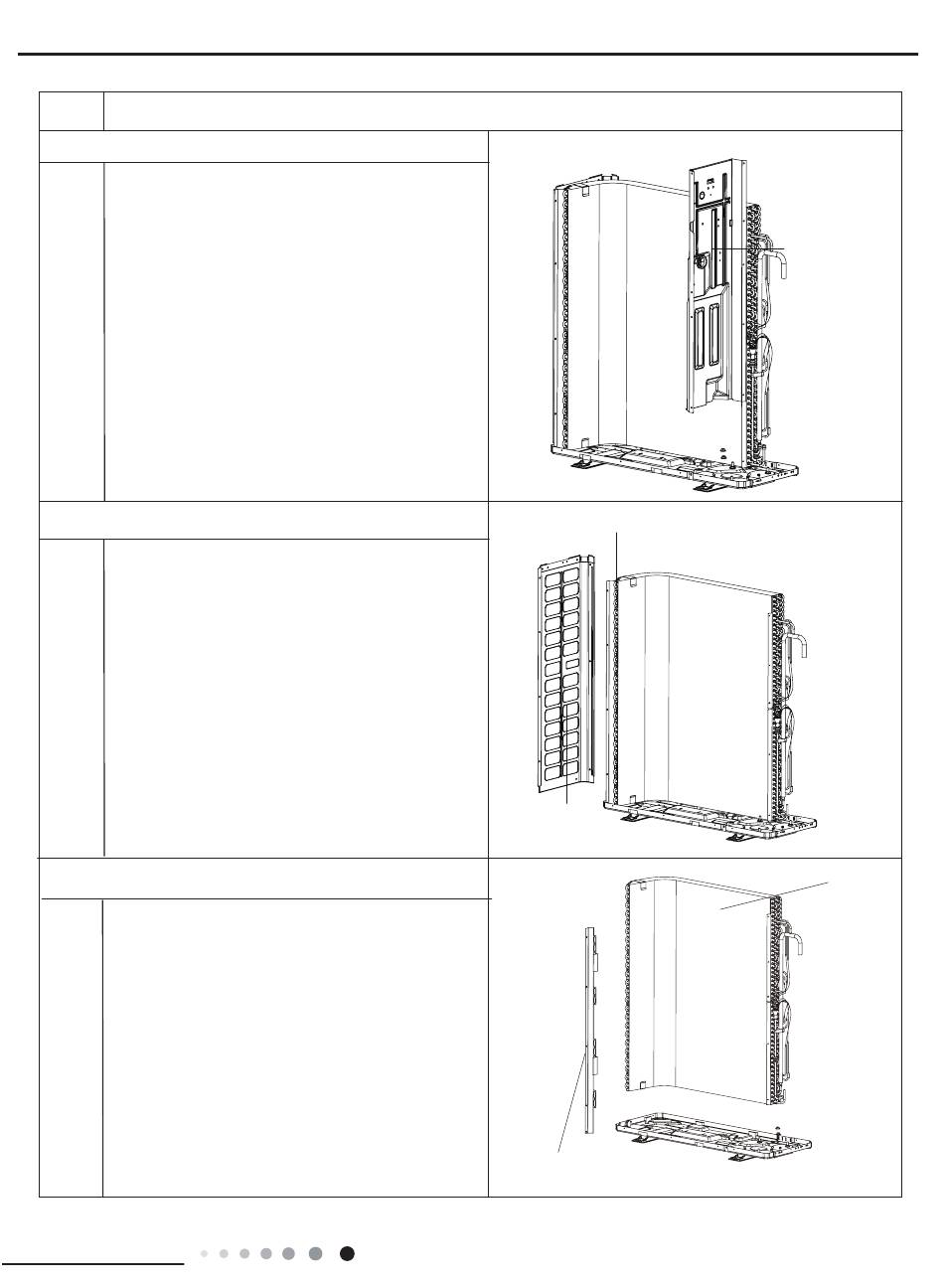

23. Remove middle isolation sheet
Remove screws connecting middle isolation sheet
and support plate of condenser, chassis, and then
remove the middle isolation sheet.
24.Remove left side plate
Remove screws connecting left side plate and
support plate of condenser, chassis, and then
remove the left side plate.
25. Remove condenser
Remove 5 screws connecting condenser and chassis,
and then remove the condenser. Remove 2 screws
connecting support plate of condenser and condenser,
and then remove the support plate of condenser.
Installation and Maintenance
Procedure
support plate of condenser
left side plate
support plate of condenser
middle isolation
sheet
condenser
57
