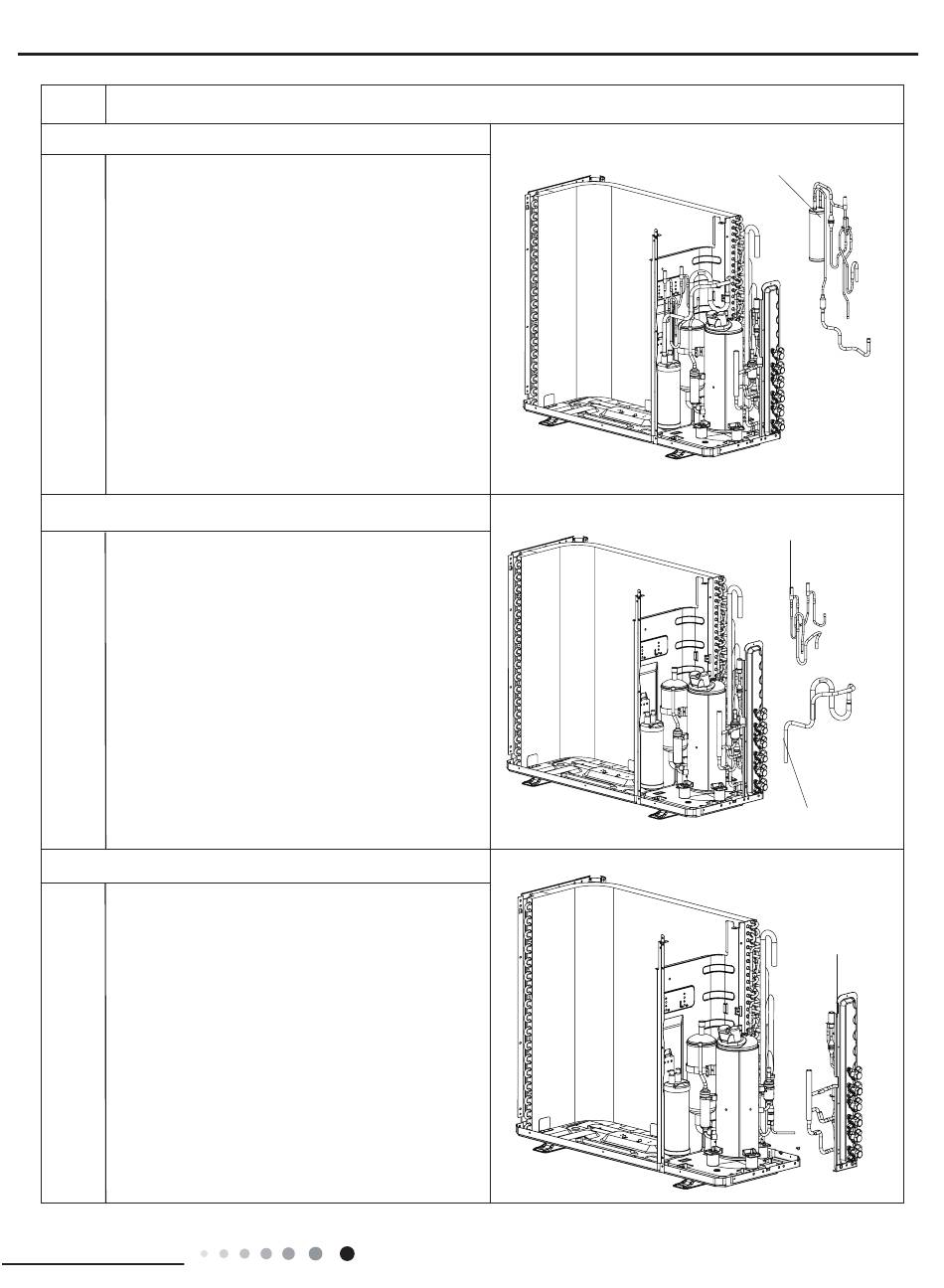

10. Remove flash vaporizer assy
Unsolder all spot welds cflash vaporizer assy, and
then remove the flash vaporizer assy.
11. Remove electromagnetic valve sub-assy and inhalation
tube sub-assy
Unsolder all spot welds electromagnetic valve sub-
assy and then remove the electromagnetic valve sub-
assy.
Unsolder all spot welds inhalation tube sub-assy and
then remove the inhalation tube sub-assy.
12. Remove valve support
Unsolder all spot welds connected with valve support
and then remove the valve support.
Note:When unsoldering the spot weld, wrap the gas
valve and liquid valve with wet cloth completely to
avoid damage to valve due to high temperature.
Installation and Maintenance
Procedure
electromagnetic valve sub-assy
flash vaporizer assy
inhalation tube sub-assy
valve support
