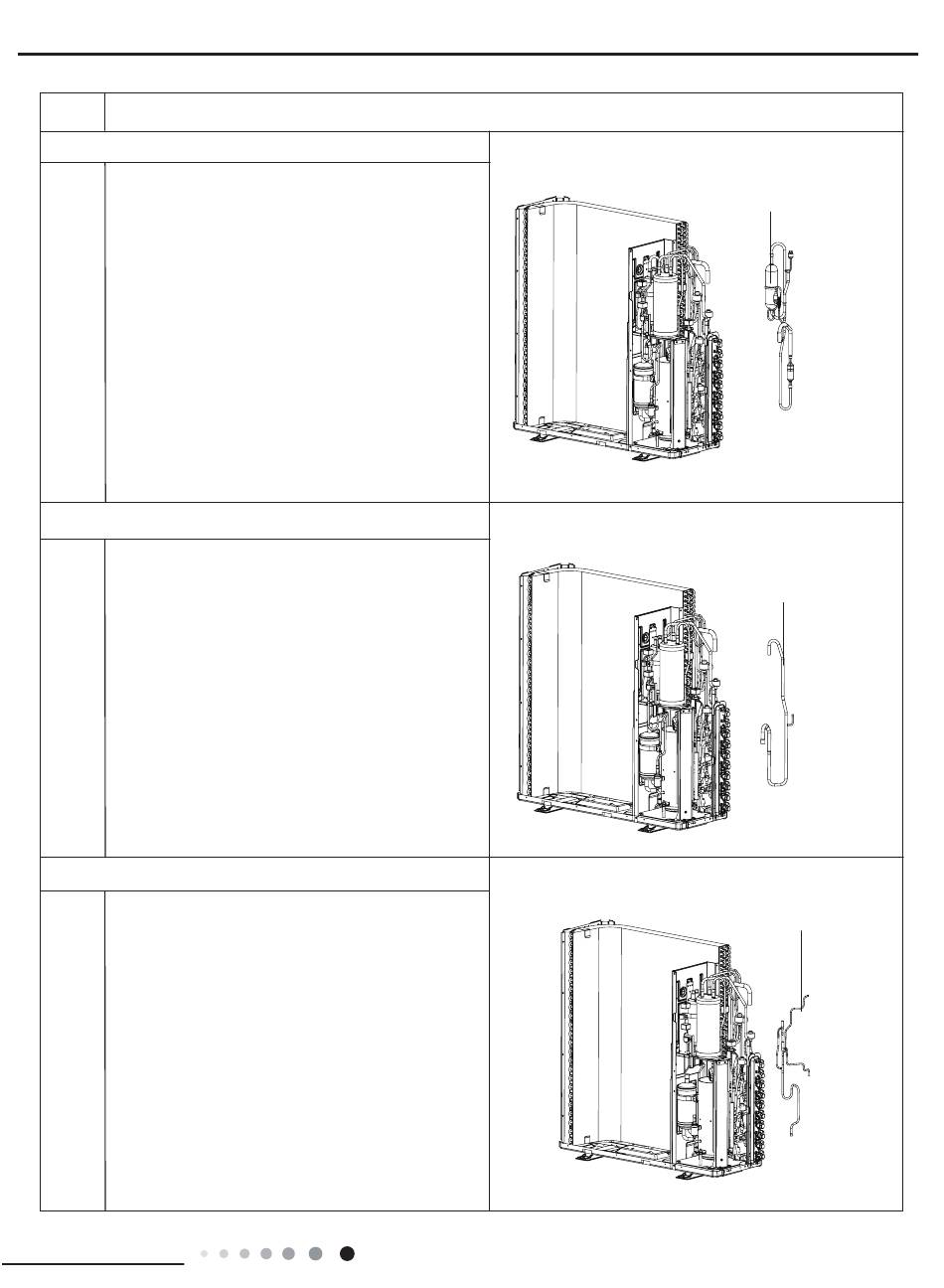

11. Remove oil separator sub-assy
Unsolder all spot welds oil separator sub-assy and
then remove the oil separator sub-assy.
Note:When unsoldering the spot weld, wrap the gas
valve and liquid valve with wet cloth completely to
avoid damage to valve due to high temperature.
12. Remove
inhalation tube sub-assy
Remove all spot welds inhalation tube sub-assy, and
then remove the inhalation tube sub-assy.
13. Remove electromagnetic valve sub-assy
Remove all spot welds electromagnetic valve sub-
assy and then remove the electromagnetic valve sub-
assy.
Installation and Maintenance
Procedure
oil separator sub-assy
inhalation tube sub-
assy
electromagnetic
valve sub-assy
53
