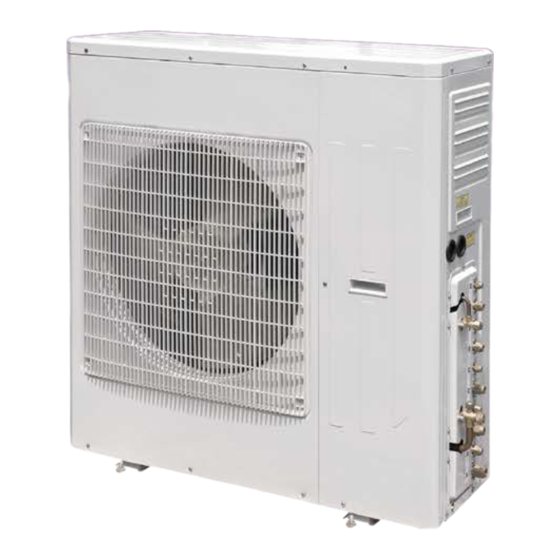

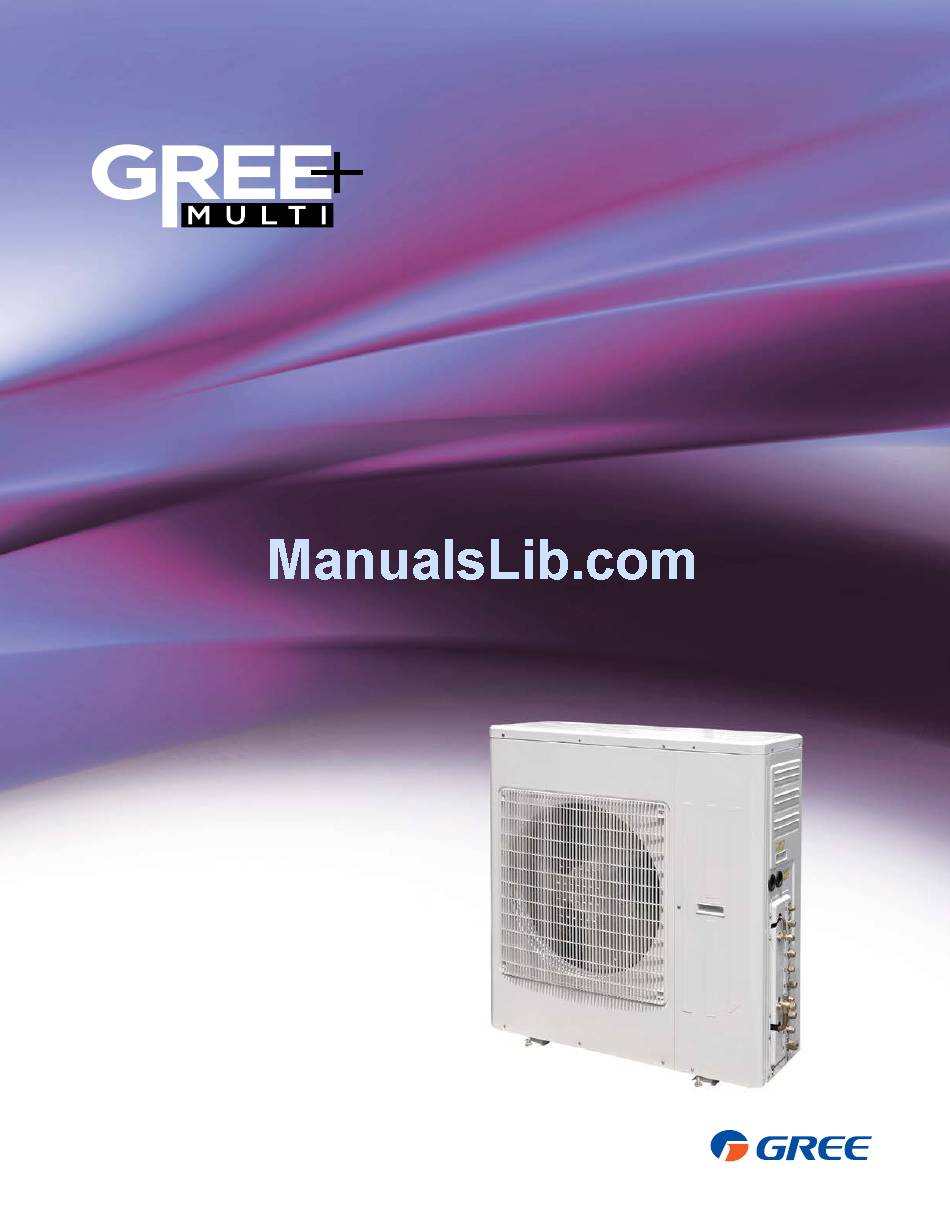

- Page 1 Technical Product Guide MULTI OUTDOOR UNITS Models: MULTI18HP230V1AO MULTI24HP230V1AO MULTI30HP230V1AO MULTI36HP230V1AO MULTI42HP230V1AO...
-
Page 2: Table Of Contents
Table of Contents Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Features and Benefits . -
Page 3: Product Overview
When laying out a new project, you’ll appreciate the flexibility of Gree’s Multi Zone Systems. A single outdoor unit can simultaneously power up to five indoor units while eliminating expensive ductwork. Without those ducts, your installation is simpler, faster and more cost-effective. - Page 4 Condensate Water Too High troubleshooting and shorten repair times. Outdoor Coil Sensor Failure Flexible Design Gree’s Multi Zone systems have many advantages One outdoor unit for both the property owner and the installer. can power up to Up to five indoor units, powered by a single 5 indoor units.
-
Page 5: Features And Benefits
+Multi Outdoor Units Each +Multi heat pump is powered by Gree’s energy efficient G-10 Inverter and a variable speed compressor. These units can heat and cool up to five zones without distribution boxes, and all offer the G-10 advantages of energy savings, noise reduction and room temperature consistency. - Page 6 FEATURES AND BENEFITS Low Voltage Start Up Having stable electrical power is not always an option. The Gree Multi Zone units will operate from 170v to 265v which is suitable for unstable power supply areas. Self-Diagnosis With an on-board computer using real-time diagnostics, the Gree Multi Zone system helps to prolong its own life.
-
Page 7: Product Nomenclature/Ahri Certification
Electrical Rating AC - Cooling Only 230V - 208/230V 60Hz 1PH HP - Heat Pump 115V - 115V 60Hz 1PH HC - Heat/Cool AHRI CERTIFICATION MODEL NUMBER BRAND AHRI CERTIFICATION MULTI18HP230V1AO GREE 7084754 MULTI24HP230V1AO GREE 7084908 MULTI30HP230V1AO GREE 7084759 MULTI36HP230V1AO... -
Page 8: Product Performance Data
3. All system ratings are based on fan coil units operating at high fan speed. Consult Physical Data tables for air flows at selected fan speeds. Legend: EER - Energy Efficiency Ratio HSPF - Heating Seasonal Performance Ratio SEER - Seasonal Energy Efficiency Ratio NUMBER OF PORTS MODEL NUMBER BRAND FOR INDOOR UNITS MULTI18HP230V1AO MULTI24HP230V1AO MULTI30HP230V1AO MULTI36HP230V1AO MULTI42HP230V1AO... -
Page 9: Air Flow Data
+Multi Outdoor Units AIR FLOW DATA Outdoor Unit MODEL NUMBER AIR FLOW (CFM) MULTI18HP230V1A 1,530 MULTI24HP230V1A 1,530 MULTI30HP230V1A 1,530 MULTI36HP230V1A 2,177 MULTI42HP230V1A 3,237 SOUND DATA Outdoor Unit MODEL NUMBER SOUND POWER SOUND PRESSURE MULTI18HP230V1A 66 dBA 56 dBA MULTI24HP230V1A 66 dBA 56 dBA MULTI30HP230V1A 66 dBA... -
Page 10: Refrigerant Charge
REFRIGERATION SPECIFICATIONS & DATA Refrigerant Charge FACTORY MAX TOTAL PIPE ADDITIONAL REFRIGERANT SYSTEM LENGTH W/O ADDING CHARGE MODEL NUMBER TYPE CHARGE REFRIGERANT LEVEL MULTI18HP230V1A R-410A 48 oz. 33 ft. 0.2 oz./ft. MULTI24HP230V1A R-410A 78 oz. 98 ft. 0.2 oz./ft. MULTI30HP230V1A R-410A 78 oz. - Page 11 +Multi Outdoor Units PIPING HEIGHT REQUIREMENTS ...Ln Refrigerant Piping Height MAX ELEVATION MAX ELEVATION MODEL NUMBER BETWEEN OUTDOOR & BETWEEN INDOOR UNITS (H1) INDOOR UNITS (H1) MULTI18HP230V1A 33 ft. 16 ft. MULTI24HP230V1A 66 ft. 25 ft. MULTI30HP230V1A 66 ft. 25 ft. MULTI36HP230V1A 82 ft.
-
Page 12: Electrical Data
ELECTRICAL DATA Outdoor Unit RATED POWER VOLTAGE RATED INPUT POWER SUPPLY RANGE (watts) MODEL NUMBER (volt-phase-hz) (volts) COOLING HEATING** MULTI18HP230V1A 208/230v-1ph-60hz 187-253 MULTI24HP230V1A 208/230v-1ph-60hz 187-253 MULTI30HP230V1A 208/230v-1ph-60hz 187-253 MULTI36HP230V1A 208/230v-1ph-60hz 187-253 MULTI42HP230V1A 208/230v-1ph-60hz 187-253 Outdoor Unit RATED INPUT CURRENT (amps) MIN CIRCUIT MAX FUSE MODEL NUMBER... -
Page 13: Dimensional Specifications
+Multi Outdoor Units DIMENSIONAL SPECIFICATIONS Model No: MULTI18HP230V1A 18,000 BtuH Suction/Gas Line Port Size Port A 3/8-in OD Flared Port B 3/8-in OD Flared Liquid Line Port Size Port A 1/4-in OD Flared Port B 1/4-in OD Flared Model No: MULTI24HP230V1A 24,000 BtuH Suction/Gas Line Port Size Port A... - Page 14 DIMENSIONAL SPECIFICATIONS Model No: MULTI30HP230V1A 30,000 BtuH Suction/Gas Line Port Size Port A 3/8-in OD Flared Port B 3/8-in OD Flared Port C 3/8-in OD Flared Port D 3/8-in OD Flared Liquid Line Port Size Port A 1/4-in OD Flared Port B 1/4-in OD Flared Port C...
- Page 15 +Multi Outdoor Units DIMENSIONAL SPECIFICATIONS Model No: MULTI36HP230V1A 36,000 BtuH Suction/Gas Line Port Size Port A 3/8-in OD Flared Port B 3/8-in OD Flared Port C 1/2-in OD Flared Port D 1/2-in OD Flared Port E 5/8-in OD Flared Liquid Line Port Size Port A 1/4-in OD Flared Port B...
-
Page 16: Clearance Specifications
MINIMUM OUTDOOR CLEARANCE SPECIFICATIONS The unit installation must meet or exceed the following minimum clearances for proper operation. Air Inlet Air Outlet Outdoor Unit Minimum Distance 20 in 24 in 78 in 12 in 20 in... -
Page 17: Electrical Wiring
+Multi Outdoor Units ELECTRICAL WIRING The main power is supplied to the outdoor unit. System must be on a single dedicated circuit. Use appropriate wire size and circuit breaker (or fuse) size for proper system overcurrent protection. Follow all local building codes and NEC (National Electrical Code) regulations. -
Page 18: Condensate Removal
ELECTRICAL WIRING Local codes may require a disconnect switch within sight of the indoor unit. For these installations, use a DFS Disconnect Switch Accessory Kit (Part No: DFS-SWITCH-A) to break wires going to the N(1), 2, 3, terminals on the indoor unit, as shown in the wiring diagram below: Interconnecting Cable with Disconnect Switch Wiring Diagram CONDENSATE REMOVAL Install condensate drain to bottom of outdoor unit to safely and effectively route condensate water to a... -
Page 19: Indoor Unit Combinations
+Multi Outdoor Units INDOOR UNIT COMBINATIONS SELECTION CRITERIA When selecting a variable speed system, match the system capacity to the calculated load of the building. Since a variable speed system can accommodate a wide range of loads, it is important to understand the percentage of time that the system will be required to run at both maximum and minimum load points. - Page 20 INDOOR UNIT COMBINATIONS Model No: MULTI24HP230V1A 24,000 BtuH Cooling Capacity (BtuH) RATED SYSTEM CAPACITY RATING INDOOR INDOOR INDOOR INDOOR UNITS CAPACITY (MIN – MAX) UNIT A UNIT B UNIT C COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) 9K+9K 18,000 6,824~26,600 9,000 9,000 9K+12K 21,000...
- Page 21 +Multi Outdoor Units INDOOR UNIT COMBINATIONS Model No: MULTI30HP230V1A 30,000 BtuH Cooling Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR SYSTEM RATING INDOOR UNITS UNIT A UNIT B UNIT C UNIT D CAPACITY (MIN – MAX) COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) (BtuH)
- Page 22 INDOOR UNIT COMBINATIONS Model No: MULTI30HP230V1A 30,000 BtuH (cont.) Heating Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR SYSTEM RATING INDOOR UNITS UNIT A UNIT B UNIT C UNIT D CAPACITY (MIN – MAX) COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) 9K+12K+18K 29,000...
- Page 23 +Multi Outdoor Units INDOOR UNIT COMBINATIONS Model No: MULTI36HP230V1A 36,000 BtuH (cont.) Cooling Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR SYSTEM RATING INDOOR UNITS UNIT A UNIT B UNIT C UNIT D CAPACITY (MIN – MAX) COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH)
- Page 24 INDOOR UNIT COMBINATIONS Model No: MULTI36HP230V1A 36,000 BtuH (cont.) Heating Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR SYSTEM RATING INDOOR UNITS UNIT A UNIT B UNIT C UNIT D CAPACITY (MIN – MAX) COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) (BtuH) 9K+9K+12K 27,024...
- Page 25 +Multi Outdoor Units INDOOR UNIT COMBINATIONS Model No: MULTI42HP230V1A 42,000 BtuH Cooling Capacity (BtuH) CAPACITY RATED INDOOR INDOOR INDOOR INDOOR INDOOR RATING SYSTEM INDOOR UNITS UNIT A UNIT B UNIT C UNIT D UNIT E (MIN – MAX) CAPACITY COMBINATIONS (BtuH) (BtuH) (BtuH)
- Page 26 INDOOR UNIT COMBINATIONS Model No: MULTI42HP230V1A 42,000 BtuH (cont.) Cooling Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR INDOOR RATING SYSTEM INDOOR UNITS UNIT A UNIT B UNIT C UNIT D UNIT E (MIN – MAX) CAPACITY COMBINATIONS (BtuH) (BtuH) (BtuH) (BtuH) (BtuH)
- Page 27 +Multi Outdoor Units INDOOR UNIT COMBINATIONS Model No: MULTI42HP230V1A 42,000 BtuH (cont.) Heating Capacity (BtuH) RATED CAPACITY INDOOR INDOOR INDOOR INDOOR INDOOR RATING INDOOR UNITS SYSTEM UNIT A UNIT B UNIT C UNIT D UNIT E CAPACITY (MIN – MAX) COMBINATIONS (BtuH) (BtuH)
-
Page 28: Extended Performance Ratings
EXTENDED PERFORMANCE RATINGS Model No: MULT18HP230V1A 18,000 BtuH Cooling Performance INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH OUTDOOR AMBIENT OUTDOOR AMBIENT 62°F 62°F 67°F 67 F 72°F 72 F TEMPERATURE (DB) TEMPERATURE (DB) 25°F 22,145 16,443... -
Page 29: Cooling Performance
+Multi Outdoor Units EXTENDED PERFORMANCE RATINGS Model No: MULT24HP230V1A 24,000 BtuH Cooling Performance INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH OUTDOOR AMBIENT 62°F 67°F 72°F TEMPERATURE (DB) 25°F 31,988 23,751 34,575 25,032 36,959 26,610 35°F 31,260 23,723 33,291 24,302 34,907 25,238 45°F 29,716... - Page 30 EXTENDED PERFORMANCE RATINGS Model No: MULTI30HP230V1A 30,000 BtuH Cooling Performance INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH OUTDOOR AMBIENT 62°F 67°F 72°F TEMPERATURE (DB) 25°F 35,679 26,492 38,564 27,920 41,224 29,681 35°F 34,867 26,460 37,132 27,106 38,935 28,150 45°F 33,144 25,454 35,444 26,300...
- Page 31 +Multi Outdoor Units EXTENDED PERFORMANCE RATINGS Model No: MULTI36HP230V1A 36,000 BtuH Cooling Performance INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH OUTDOOR AMBIENT 62°F 67°F 72°F TEMPERATURE (DB) 25°F 41,830 31,059 45,213 32,734 48,331 34,798 35°F 40,878 31,022 43,534 31,780 45,648 33,004 45°F 38,859...
-
Page 32: Extended Performance Ratings
EXTENDED PERFORMANCE RATINGS Model No: MULTI42HP230V1A 42,000 BtuH Cooling Performance INDOOR ENTERING AIR TEMPERATURES (DB) 50% RH OUTDOOR AMBIENT 62°F 67°F 72°F TEMPERATURE (DB) 25°F 49,212 36,540 53,192 38,511 56,860 40,939 35°F 48,092 36,497 51,216 37,388 53,704 38,828 45°F 45,716 35,110 48,888 36,275... -
Page 33: Limited Warranty Statement
MULTI36HP230V1AO MULTI42HP230V1AO GREE distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows. All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. - Page 34 LIMITATIONS OF WARRANTIES All implied warranties and/or conditions (including implied warranties or conditions of merchantability and fitness for a particular use or purpose) are limited to the duration of this limited warranty, some states or provinces do not allow limitations on how long an implied warranty or condition lasts, so the above may not apply to you.
- Page 35 Specifications in this booklet are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs without notice or without incurring obligations. All rights reserved. Cat# +MULTI-OD-1TPG Version: Original © 2014 Gree Electric Appliance, Inc.
