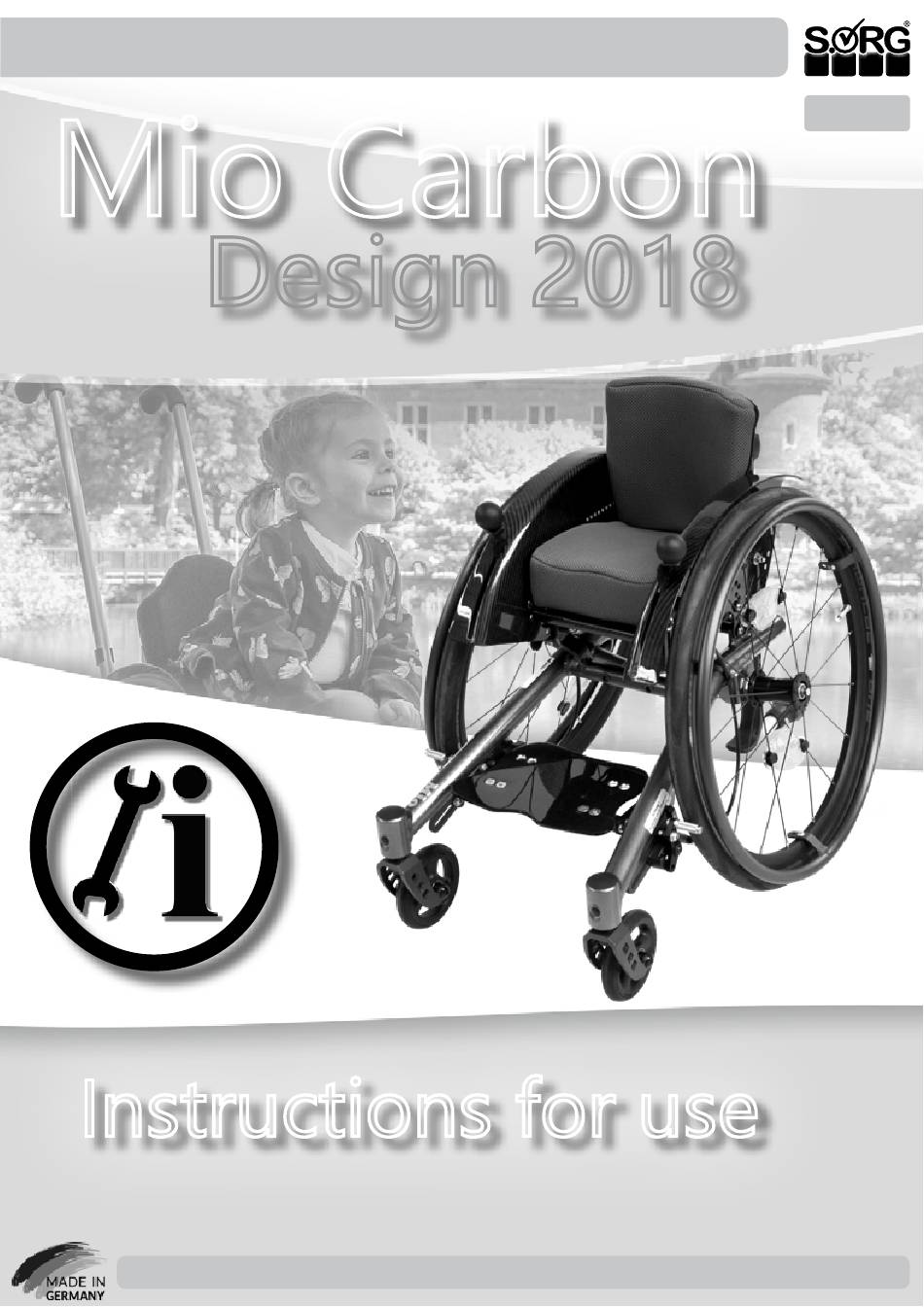

- Page 1 Instructions for use Mio Carbon (Design 2018) Mio Carbon Design 2018 Instructions for use 2019-08-16 Instructions of use Mio Carbon (Design 2018) Unique people, unique solutions. 1 of 32...
- Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...
-
Page 3: Table Of Contents
Table of content 1 Wheelchair overview 4 Repairs and maintenance 4.1 Repairs 2 General Information 4.2 Spare parts 2.1 Preamble 4.3 Maintenance 2.2 General use indications 4.4 Disinfection 2.2.1 Signs and Symbols 4.5 Storage 2.2.2 Intensions 4.6 Reinstatement 2.2.3 Indication 4.7 Disposal 2.2.4 counterindications 4.8 Maintenance/ Inspection... -
Page 4: Wheelchair Overview
1 Wheelchair overview 1 back cushion 2 brake lever (for Bowden cable brake) 3 anatomical seat cushion 4 frame 5 caster fork 6 caster 7 foot plate 8 rear wheel 9 hand rim 10 back 11 stabiliser bar 12 side guard 13 rear wheel 14 anti-tipper 4 of 32... -
Page 5: General Information
2 General Information 2.1 Preamble Welcome to the SORG family - thank you for your trust in us and for choosing our product. This wheelchair has been individually made to measure your particular needs. In order to be able to use the wheelchair in everyday life, you receive the following usage and setting instructions which can be done without tools. -
Page 6: Signs And Symbols
2 General Information 2.2.1 Signs and Symbols ATTENTION! Warnings for perso- important detail nal Safety aspects that are of the utmost importance. correct or proper use/setting CORRECT safety adjustment/ use incorrect or improper use/setting WRONG adjustment/ use reference from text to detai ( A ) ;... -
Page 7: Intensions
2 General Information 2.2.2 Intensions Mio Carbon (Design 2018) is a light active-wheelchair for children and adults for indoors and outdoors. km/h The wheelchair only serves to carry the person for whom it has been adapted, by a qualified specialist retailer. In the case of children or persons with impaired ability to act, the parents or authorized caregi- vers must ensure that the instructions in the Instructions for use are followed. -
Page 8: General Safety Instructions
2 General Information 2.3 General safety instructions Before each use be sure to check: • frame, back tubes, attachments and accessories for visible damage, bends, cracks or mis- sing/loose scews, • wheels/quick release axles for firm fit , • sufficient tire pressure, tire tread, •... - Page 9 2 General Information We generally recommend the use of the anti-tipper. When driving off of curbsides the anti- tipper must be deactivated. Overcome stairs only with the help of experienced helpers. For this, the anit-tipper must be deactivated. Only carry the wheelchair by holding the frame, never the seat shell, the push handles/push bail, the leg support and/or the foot plate/s! 90°...
-
Page 10: Transporting Without User
> 42°C Pelvic restraints (pelvice belts as positioning help) can be ordered as an option in the wheelchair configuration via the SORG order forms or by ordering via spare parts catalogues. The assembly is carried out by your retailer. In some cases, the product may interact with electromagnetic fields (e.g., anit-theft device in stores). - Page 11 2 General Information Corrosion protection The product is already designed for corrosion protection when selecting materials (for example: plastic, aluminum, stainless steel). All materials susceptible to corrosion are surface-treated and thus protected. Should the wheelchair get wet, it needs to thoroughly dry. Combination with products from other manufacturers The wheelchair may only be combined with the electrical auxiliary drives approved by the manufacturer.
-
Page 12: Handling
3.1 Handling rear wheels 3.1.1 General Indications By braking the wheels with the hand rims, friction heat occurs. Hand rim covers can expand from heat and can come off the hand rims. 3.1.2 Tire pressure The appropriate operating pressure can be found on the tire casing - usually 3-10 bar. -
Page 13: Double Hand Rim Wheels
3.1 Handling rear wheels 3.1.4 Double hand rim wheels Put on: 90° (3a) (3b) Remove: Proceed analogously in reverse order (2a) (2b) 2019-08-16 Instructions of use Mio Carbon (Design 2018) 13 of 32... -
Page 14: Handling Casters
3.2 Handling casters 3.2.1 General indications Incorrectly adjusted casters or driving too fast can causethe casters to flutter. At the first sign of flutter, slow down the drive immediatley and have the casters readjusted by a specialist retailer. 3.2.2 caster track lock on a taurus frame unlock: 90°... -
Page 15: Handling Push Aids
3.3 Handling push aids 3.3.1 General indications All height adjustable push aids are designed exclusively to push the occupant in their wheelchair - not to carry. Children cannot assess the pivoting range of the push aids and can hurt others while playing. -
Page 16: Push Handles
3.3 Handling push aids 3.3.2 push handles adjusting the height: (4a) (4b) putting on (remove: proceed analogously in reverse order): (4a) (4b) 16 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16... -
Page 17: Push Bail
3.3 Handling push aids 3.3.3 push bail adjusting the angle: 3.4 Handling leg support 3.4.1 General indications Types of leg supports and their handling: Model 1: All adjustments must be made a specialist retailer. 2019-08-16 Instructions of use Mio Carbon (Design 2018) 17 of 32... -
Page 18: Handling Brake
3.5 Handling brake 3.5.1 General indications Check the functionality of the brakes before each use! If the braking effect wears off, con- tact your retailer immediately. Possible impairments or malfunctions can be caused by: • dirty or incorrectly adjusted brakes, •... - Page 19 3.5 Handling brake lock: The use of the lock can lead to dangerous situations. An instructed attendant must super- vise at all times. First, put the Bowden cable brake in the wanted position (locked/ unlocked) and fixate this as follows: unlock: (1a) 2019-08-16...
-
Page 20: Drum Brake
3.5 Handlingbrake 3.5.3 drum brake brake: Uneven use of both brake levers creates cornering Clean the brake block of the drum brake wheels in short intervals with a soft brush. tighten: (2a) (2b) loosen: 20 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16... -
Page 21: Handling Anti-Tipper
3.6 Handling anti-tipper 3.6.1 General indications In the case of leg amputations, a wheel base extension, or at least an anti-tipper should be used to improve the tipping stability. A wheel base extension is not a replacement for an anti-tipper. activate: (2a) (2b) -
Page 22: Handling Head Rest
3.7 Handling head rest 3.7.1 General indications setting the distance: setting the height: 22 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16... -
Page 23: Handling Abduction Wedge
3.8 Handling abduction wedge 3.8.1 Allgemeine Hinweise Abduktionskeil setting the distance: setting the height: 3.9 Handling side truss pads 3.9.1 General indications open/close: 2019-08-16 Instructions of use Mio Carbon (Design 2018) 23 of 32... -
Page 24: Handling Outdoor-Front-End
3.10 Handling outdoor-front-end 3.10.1 General indications Please note the max. load of the wheelchair, this also applies to the outdoor- max. front-end. km/h mounting (demounting: In picture 4 proceed in opposite direction): 24 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16... -
Page 25: Handling Sun Shade
3.11 Handling sun shade 3.11.1 General indications The sun shade can heat up to 42° with strong sun light. Never carry the wheelchair over an obstacle by the sun shade. The sun shade does not protect against rain. fold up (fold out: proceed analogously in reverse order): take off (put on: proceed analogously in reverse order): 2019-08-16 Instructions of use Mio Carbon (Design 2018) -
Page 26: Repairs And Maintenance
4 Repair and maintenance 4.1 Repairs Repairs are to be done by your specialized retailer. 4.2 Spare parts Only original spare parts can be used! They are available at your medical supply store. The spare parts list can be downloaded at www.sorgrollstuhltechnik.de or can be reques- ted directly from us. -
Page 27: Reinstatement
4 Repair and maintenance 4.6 Reinstatement Before reuse, a full inspection according the the checklist must be carried out by a specialized retailer. All disinfection measures for reuse must be carried out according to a validated hygie- ne plan. 4.7 Disposal The wheelchair my only be disposed of with the approval of the benefactor. - Page 28 4 Repairs and maintenance Checklist yearly inspection (specialized retailer) Template (available for download at www.sorgrollstuhltechnik.de/downloadportal) Preparatory Work cleaning done Check: Frame, back, mounted parts and accessories checked for damage, bends, cracks and corrosion, all fixing screws checked for firm fit and completeness, casters and rear wheels as well as the associated attachments checked for good condition, functionality and proper running qualities, spokes checked for firm fit and completeness,...
-
Page 29: Technical Data
5 Technical data 5.1 Data and measurements Model: Mio Carbon (Design 2018) Type: 1673 All measurements ±5% Measurements Comment Indication 20-mm-intervals 180 to 300 mm +20 mm growable seat width (SW) 20-mm-intervals 180 to 300 mm ± 40 mm growable seat depth (SD) 50-mm-intervals 175 to 350 mm +50 mm growable... -
Page 30: Meaning Of Labels
5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: manufacturer address... -
Page 31: Verification Of Yearly Inspection
6 Verification of yearly inspection Documentation yearly inspection For safety reasons and to maintain product liability, an inspection by your retailer is required at least once a year. Serial number: yearly inspection conducted according to stamp: check list (year 1) comments: Date/ Retailer's signature yearly inspection conducted according to... - Page 32 Instructions for use Mio (Design 2018) SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Tel +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
