3.2 Assembly group seat
3.2.3 Changing the seat width

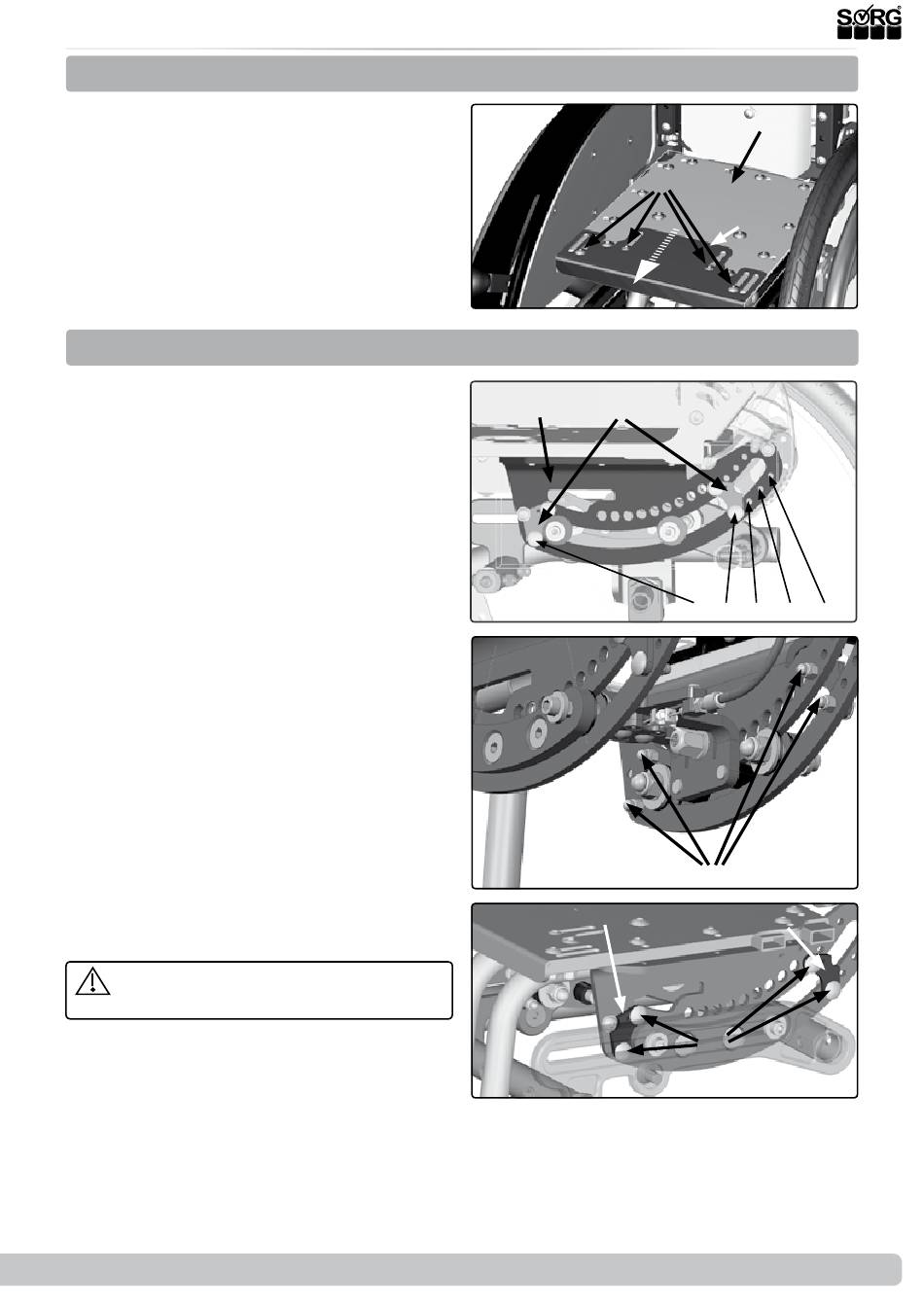

(1) To extend the seat board (A) with the seat
extension (B):
•
Loosen the four screws (C),
•
pull the seat extension (B) as far forward
as needed
•
and retighten the screws (C).
3.2.4 Blocking the tilting
(2) Changing the maximum tilt
The measurement of the maximum tilting
forward and/or backward can (also afterwards)
be reduced by adding so called tilting blockers
(B) on to the front and/or back of the tilting
slide (A).
With this, you ensure that you can only tilt
forward to a maximum of 0° and backward only
to a maximum of +15°,+20°,+25° or +30°.
To change/set the tilting blockage, secure the
wheelchair from rolling away and remove the
driving wheels.
•
(3) Turn the wheelchair upside down so
that it is easier to work on the bottom.
•
If necessary, you must tilt the seat to
reach the "zero degrees position" (see
picture 2) easier.
•
Remove, if necessary, all four screws (A)
on each side,
•
(4) displace the tilting blocker(s) (A) in
the position wanted (measurements see
picture 2),
•
place the lock screws (B) in the tilting
blockers from the outside
•
and tighten these with the cap nuts (3A).
Be sure that the blockers are attached
the same on both sides.
2019-07-16
(1)
(2)
(3)
(4)
Service Record Mio Move
(C)
(A)
(B)
maximal 0° +15° +20° +25° +30°
(A)
(A)
(A)
(B)
(A)
(B)
